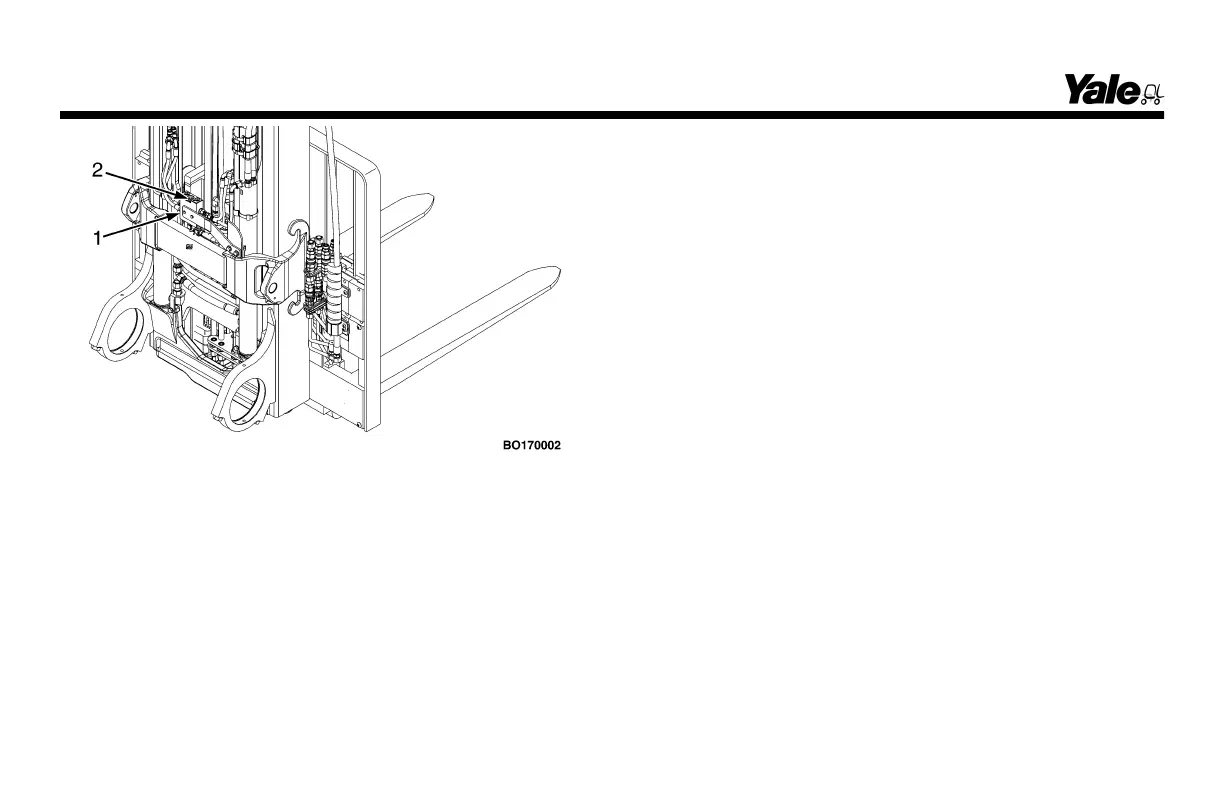

1. PRESSURE RELIEF VALVE
2. PLUNGER BUTTON
Figure 15. Quick-Disconnect Procedure
4. Disconnect the Quick-Disconnect hose connectors.
NOTE: Step 5 through Step 7 is to be used for lift trucks
equipped with manual hydraulics.
5. Turn the key switch or keyless switch to the OFF position.
6. Disconnect the negative terminal of the battery.
7. Move the manual hydraulic levers forward and backward
to relieve the system hydraulic pressure.
8. Disconnect the Quick-Disconnect hose connectors.
Connecting Attachment Hydraulic Quick-
Disconnect Hoses
NOTE: Step 1 through Step 4 is to be used for lift trucks
equipped with manual hydraulics.
1. Connect the Quick-Disconnect hose connectors.
2. Connect the negative terminal of the battery.
3. Turn the key switch or keyless switch to the ON position
and start the engine.
4. Move the manual hydraulic levers forward and backward,
and check the hydraulic system for leaks.
NOTE: Step 5 through Step 8 is to be used for lift trucks
equipped with electro-hydraulics.
5. Connect the Quick-Disconnect hose connectors.
6. Connect the negative terminal of the battery.
7. Turn the key switch or keyless switch to the ON position
and start the engine.
Operating Procedures
104
