Parking Brake
Make sure the service brakes are adjusted and the operation
of the automatic adjuster mechanism is correct before the
parking brake is adjusted.
Lift trucks with a Foot Directional Control pedal:
A switch energizes the seat warning circuit when the hand
lever is released. This switch puts the transmission in NEU-
TRAL by de-energizing the direction solenoid. There is also
a switch on the left-hand side of bracket. This switch prevents
engine from starting unless parking brake is applied.
NOTE: Make sure parking brake is released before making
adjustment.
To adjust the parking brake, do the following:
1. Turn the adjustment knob as shown in Figure 35. Do not
tighten the adjustment so that the brake is applied when the
lever is released. The lever for the parking brake has a lock.
Use your thumb or finger to release the lock on the lever when
the parking brake is released.
2. For burnished brakes, test the operation of the parking
brake. The lift truck, with a capacity load, must not move
when parking brake is applied on a 15% grade. A 15% grade
is a slope that increases 1.5 m in 10 m (1.5 ft increase in
10 ft).

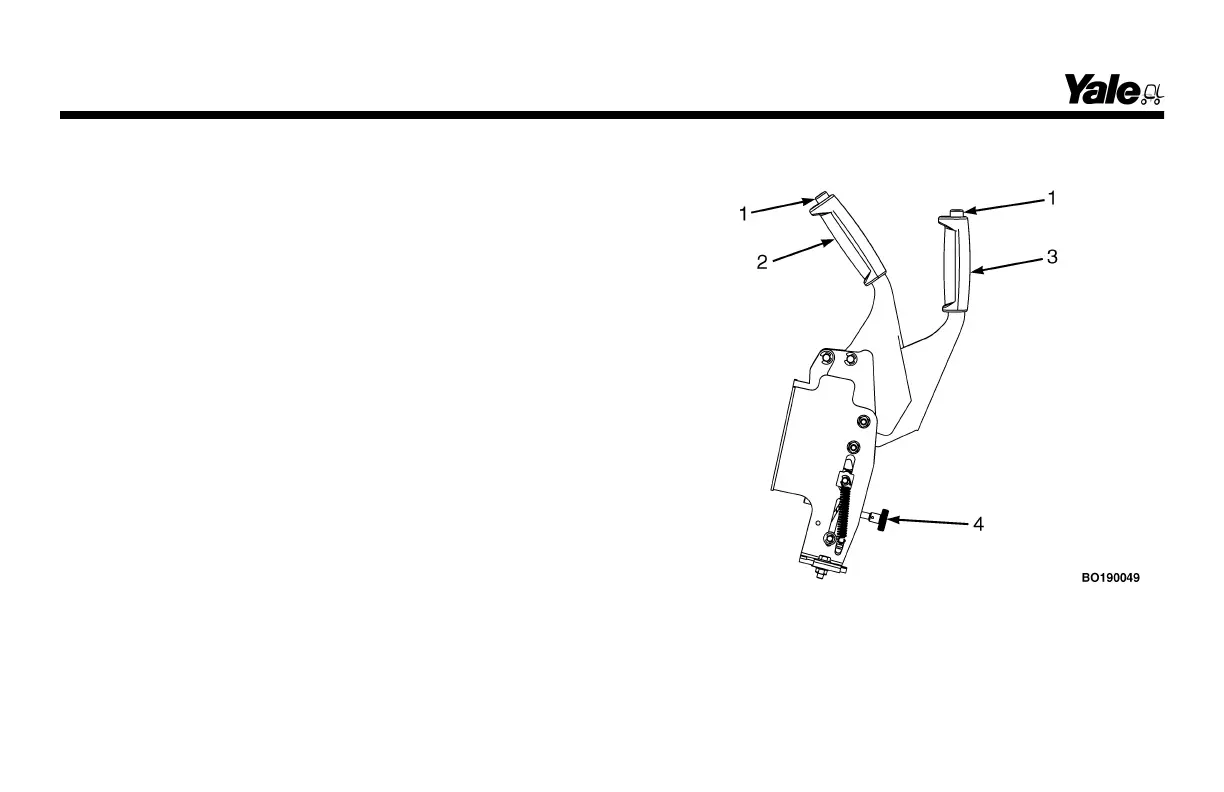

1. LOCK BUTTON RELEASE
2. OFF POSITION
3. ON POSITION
4. ADJUSTMENT KNOB
Figure 35. Parking Brake Adjustment
Maintenance
160
