4. While the cage is holding
the tire on the wheel rim,
install the lock ring. Use a tire
tool to make sure the lock ring
is in the correct position.
Dual Drive Wheels,
Install
NOTE: Some lift trucks can
have dual drive wheels. The following procedures describe
the steps to install the dual sets of wheels.

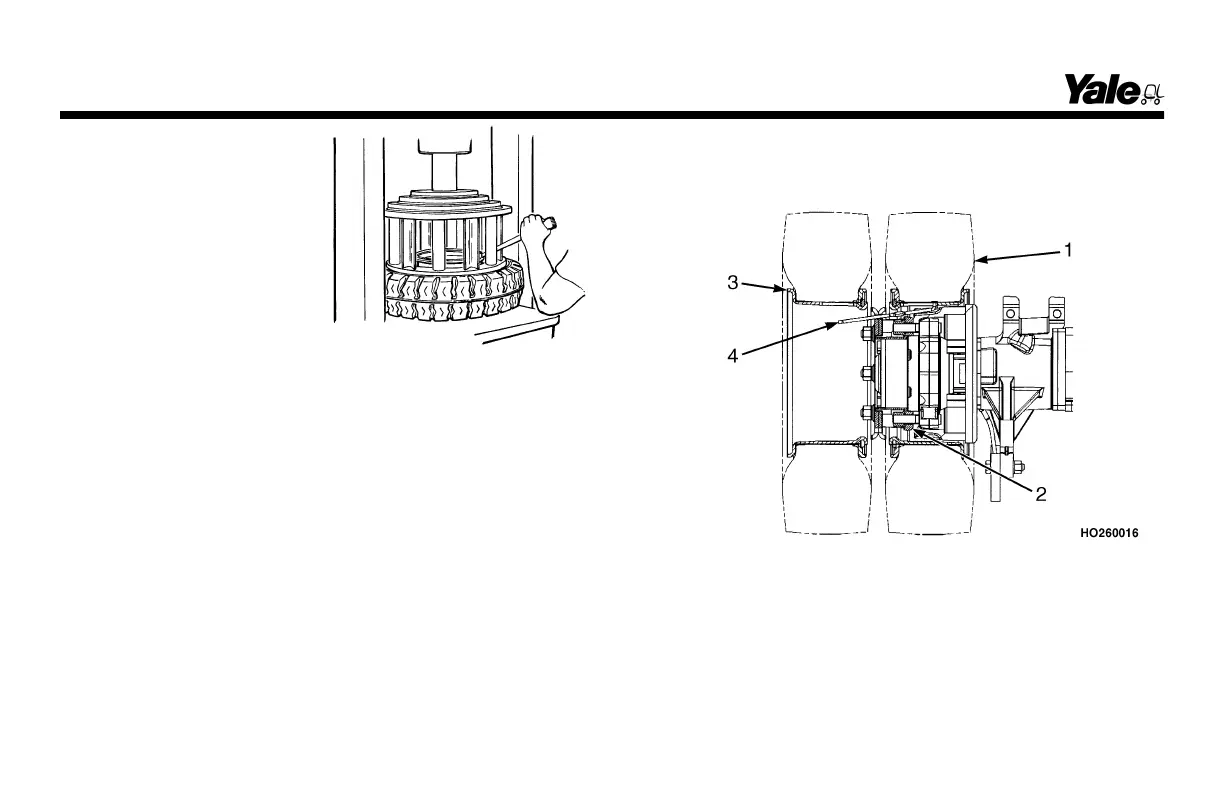

1. See Figure 42. Install the inner wheel on the hub. Tighten
the nuts to a torque of 450 to 500 N•m (332 to 369 lbf ft) for
the drive wheel nuts and 155 to 175 N•m (114 to 129 lbf ft)
for steer wheel nuts. If two-piece wheels are installed, make
sure the nuts that fasten the rim halves together are toward
the brake drum when they are installed.
2. Install the spacer to the axle shaft. Tighten the nuts to
98 N•m (72 lbf ft).
3. Install the outer wheel on the spacer. Tighten the nuts to
a torque of 450 to 500 N•m (332 to 369 lbf ft) for the drive
wheel nuts and 155 to 175 N•m (114 to 129 lbf ft) for steer
wheel nuts. If the wheels are the two-piece rims, make sure
the nuts that fasten the rim halves together are toward the
brake drum when they are installed.
1. INNER WHEEL
2. ADAPTER ASSEMBLY
3. OUTER WHEEL
4. EXTENSION, AIR VALVE
Figure 42. Dual Drive Wheels Installation
Maintenance
192
