NOTE: TUBELESS TIRES ARE MOUNTED ON WHEEL TYPES SHOWN IN ILLUSTRATIONS B OR D.
A. TWO-PIECE WHEEL
B. OPTIONAL RIM ASSEMBLY
C. THREE-PIECE WHEEL
D. FOUR-PIECE WHEEL
1. WHEEL RIM
2. SIDE FLANGE
3. LOCK RING
4. FLANGE SEAT

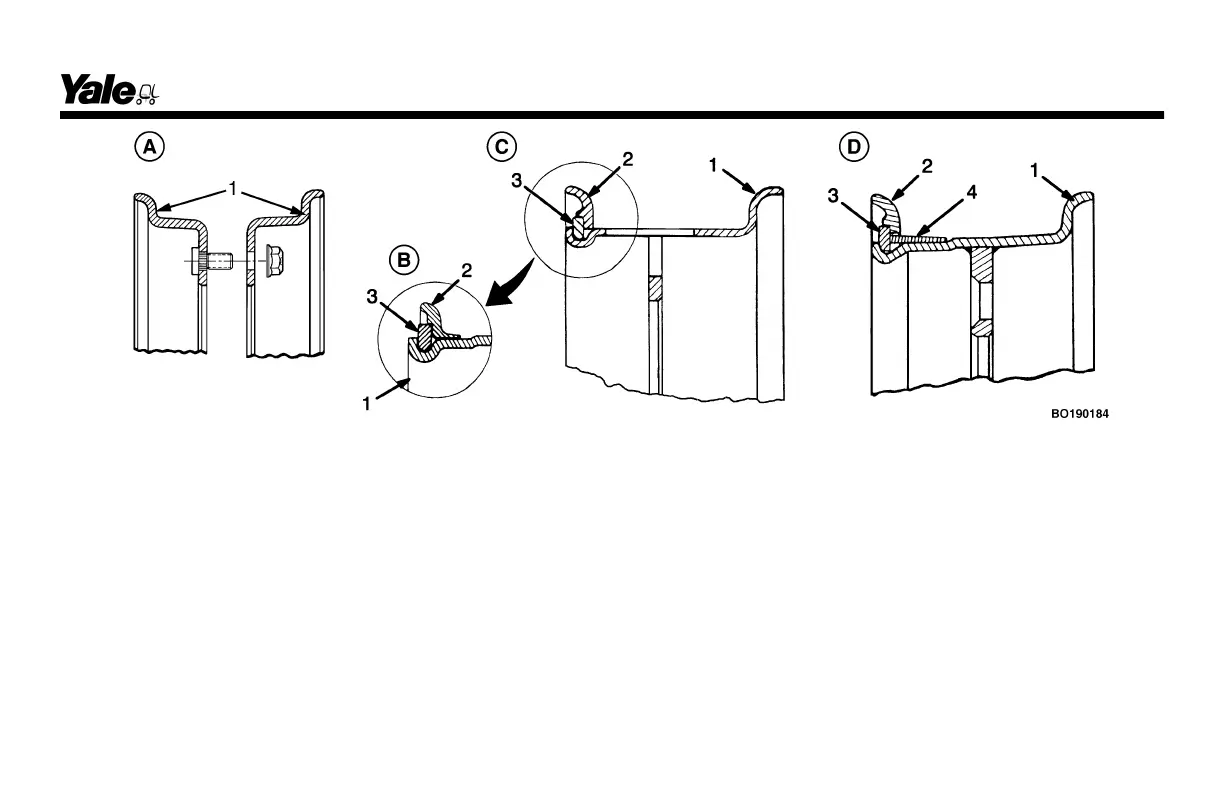

Figure 39. Types of Pneumatic Wheels
