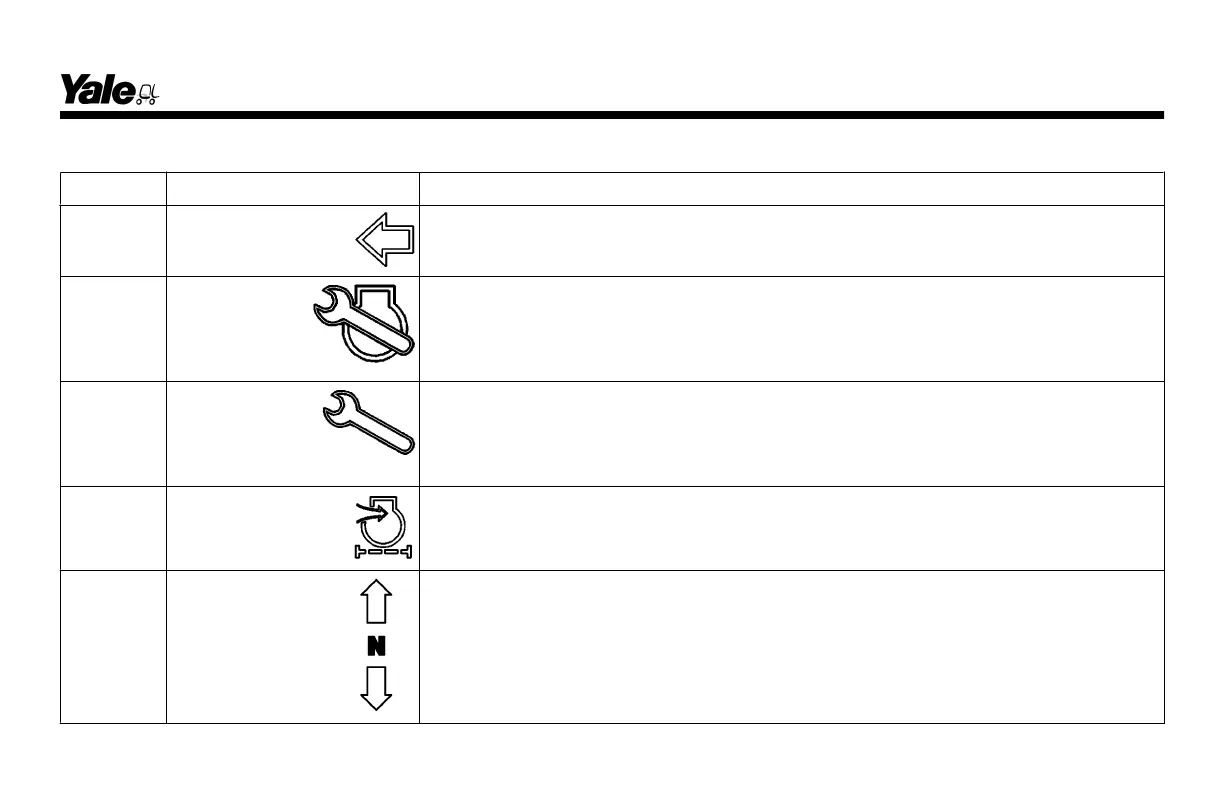

Table 2. Instruments – Warning and Indicator Lights (See Figure 8)
Item No. Item Function
1 Indicator Light Left
Turn Signal
This green indicator will blink on and off when the left turn signal is selected. Not on
at Start Check.
2 Warning Light,
Engine
Malfunction
Indictor
This amber indicator is on when the system is in the ON state, and turns off as the
RUN state is entered. This indicator will also illuminate when an engine related fault
has occurred. Not on at Start Check.
3 Warning Light,
System
Malfunction
Indicator
This amber light will illuminate when a fault that is not engine related occurs.
4 Indicator Light Air
Filter Restriction
If the lift truck is equipped with the premium monitoring package, this amber Air Filter
Restriction light will illuminate when the air filter restriction switch senses a restriction
in the air filter.
5 Indicator Lights
Direction and
Transmission
Lights
The green direction lights will illuminate when the operator selects the direction of
travel. When the transmission is put into NEUTRAL, the green N illuminates and
stays lit until transmission is not in NEUTRAL.
