3-29
Outboard Rigging Guide - 2001 Battery Installations

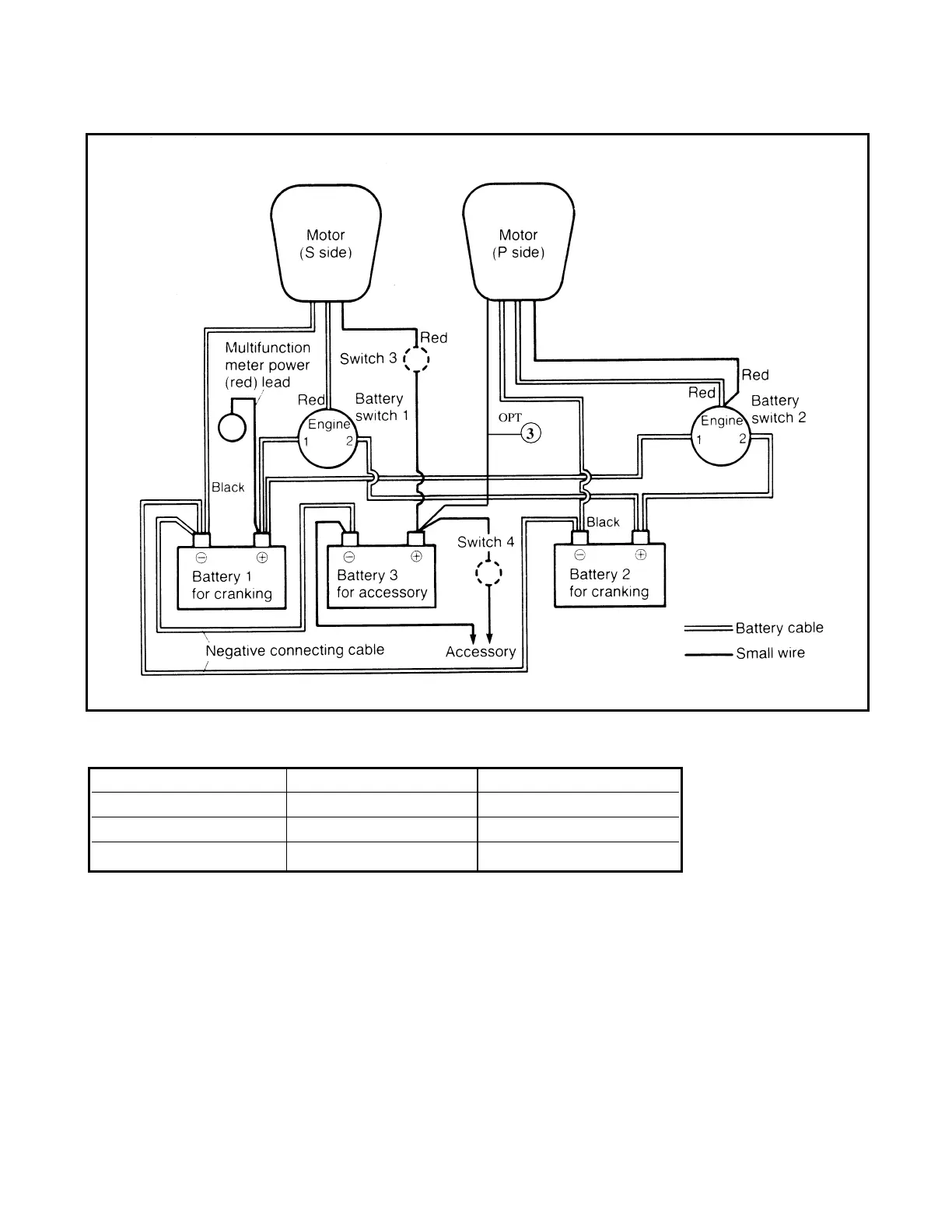

BATTERY SWITCH SELECTION
NOTE:
1. SWITCH POSITION “BOTH” SHOULD NOT BE USED FOR BACK-UP CRANKING. If Battery
1 is discharged and the “BOTH” position is selected, then Battery 2 will discharge into Battery 1.
2. Switch #3 is not required, the battery isolator on the motor will prevent current from flowing to the
electrical components on the engine, even if the small wire remains connected to the battery.
However, the Switch #4 can be installed to shut off electrical power to the accessories.
3 Optional: Isolator lead 3 from both engines could be hooked to the accessory battery.
MODE SWITCH #1 POSITION SWITCH #2 POSITION
SYSTEM OFF OFF OFF
NORMAL OPERATION BATTERY 1 BATTERY 2
BACK-UP CRANKING BATTERY 2 BATTERY 1
Twin Engine
