Outboard Rigging Guide - 2001

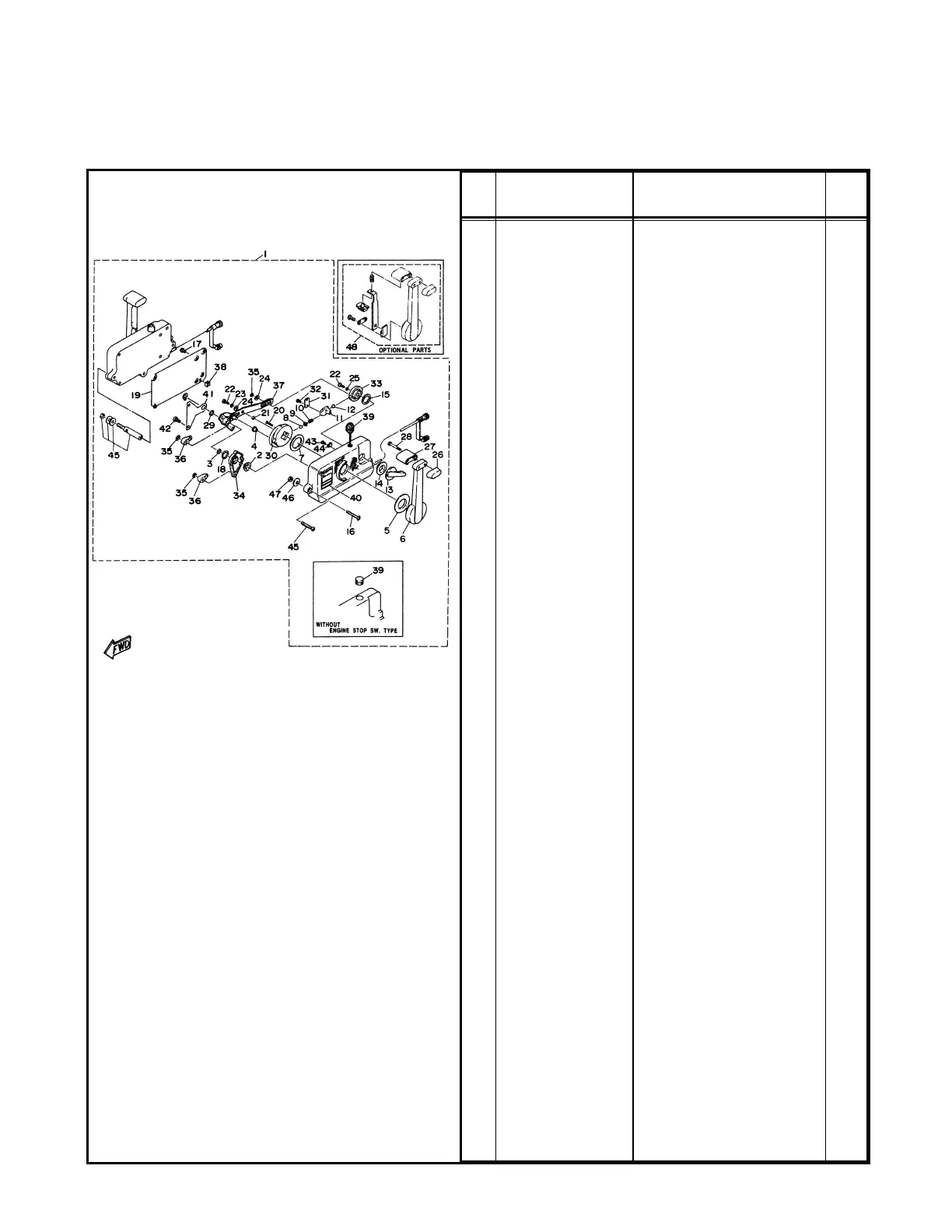

701 REMOTE CONTROL ASSEMBLY
REF
NO PART NUMBER DESCRIPTION QTY.
1 701-48101-51-00 Remote Control Ass’y1
2 701-48235-00-0 • Bushing 1
3 701-48197-10-00 • Washer, Wave 1
4 701-48252-00-00 • Roller, Cam 1
5 701-48234-00-00 • Bushing 1 1
6 701-48221-00-00 • Lever, Control 1
7 701-48196-11-00 • Washer, Wave 1
8 701-48236-00-0 • Roller, Detent 1
9 702-48237-00-00 • Adaptor 1
10 702-48238-00-00 • Spring, Detent 1
11 701-48249-00-00 • Adaptor, Spring 1
12 701-48248-00-00 • Roller, Free Accel. 1
13 701-48152-11-00 • Knob, Free Accel. (Right) 1
701-48152-20-00 • Knob, Free Accel. (Left) 1
14 701-48243-00-00 • Bushing 1
15 701-48198-10-00 • Washer, Wave 1
16 701-48198-00-00 • Scrwe 3
17 98580-05010-00 • Screw, Pan Head 4
18 701-48268-00-00 • Spacer 1
19 701-48213-00-00 • Back Plate 2 1
20 98780-06025-00 • Screw Flat Head 2
21 701-48255-00-00 • Collar 1
22 97080-06018-00 • Bolt 2
23 702-48288-00-00 • Washer, Plain 1
24 701-48246-00-00 • Spacer 2
25 92990-06300-00 • Washer, Internal Tooth 1
26 701-48229-00-00 • Grip, Control Lever 1
27 701-48222-00-00 • Grip, Control Lever 1
28 98580-05555-00 • Screw, Pan Head 2
29 701-48266-00-00 • Spacer 1
30 701-48232-00-00 • Gear 1
31 701-48189-11-00 • Retainer 1
32 98580-05010-00 • Screw, Pan Head 2
33 701-48153-12-00 • Shaft, Free Accel. 1
34 701-48271-00-00 • Arm, Shift (Right) 1
701-48271-10-00 • Arm, Shift (Left) 1
35 93430-06024-00 • Circlip 3
36 703-48345-01-00 • Cable End, Rem. Control 2 2
37 701-48261-00-00 • Arm, Throttle (Right) 1
701-48261-20-00 • Arm, Throttle (Right) Push 1
38 701-48358-00-00 • Anchor, Cable 1
39 701-82550-50-00 • Engine Stop Switch Ass’y. 1
701-48138-50-00 • Cap 1
40 701-48126-00-00 • Graphic 1
41 701-48133-00-00 • Plate, Link 1
42 98580-05020-00 • Screw, Pan Head 2
43 701-48283-00-00 • Screw 1
44 701-82594-00-00 • Clamp 1
45 701-48291-00-00 • Attachment 1
46 701-48287-00-00 • Washer 3
47 95380-06600-00 • Nut 1
48 701-48280-00-00 Neutral Lock Kit 1
701 Remote Control & Pull/Manual
Assembly (701-48101-51-00)
