4-13
Outboard Rigging Guide - 2001 703 Remote Control Ass’y.
Installation
of Remote Control Cables

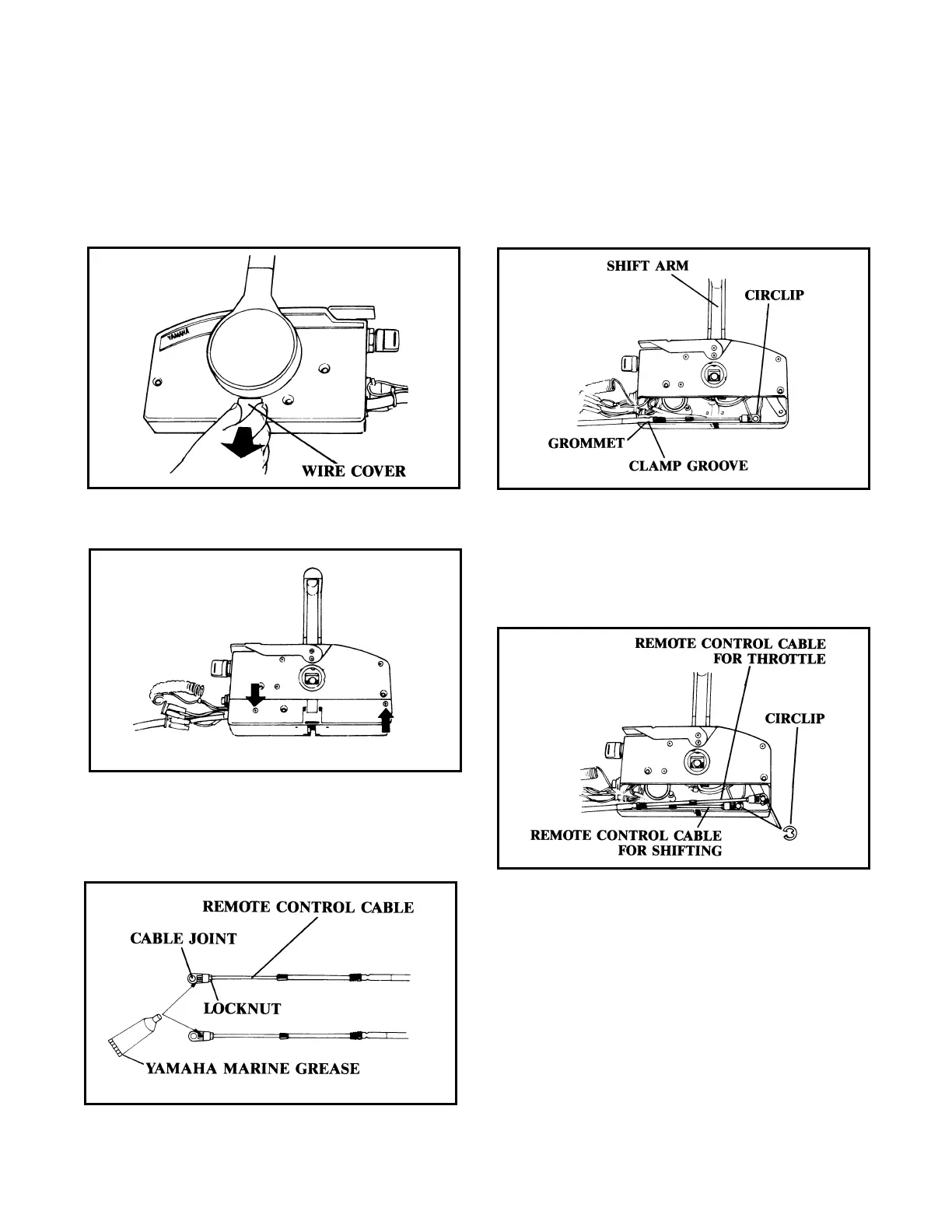

1. Pinch the wire cover with your fingers and
pull it off.
2. Loosen the two screws as shown and remove
the lower back panel.
3. For installation of cable joints, see page 4-47.
Tighten the lock nuts before installing the
cable joints, apply Yamaha Marine Grease to
the threaded holes in the cable joints.
4. Insert the remote control cable for shifting
into the housing clamp so that the groove on
its end fits over the ridge in the clamp. Fit the
cable joint over the pin on the end of the shift
arm and lock it with a circlip.
5. Fit the grommet in the clamp groove as
shown in the previous illustration.
6. Connect the remote control cable for the
throttle to the throttle arm of the control in
the same way as the shift cable.
7. Reinstall the lower back panel with the two
screws and replace the wire cover.
