Yamaha 684CS - 704 Binnacle Mount Remote Control Assemblies

4-18
Outboard Rigging Guide - 2001
704 BINNACLE MOUNT REMOTE CONTROL ASSEMBLIES
REF
NO PART NUMBER DESCRIPTION QTY.
1 704-48205-13-00 Remote Control Ass’y
Single 1
2 98580-05016-00 • Screw, Pan Head 6
3 EL8-48251-00-00 • Plate, Cam 1
4 704-48265-00-00 • Shaft, Friction 1
5 701-48246-00 • Spacer 1
6 93430-06024-00 • Circlip 3
7 92990-10600-00 • Washer, Plate 1
8 EL8-48259-00-00 • Circlip 2
9 704-48262-00-00 • Shaft, Throttle 1
10 704-48264-00-00 • Throttle, Friction 1
11 704-48266-00-00 • Spacer 1
12 704-82540-00-00 • Neutral Switch Ass’y1
13 98580-03014-00 • Screw, Pan Head 2
14 EL8-48281-00-00 • Screw 1
15 704-48215-00-00 • Graphic 1
16 704-48281-00-00 • Screw 1
17 98580-05525-00 • Screw, Pan Head 2
18 704-48261-00-00 • Arm, Throttle 1
19 EL8-48191-00-00 • Washer 1 1
20 98580-05540-00 • Screw, Pan Head 4
21 97395-06018-00 • Bolt 3
22 703-48345-01-00 • Cable End,
Remote Control 2 2
23 704-48287-00-00 • Washer 4
24 95380-05600-00 • Nut 4
25 EL8-48271-00-00 • Arm, Shift 1
26 EL8-48127-00-00 • Screw 1 9
27 703-48358-00-00 • Anchor, Cable 1
28 EL8-48231-00-00 • Housing, Gear 1
29 EL8-48241-00-00 • Arm, Drive 1
30 EL8-48254-00-00 • Stopper, Throttle Adjust 1
31 98780-06020-00 • Screw, Flat Head 2
32 EL8-48158-00-00 • Spring 1 1
33 98580-04006-00 • Screw, Pan Head 1
34 98780-05018-00 • Screw, Flat Head 4
35 EL8-48244-00-00 • Spring, Free Accel. 1
36 EL8-48245-00-00 • Plate, Lock 1
37 703-48263-00-00 • Bushing 1
38 704-48222-00-00 • Grip, Control Lever 1

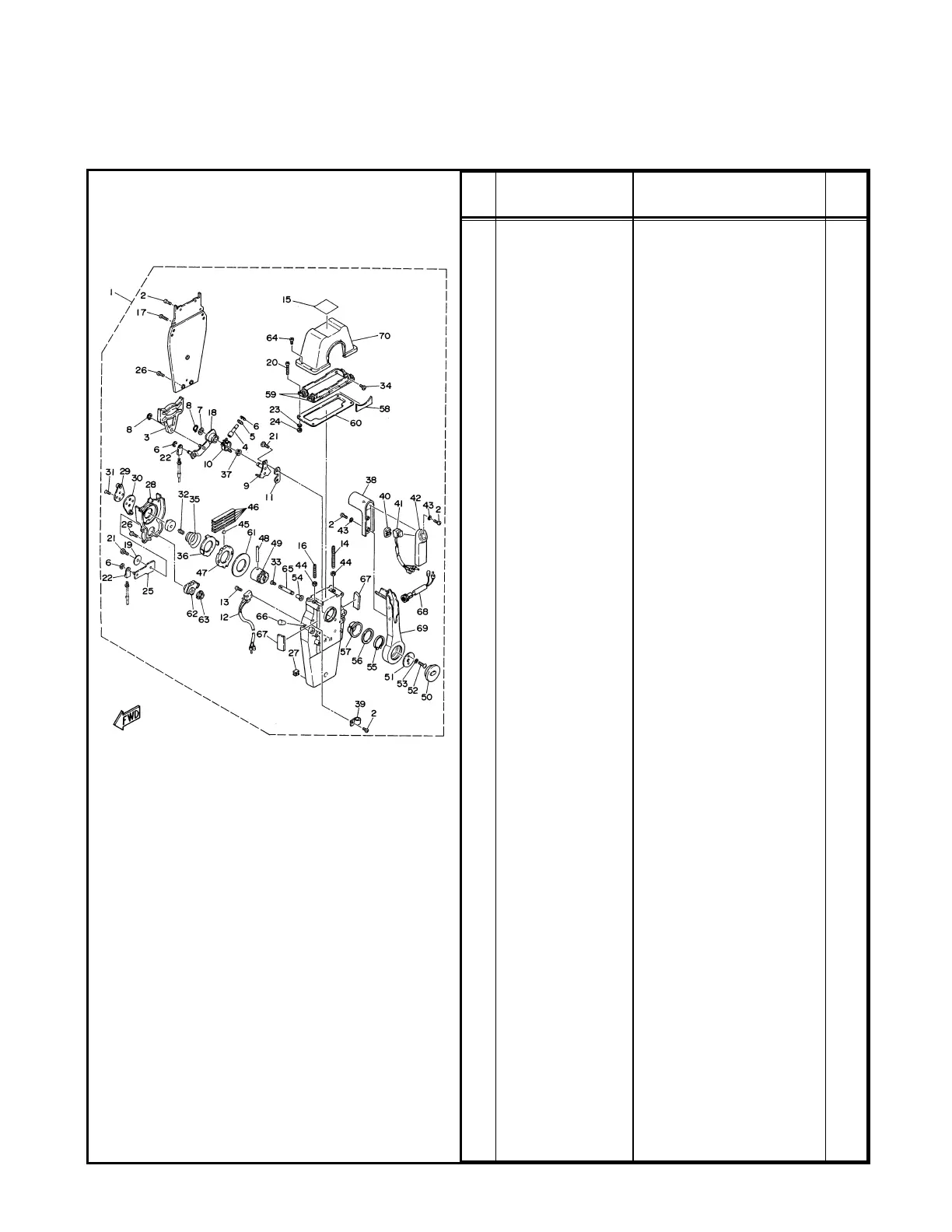

704 Single Binnacle Mount Remote
Control Assembly (704-48205-13-00)
