Outboard Rigging Guide - 2001 704 Binnacle Mount Remote Control Ass’y.

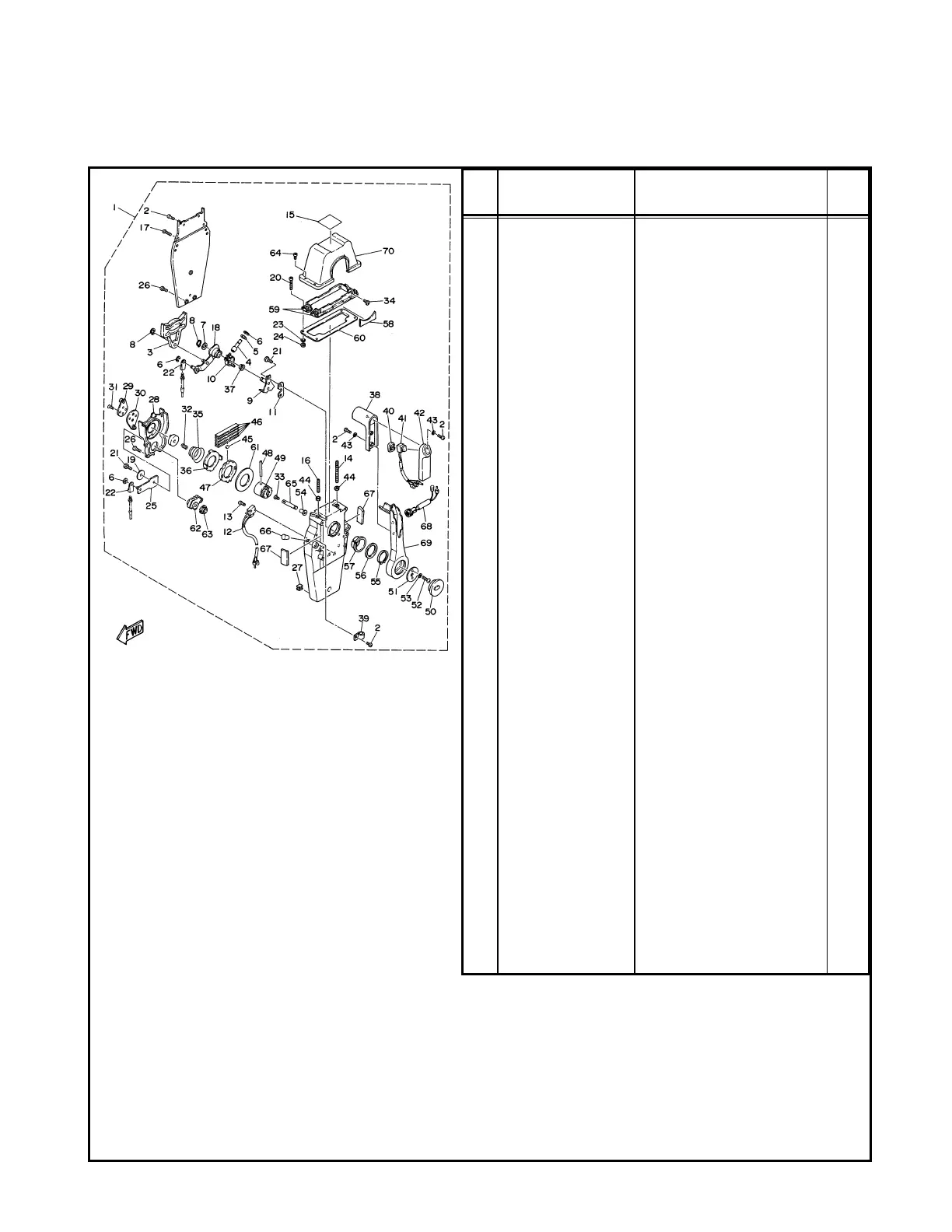

704 Single Binnacle Mount Remote Control Assembly (704-48205-13-00) – Continued
REF
NO PART NUMBER DESCRIPTION QTY.
39 704-82594-00-00 • Clamp 1
40 704-48228-00-00 • Holder, Switch 1
41 704-82563-A0-00 • Trim & Tilt Switch Ass’y1
42 704-48229-00-00 • Grip, Control Lever 1
43 92990-05300-00 • Washer, Internal Tooth 3
44 95380-06600-00 • Nut 2
45 701-48248-00-00 • Roller, Free Accel. 1
46 703-48238-00-00 • Spring, Detent 5
47 EL8-48232-00-00 • Gear 1
48 EL8-48164-00-00 • Pin 2 1
49 704-48242-00-00 • Shift, Drive 1
50 704-48225-00-00 • Cover 1
51 704-48192-00-00 • Washer 2 1
52 97890-06018-00 • Screw, Pan Head 2
53 92990-06300-00 • Washer, Internal Tooth 2
54 702-48263-00-00 • Bushing 1
55 EL8-48279-00-00 • Circlip 2 1
56 704-48193-00-00 • Washer 3 1
57 EL8-48234-00-00 • Bushing 1 1
58 704-48219-00-00 • Cover, Lead 1
59 704-48144-00-00 • Plate, Stopper 2 2
60 704-48176-00 • Grommet 1
61 703-48192-00-00 • Washer 2 1
62 EL8-48233-00-00 • Gear 2 1
63 703-48235-00-00 • Bushing 1
64 704-48282-00-00 • Screw 4
65 EL8-48153-10-00 • Shaft, Free Accel. 1
66 704-48166-00-00 • Plug 1
67 704-48284-00-00 • Grommet 2
68 704-82541-10-00 • Wire, Lead 1
69 704-48221-00-00 • Lever, Control 1
70 704-48119-00-00 • Cover 1
To Next Page
