Outboard Rigging Guide - 2001 704 Binnacle Mount Remote Control Ass’y.

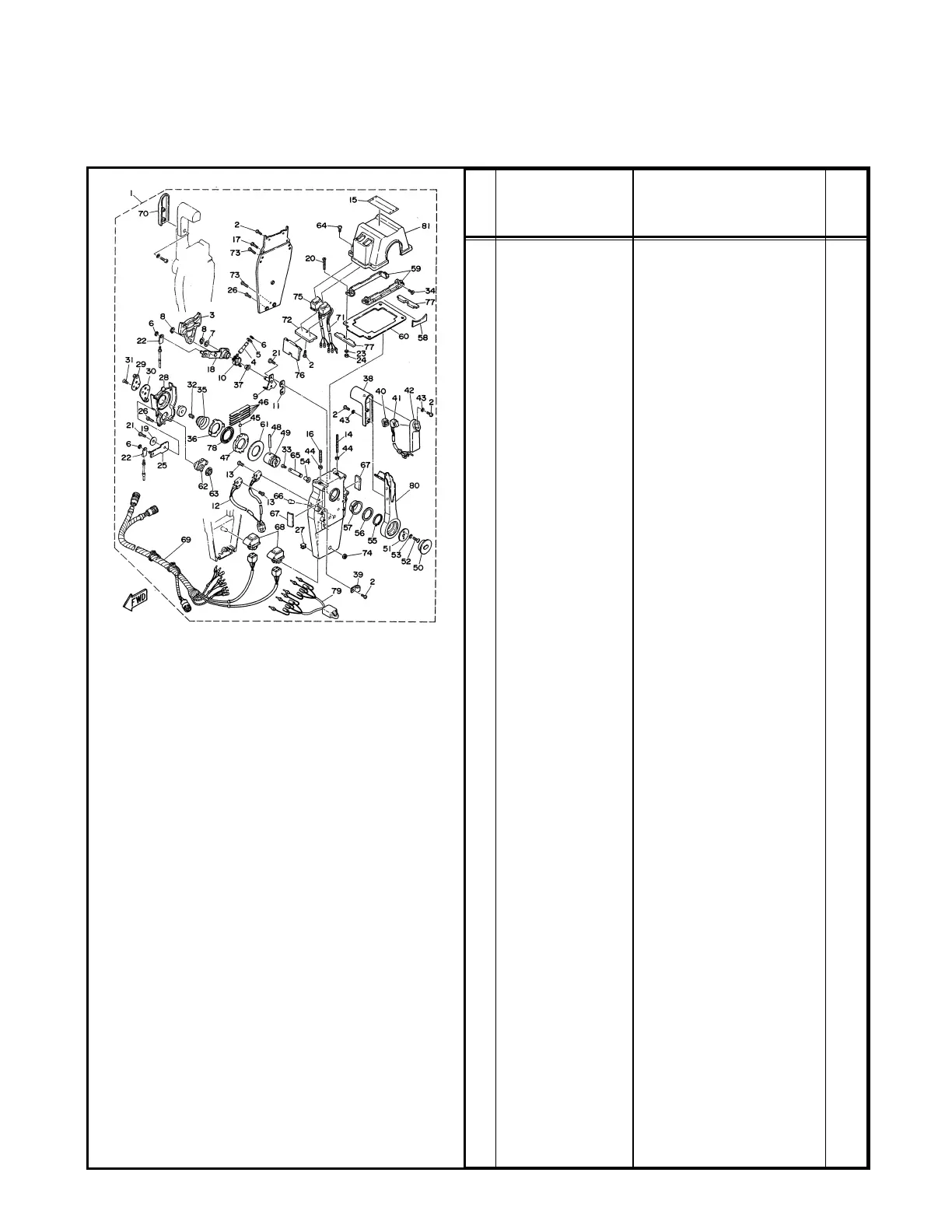

704 DUAL BINNACLE MOUNT REMOTE CONTROL ASSEMBLY (704-48205-31-00)
REF
NO PART NUMBER DESCRIPTION
QTY.
1 Remote Control Ass’y
Dual 1
2 98580-05016-00 • Screw, Pan Head 12
3 EL8-48251-00-00 • Plate, Cam 2
4 704-48265-00-00 • Shaft, Friction 2
5 701-48246-00-00 • Spacer 2
6 93430-06024-00 • Circlip 8
7 92990-10600-00 • Washer, Plate 2
8 EL8-48259-00-00 • Circlip 4
9 704-48262-00-00 • Shaft, Throttle 2
10 704-48264-00-00 • Throttle, Friction 2
11 704-48266-00-00 • Spacer 2
12 6XE-82540-10-00 • Neutral Switch Ass’y1
13 6A5-48129-10-00 • Screw, Pan Head 4
14 EL8-48281-00-00 • Screw 2
15 704-48215-10-00 • Graphic 1
16 704-48281-00-00 • Screw 2
17 98580-05525-00 • Screw, Pan Head 4
18 704-48261-00-00 • Arm, Throttle 2
19 EL8-48191-00-00 • Washer 1 2
20 98580-05540-00 • Screw, Pan Head 4
21 97080-06018-00 • Bolt 6
22 703-48345-01-00 • Cable End,
Remote Control 2 4
23 704-48287-00-00 • Washer 4
24 95380-05600-00 • Nut 4
25 EL8-48271-00-00 • Arm, Shift 2
26 EL8-48127-00-00 • Screw 1 16
27 703-48358-00-00 • Anchor, Cable 2
28 EL8-48231-00-00 • Housing, Gear 2
29 EL8-48241-00-00 • Arm, Drive 2
30 EL8-48254-00-00 • Stopper, Throttle Adjust 2
31 98780-06020-00 • Screw, Flat Head 4
32 EL8-48158-00-00 • Spring 1 2
33 98580-04006-00 • Screw, Pan Head 2
34 98780-05018-00 • Screw, Flat Head 4
35 EL8-48244-00-00 • Spring, Free Accel. 2
36 EL8-48245-00-00 • Plate, Lock 2
37 703-48263-00-00 • Bushing 2
38 704-48222-00-00 • Grip, Control Lever 2
39 704-82594-00-00 • Clamp 1
40 704-48228-00-00 • Holder, Switch 1
41 704-82563-G0-00 • Trim/Tilt Switch Ass’y1
