Outboard Rigging Guide - 2001 704 Binnacle Mount Remote Control Ass’y.

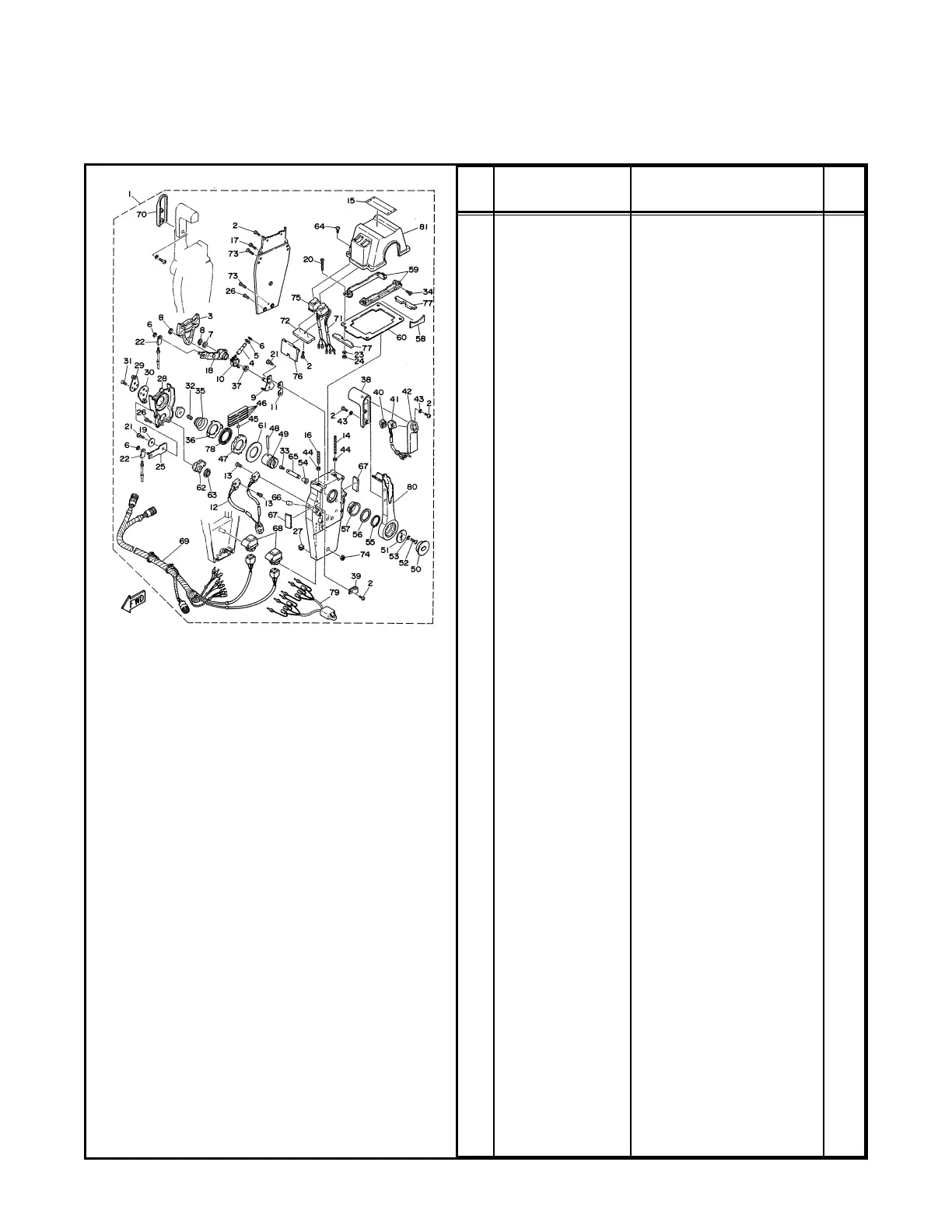

704 Dual Binnacle Mount Remote Control Assembly (704-48205-31-00) - Continued
REF
NO PART NUMBER DESCRIPTION QTY.
42 704-48229-00-00 • Grip, Control Lever 1
43 92990-05300-00 • Washer, Internal Tooth 6
44 95380-06600-00 • Nut 4
45 701-48248-00-00 • Roller, Free Accel. 2
46 703-48238-00-00 • Spring, Detent 10
47 EL8-48232-00-00 • Gear 2
48 EL8-48164-00-00 • Pin 2 2
49 704-48242-00-00 • Shift, Drive 2
50 704-48225-00-00 • Cover 2
51 704-48192-00-00 • Washer 2 2
52 97880-06018-00 • Screw, Pan 4
53 92990-06300-00 • Washer, Internal Tooth 4
54 702-48263-00-00 • Bushing 2
55 EL8-48279-00-00 • Circlip 2 2
56 704-48193-00-00 • Washer 3 2
57 EL8-48234-00-00 • Bushing 1 2
58 704-48219-00-00 • Cover, Lead 2
59 704-48144-00-00 • Plate, Stopper 2 2
60 704-48176-10-00 • Grommet 1
61 703-48192-00-00 • Washer 2 2
62 EL8-48233-00-00 • Gear 2 2
63 703-48235-00-00 • Bushing 2
64 704-48282-00-00 • Screw 4
65 EL8-48153-10-00 • Shaft, Free Accel. 2
66 704-48166-00-00 • Plug 2
67 704-48284-00-00 • Grommet 4
68 704-81950-00-00 • Relay Ass’y1
69 704-82590-00-00 • Wire Harness Ass’y1
704-82590-10-00 • Wire Harness Ass’y1
70 704-48229-10-00 • Grip, Control Lever 1
71 704-82563-E0-00 • Trim/Tilt Switch Ass’y1
72 704-48228-10-00 • Holder Switch 1
73 98580-05555-00 • Screw, Pan Head 3
74 704-48156-00-00 • Nut 1 1
75 704-82563-F0-00 • Trim/Tilt Switch Ass’y1
704-82563-E0-00 Trim/Tilt Switch Ass’y1
(704-48207-31)
76 704-48285-00-00 • Grommet 2 1
77 704-48286-00-00 • Grommet 3 2
78 704-87107-00-00 • Plate, Shift 2
79 704-87107-00-00 • Condenser Ass’y1
(704-48207-31)
80 704-48221-00-00 • Lever Control 2
81 704-48119-20-00 • Cover 1
