6-13
Outboard Rigging Guide - 2001 F25 Tiller Handle Kit

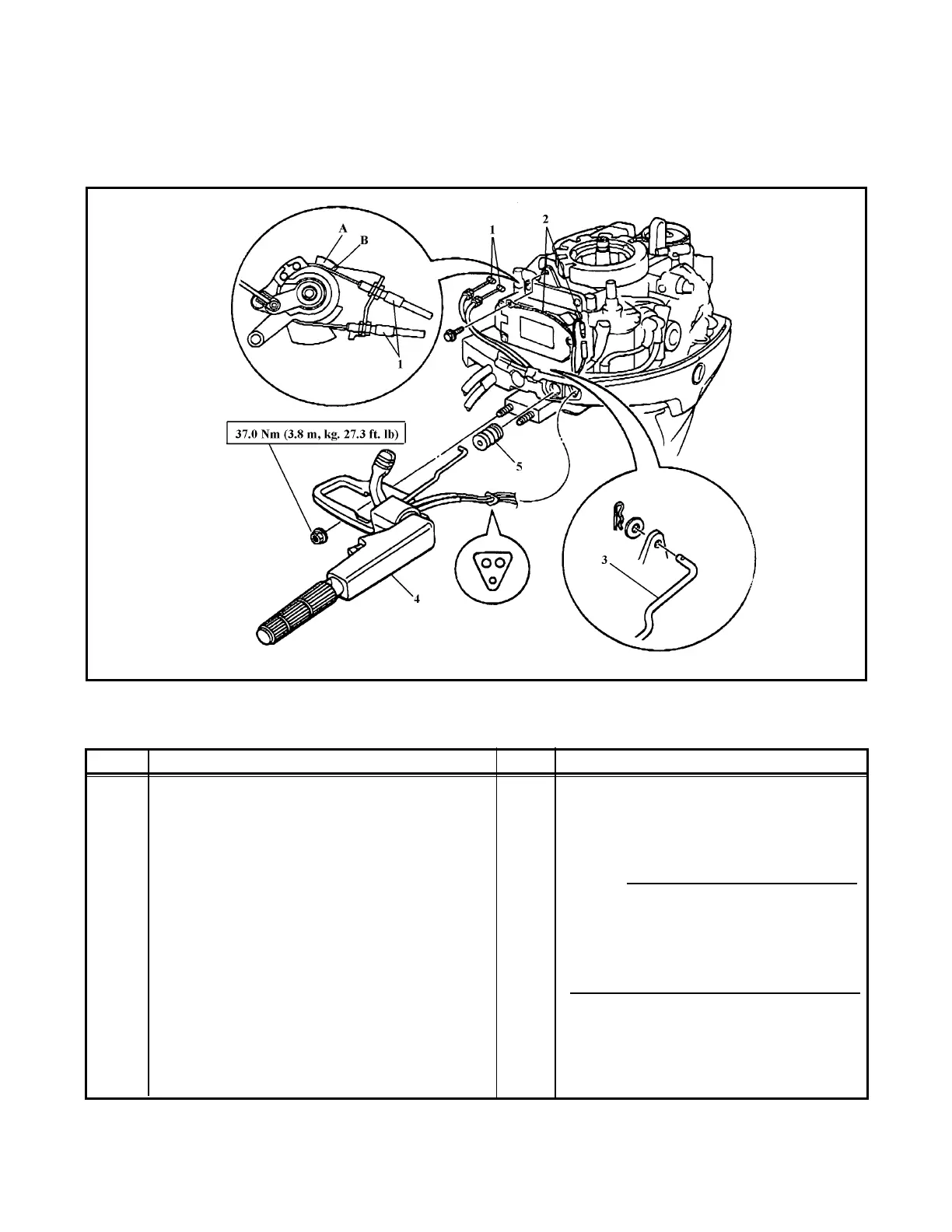

F25 STEERING HANDLE
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
STEP PROCEDURE/PART NAME QTY. SERVICE POINTS
STEERING HANDLE REMOVAL
Follow the “Step” order for removal.
Flywheel magneto cover ass’y. Refer to “FLYWHEEL MAGNETO”
in Chapter 5.
1 Throttle Cable 2 NOTE:
When adjusting the Throttle Cables, make
sure the throttle control cam stopper a
touches the bracket stopper b (when the-
throttle is fully-opened) and then tighten
2 Engine Stop Switch Lead 1 the locknuts.
3 Shift Link Rod
4 Steering Handle Ass’y. 1
5 Grommet 1
1
Reverse the removal steps for installation.
