6-14
Outboard Rigging Guide - 2001 F25 Tiller Handle Kit

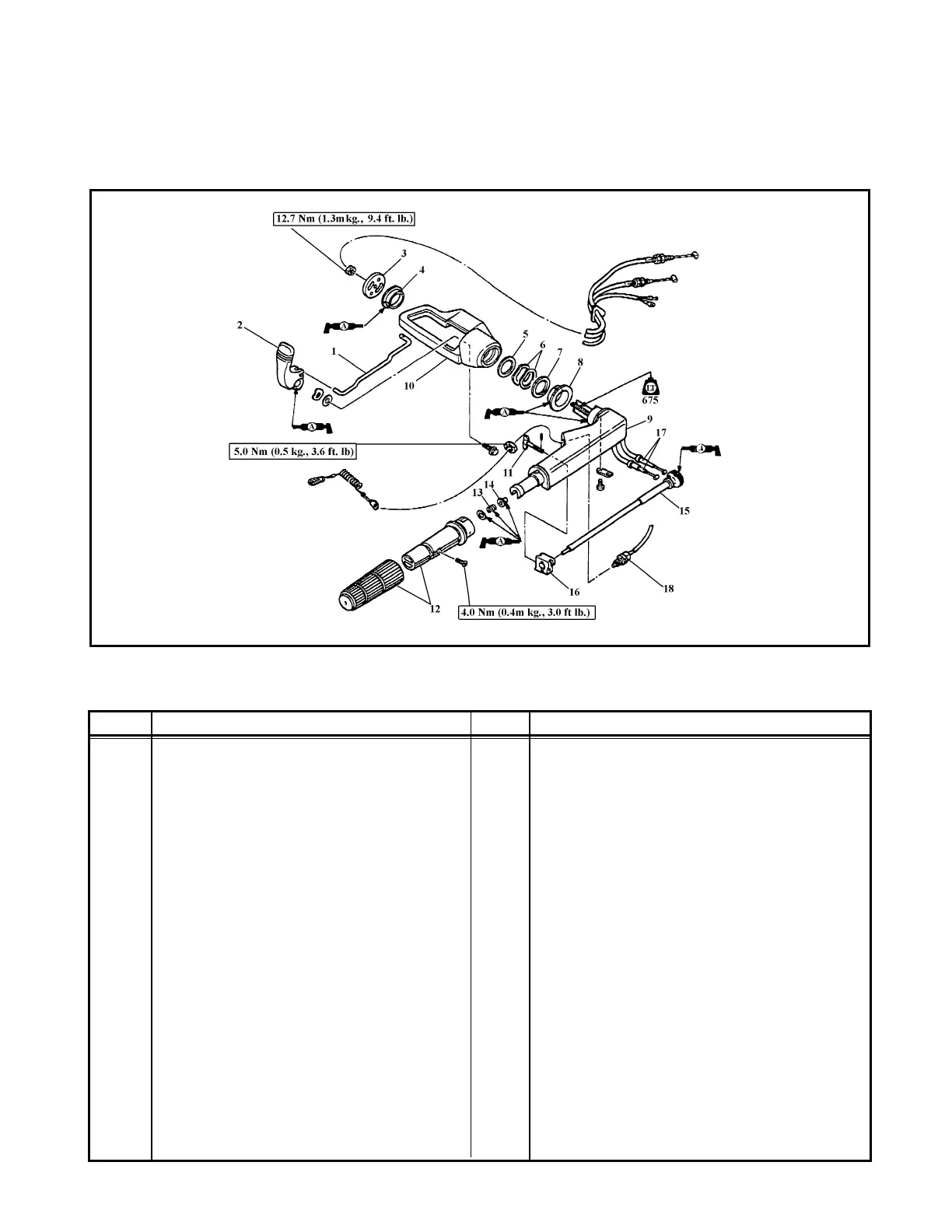

F25 STEERING HANDLE
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
STEP PROCEDURE/PART NAME QTY. SERVICE POINTS
STEERING HANDLE DISASSEMBLY
Follow the “Step” order for removal.
1 Shift Link Rod 1
2 Shift Lever 1
3 Cable Guide 1
4 Bushing 1
5 Plastic Washer 1
6 Wave Washer 2
7 Metal Washer 1
8 Bushing 1
9 Tiller Handle Bracket 1
10 Steering Bracket 1
11 Friction Piece 1
12 Steering Grip 1
13 Spring 1
14 Bushing 1
15 Throttle Shaft 1
16 Friction Piece 1
17 Throttle Cable 2
18 Engine Stop Switch 1
Reverse the disassembly steps for installation
