6-15

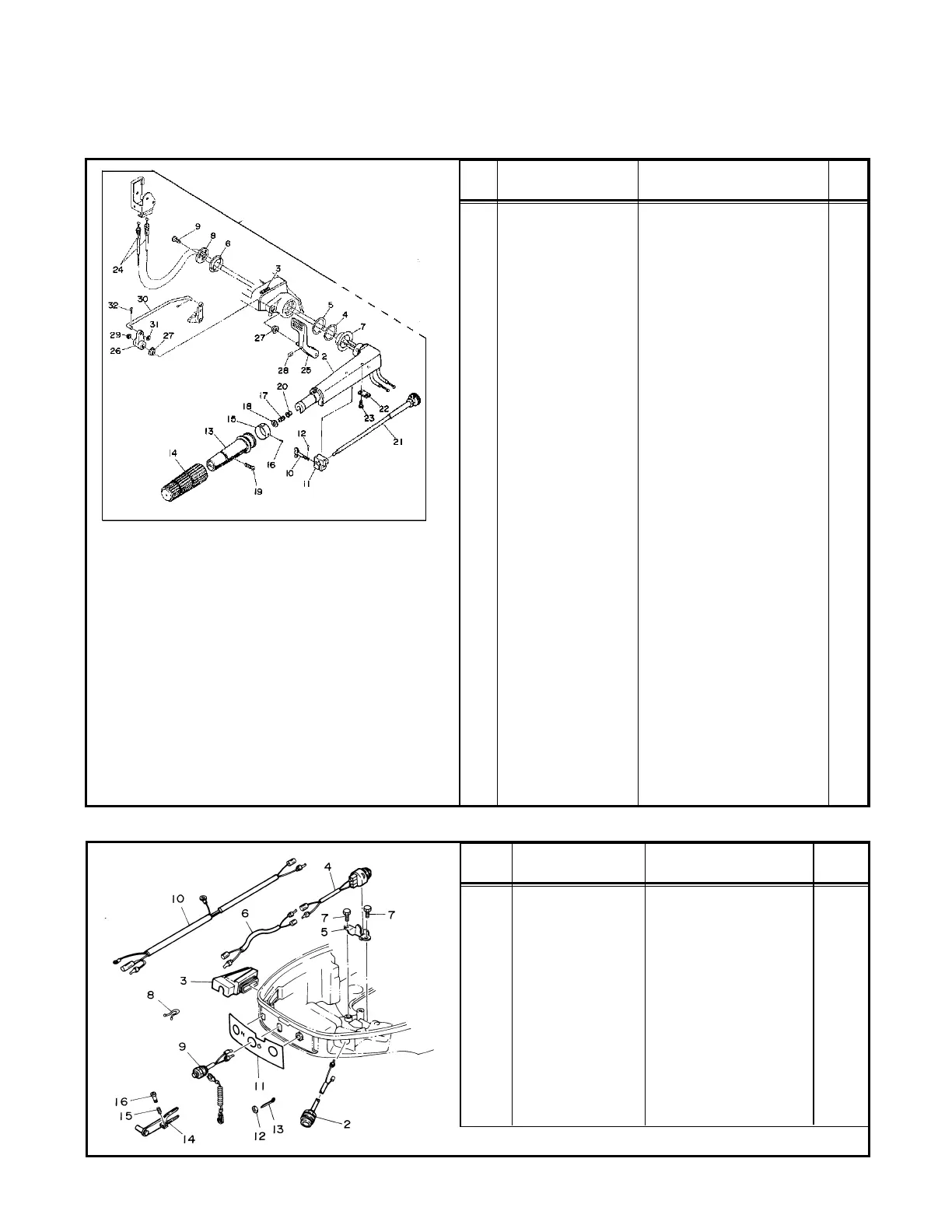

Outboard Rigging Guide - 2001 30HP Tiller Handle Kit
30HP TILLER HANDLE KIT (6L2-W0084-10-4D)
30EH Tiller Switch Kit – Additional Parts Required
REF
NO PART NUMBER DESCRIPTION QTY.
Handle Steering Assy1
2 6G1-42111-11-4D Handle, Steering 1
3 6E0-44191-11-00 Indicator, Shift 1
4 90206-36M21-00 Washer, Wave 1
5 90202-36M55-00 Washer, Plate 1
6 90386-33M96-00 Bush 1
7 90386-44M97-00 Bush 1
8 6G1-42131-01-00 Cover, Handle Steering 1
9 97095-06020-00 Bolt 1
10 6G1-42125-01-00 Bolt, FrictionAdjusting 1
11 6G1-42126-00-00 Friction, Steer Hndl Grip 1
12 91490-16010-00 Pin, Cotter 1
13 664-42119-00-00 Grip, Steering Handle 1
14 6F6-42177-A0-00 Rubber, Handle 1
15 6J8-42137-00-00 Indicator, Throttle 1
16 90269-02M09-00 Rivet 1
17 90501-23215-00 Spring, Compression 1
18 92903-10600-00 Washer, Plate 1
19 90149-05M13-00 Screw 1
20 90386-08032-00 Bush 1
21 6G1-42138-01-00 Lever, Throttle 1
22 6E0-42159-02-00 Stay 1
23 97885-05012-00 Screw, Pan Head 2
24 6J8-26301-00-00 Throttle Cable Assy2
25 6J8-44111-01-4D Handle, Gear Shift 1
26 6J8-44125-00-00 Lever Shift Rod 1
27 682-44132-00-00 Bushing 2
28 91690-30318-00 Pin, Spring 1
29 90386-06M12-00 Bush 1
30 6J8-44124-00-00 Link, Shift Rod 1
31 92990-06200-00 Washer 1
32 91490-20012-00 Pin, Cotter 1
Component parts
REF
NO PART NUMBER DESCRIPTION QTY.
2 689-81870-00-00 Starting Switch Assy1
3 6J8-42724-40-00 Grommet 1
4 6H3-82540-00-00 Neutral Switch 1
5 6J8-82554-00-00 Neutral Switch Stay 1
6 6H4-82553-00-00 Extension Wire Lead 1
7 97013-06012-00 Bolt 2
8 90464-23M22-00 Clamp 1
9 689-82575-04-00 Emergency Stop Switch 1
10 6J8-82531-00-00 Wire, Lead 1
11 6J8-42719-20-00 Front Lower Panel 1
12 92990-06200-00 Washer 1
13 91490-20012-00 Cotter Pin 1
14 6J8-41211-00-00 Link, Accelerator 1
15 90501-08M66-00 Spring 1
16 97980-04120-00 Screw, Pan Head 1
Component parts
