5. Managing IP addresses and connecting Dante Controller
5-1. Types of IP address for CL/QL and R series

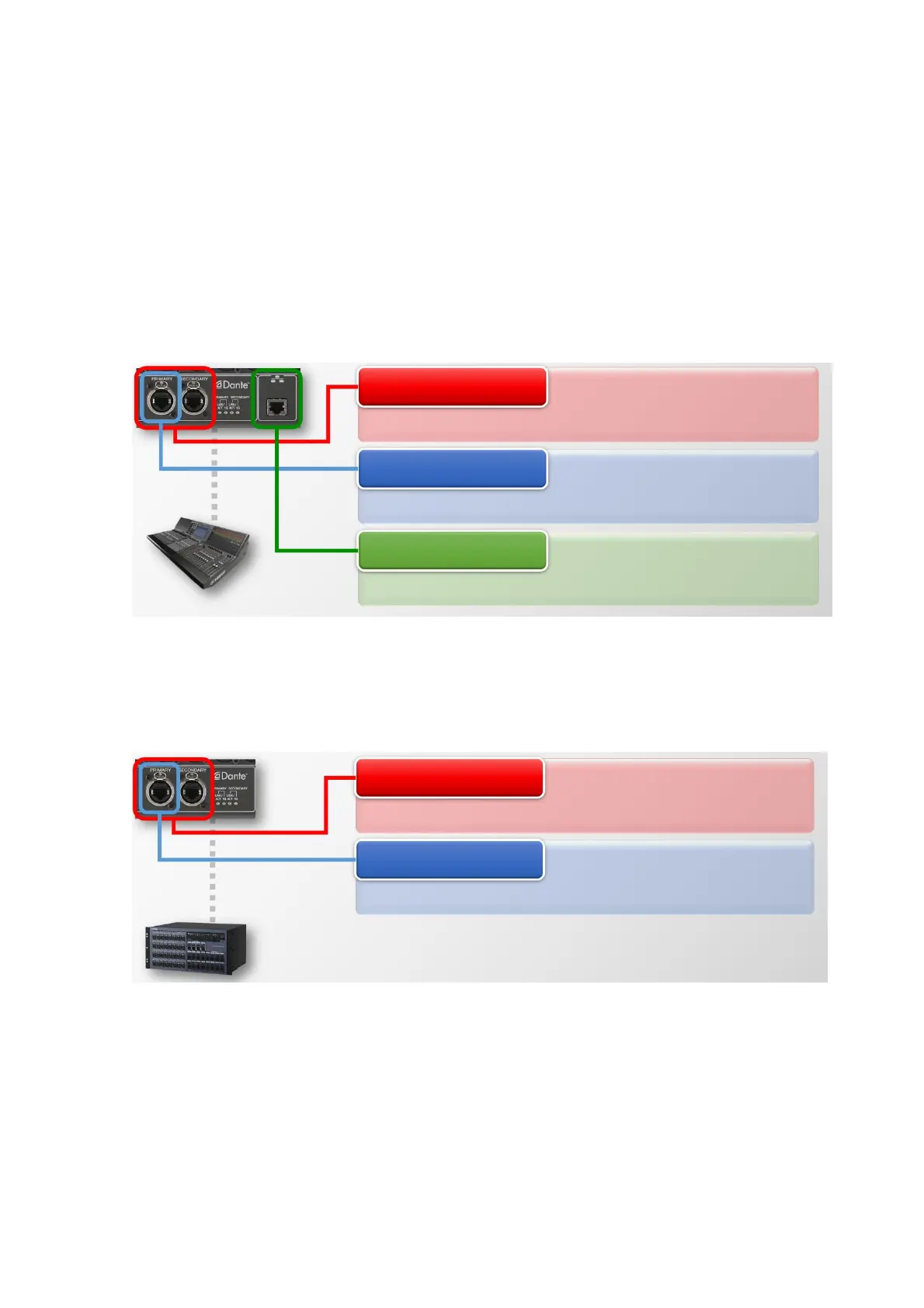

CL/QL series has three different ports and IP addresses for communicating with different external
devices.
R series has two different IP addresses, and they are used for different purposes.
Dante port
Device Control port
Mixer Control port
IP address 169.254.xx.yy
IP address: 169.254.xx.yy
IP address: 192.168.0.xxx
✔Dante audio, PTP sync
✔HA remote for R series
✔HA remote for Tio1608-D
✔Nuendo Live control
✔CL/QL Editor software
✔StageMix / MonitorMix
CL/QL series
Dante port
Device Control port
IP address 169.254.xx.yy
IP address: 169.254.xx.yy
✔Dante audio
✔
HA remote from CL/QL/RIVAGE
✔HA remote from TF series
✔HA remote from R Remote
R series

Yamaha CL Series Specifications

General

Dante Network	Yes
Touch Screen	Yes
Type	Digital Mixing Console
Control Surface	Yes
Mixing Channels	CL5: 72, CL3: 64, CL1: 48
Local I/O	CL5: 8 in / 8 out, CL3: 8 in / 8 out, CL1: 8 in / 8 out
USB Recording	Yes
EQ	4-band parametric EQ per channel
Effects	Yes
DAW Control	Yes
Word Clock	Yes
Input Channels	CL5: 72, CL3: 64, CL1: 48
Output Channels	CL5: 34, CL3: 34, CL1: 34
Sampling Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Connectivity	Dante, USB
Recallable Scenes	Yes
Expandability	Yes
