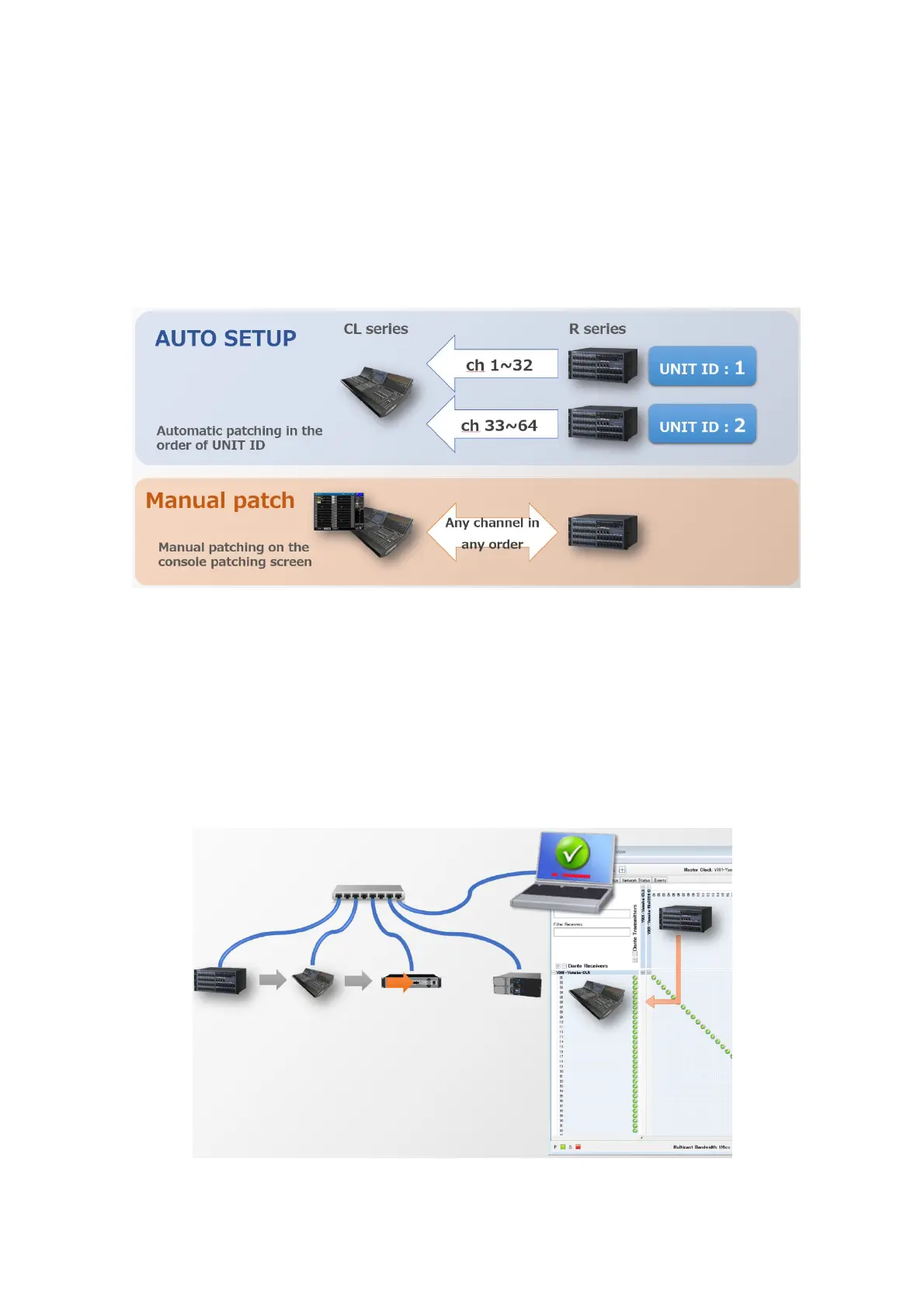

Once each R series device is mounted in the console, the AUTO SETUP function in the DANTE
INPUT PATCH screen makes Dante patching very easy, following the order of units and input ports.
However, manual patching is possible for more advanced setups, and allows a large variation of
connections between the console and the mounted R series devices.
5-4. Dante patching by using Dante Controller
Devices which do not support the console Device Mount function require Dante Controller for
patching, as do systems which don’t include a CL/QL console. An advantage of using Dante
Controller is that it includes a full system overview, and it includes several intuitive patching short-
cuts.

Yamaha CL Series Specifications

General

Dante Network	Yes
Touch Screen	Yes
Type	Digital Mixing Console
Control Surface	Yes
Mixing Channels	CL5: 72, CL3: 64, CL1: 48
Local I/O	CL5: 8 in / 8 out, CL3: 8 in / 8 out, CL1: 8 in / 8 out
USB Recording	Yes
EQ	4-band parametric EQ per channel
Effects	Yes
DAW Control	Yes
Word Clock	Yes
Input Channels	CL5: 72, CL3: 64, CL1: 48
Output Channels	CL5: 34, CL3: 34, CL1: 34
Sampling Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Connectivity	Dante, USB
Recallable Scenes	Yes
Expandability	Yes
