6-3. Mixed Sampling Frequencies

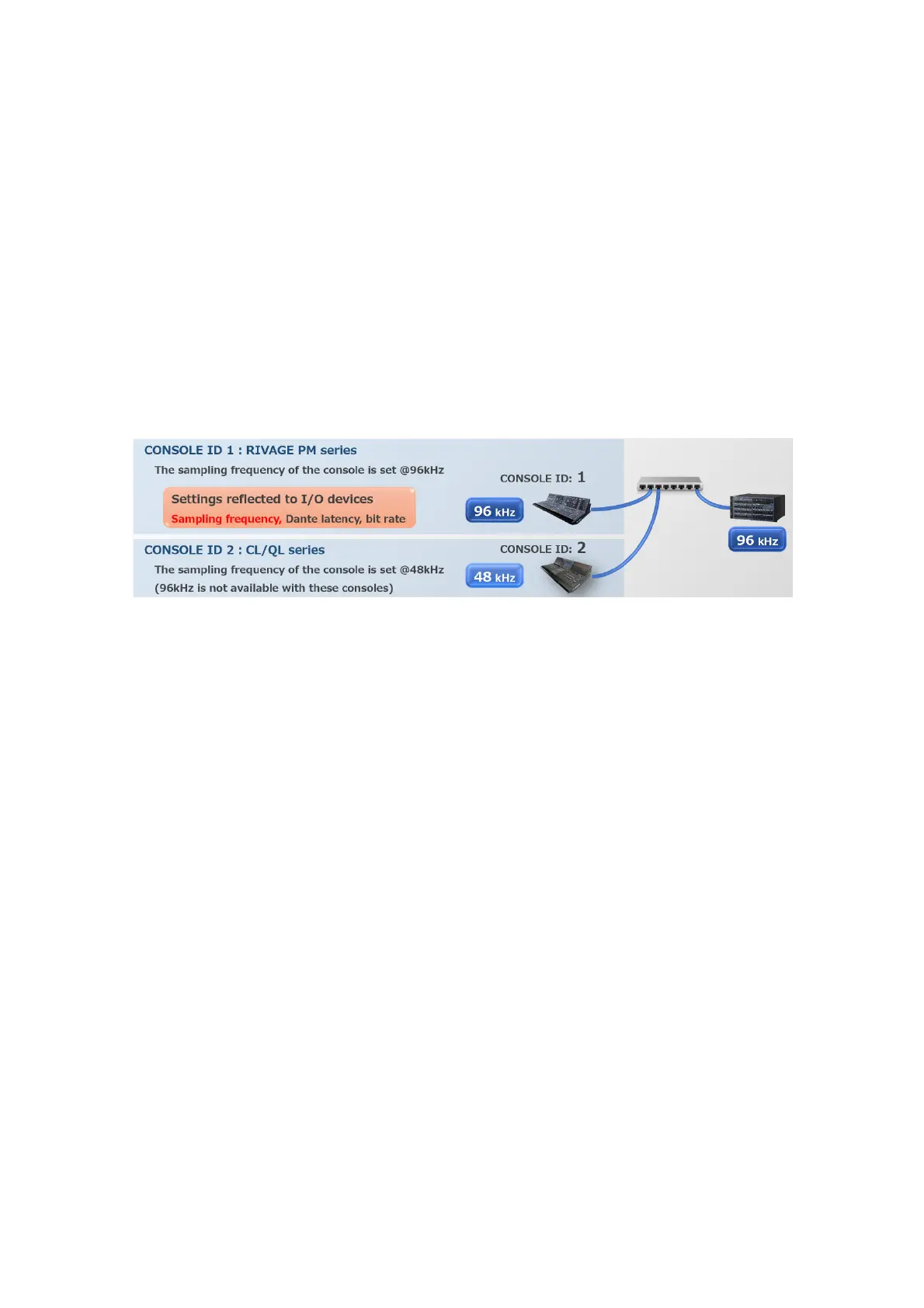

As described above, the sampling frequency of Console ID #1 is reflected to all R series devices.
Note that R series devices can work at 96kHz in case Console ID #1 is a RIVAGE PM series.
However, a CL/QL console will not operate at 96kHz, so it would remain silent in this situation. To
construct a system where RIVAGE PM consoles work at 96kHz and CL/QL consoles work at 48kHz,
a “sample-rate converter” device is needed. There are two options: use a HY144-D-SRC card in the
RIVAGE system to output 144 Dante channels at 48kHz; or use a Yamaha RSio64-D containing Dante-
MY16-AUD2 cards, which can convert 32 Dante channels from 96kHz to 48kHz.

Yamaha CL Series Specifications

General

Dante Network	Yes
Touch Screen	Yes
Type	Digital Mixing Console
Control Surface	Yes
Mixing Channels	CL5: 72, CL3: 64, CL1: 48
Local I/O	CL5: 8 in / 8 out, CL3: 8 in / 8 out, CL1: 8 in / 8 out
USB Recording	Yes
EQ	4-band parametric EQ per channel
Effects	Yes
DAW Control	Yes
Word Clock	Yes
Input Channels	CL5: 72, CL3: 64, CL1: 48
Output Channels	CL5: 34, CL3: 34, CL1: 34
Sampling Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Connectivity	Dante, USB
Recallable Scenes	Yes
Expandability	Yes
