Yamaha CL Series System Design Guide

19
6-6. Possible device combinations for remote control

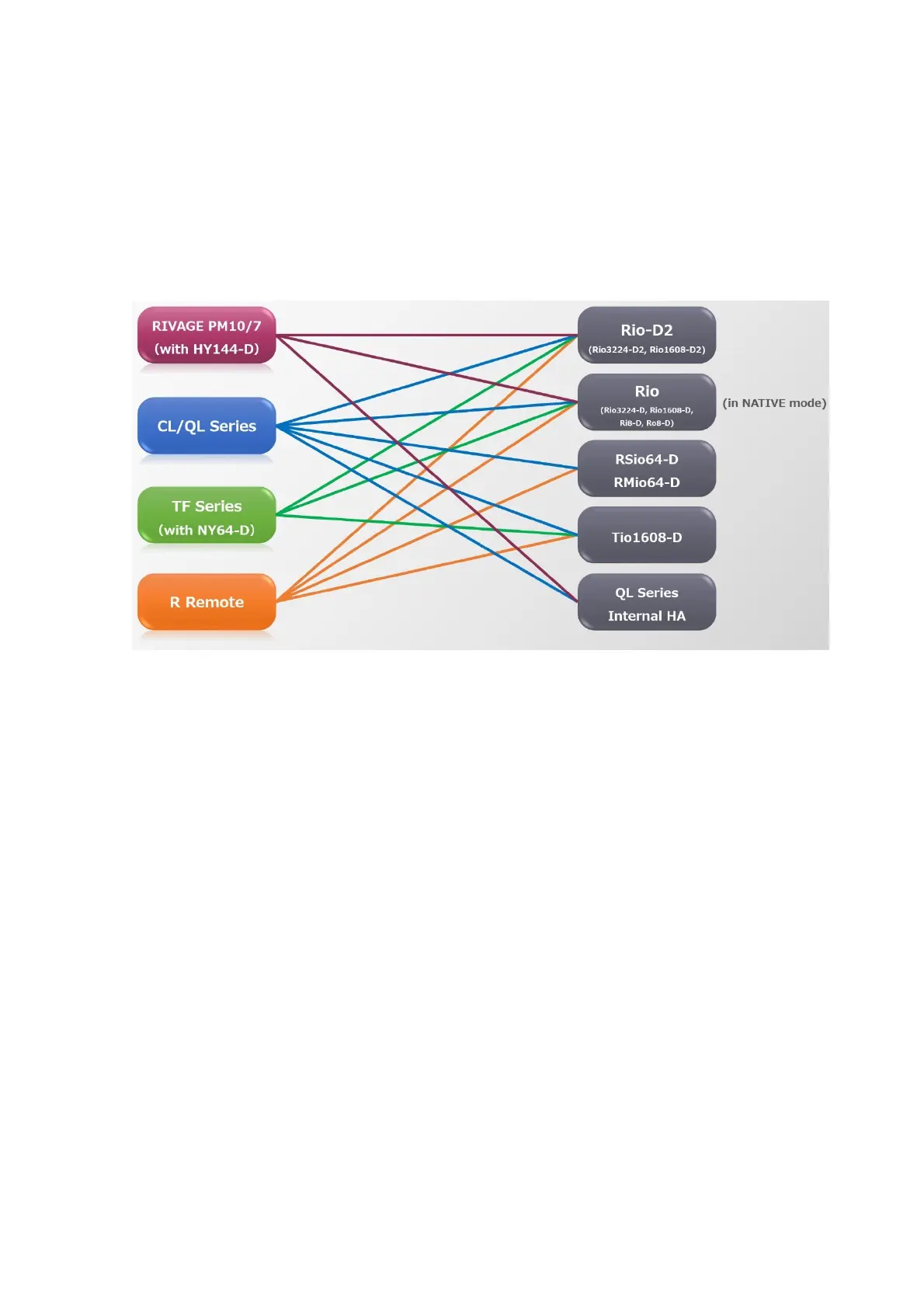

Below is a diagram showing which consoles and the R remote application can remotely control each
I/O device listed.
As this indicates, CL/QL series can control all R series devices as well as Tio1608-D, and even the
internal HA of QL series. However, the others have some limitations, so please be careful to use
the right console for remotely controlling the selected I/O devices.

Yamaha CL Series Specifications

General

Dante Network	Yes
Touch Screen	Yes
Type	Digital Mixing Console
Control Surface	Yes
Mixing Channels	CL5: 72, CL3: 64, CL1: 48
Local I/O	CL5: 8 in / 8 out, CL3: 8 in / 8 out, CL1: 8 in / 8 out
USB Recording	Yes
EQ	4-band parametric EQ per channel
Effects	Yes
DAW Control	Yes
Word Clock	Yes
Input Channels	CL5: 72, CL3: 64, CL1: 48
Output Channels	CL5: 34, CL3: 34, CL1: 34
Sampling Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Connectivity	Dante, USB
Recallable Scenes	Yes
Expandability	Yes
