5-2. How to set an IP address for each port
Each type of port has different way of setting its IP address, and certain ports allow automatic
assignment of IP addresses, while others require manual settings. Manual assignment of IP addresses
to the Dante port will require the use of Dante Controller software. Manual assignment of IP
addresses to the Device Control port of R series devices will require the use of R Remote software.

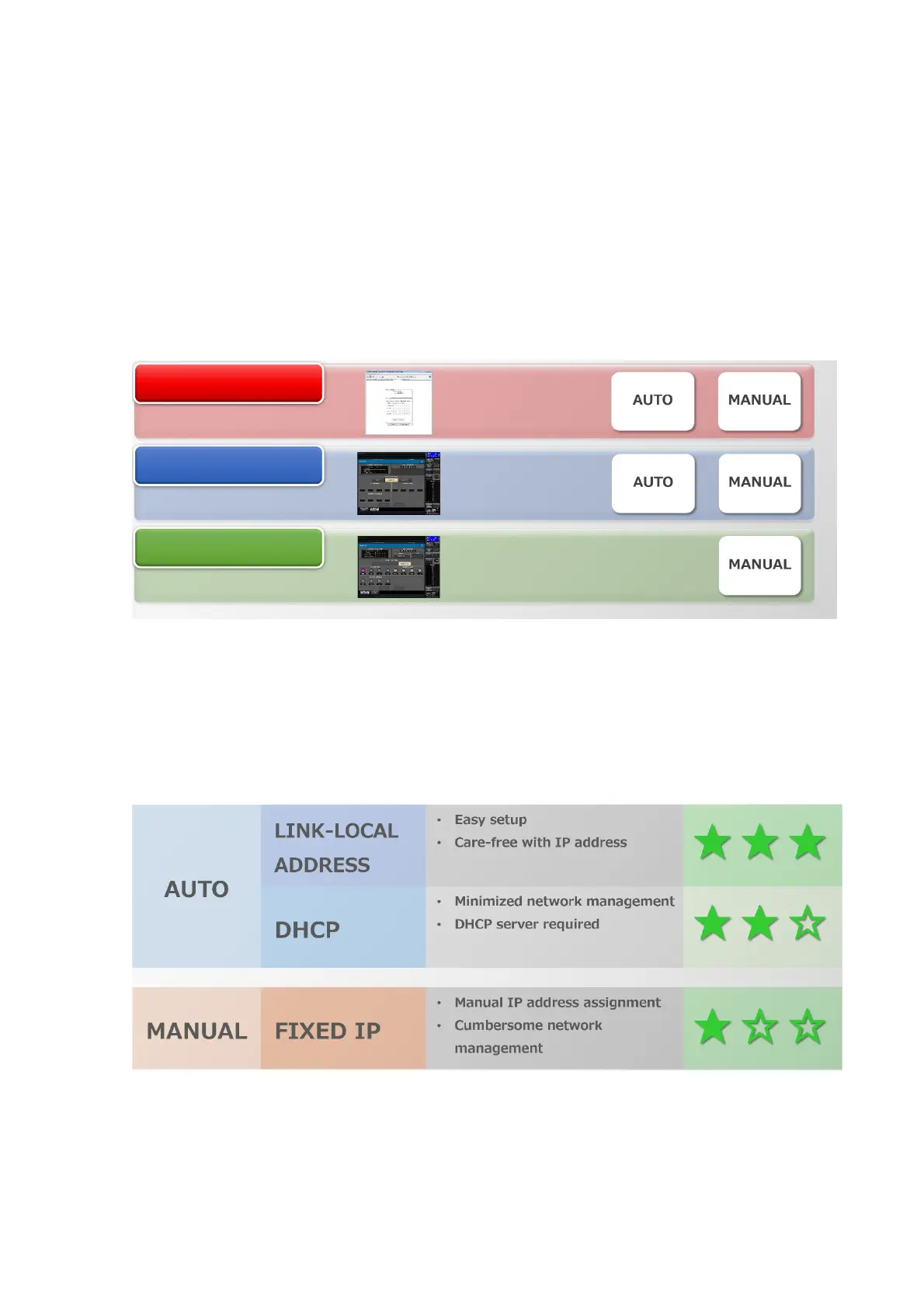

Below is a chart for illustrating different scopes of IP address, how they are configured and how easy
they are to manage. (Here, we recommend the default link-local addresses unless there is a specific
reason for choosing the others).
Dante port
Device Control port
Mixer Control port
IP address 169.254.xx.yy
IP address: 169.254.xx.yy
IP address: 192.168.0.xxx
Set via
Dante Controller
Set via console
Set via console
