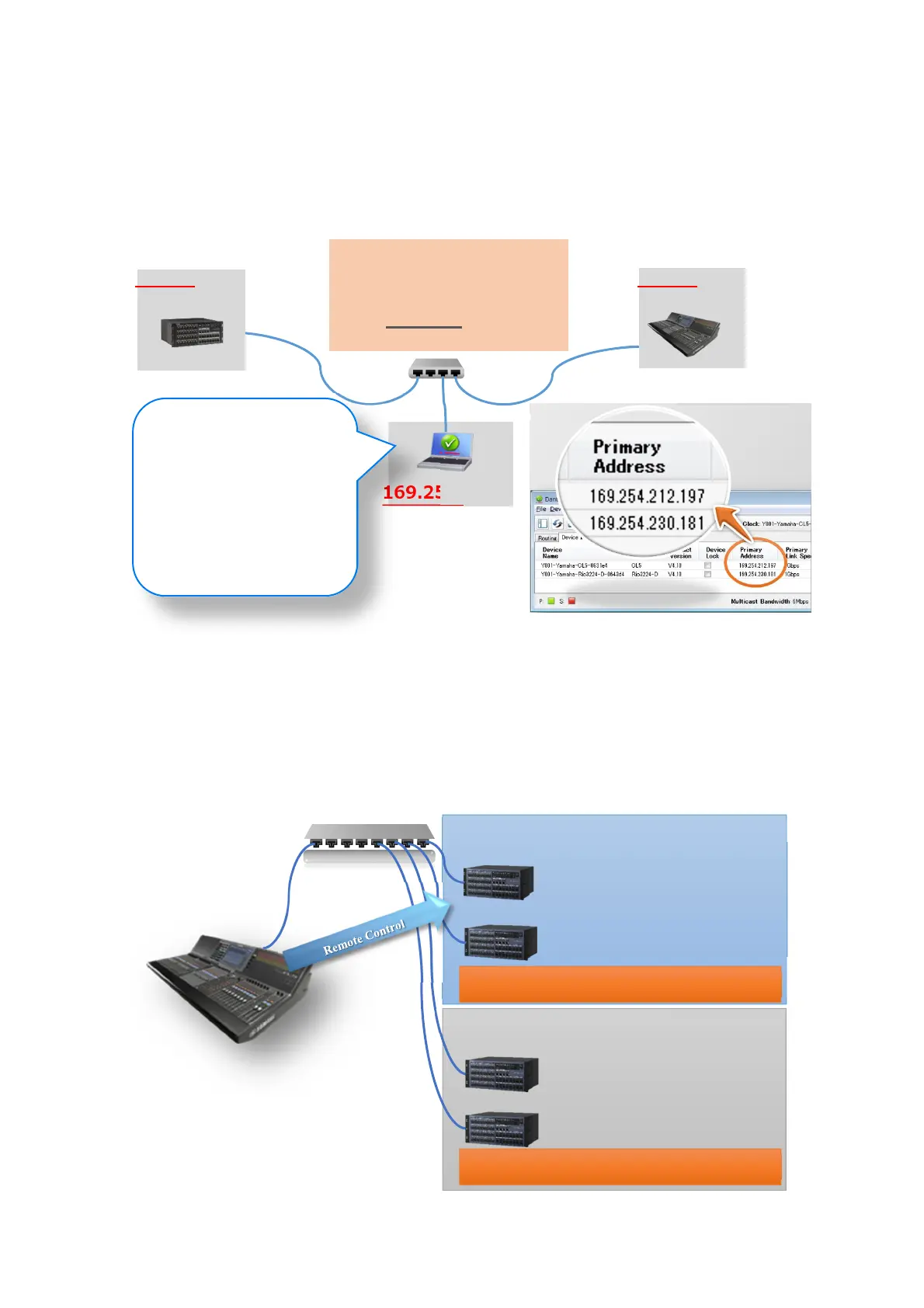

Link-local addressing – the IP address is automatically assigned without any manual settings, as in
the example below.
5-3. Direct Dante patching by mounting R series units
By “mounting” R series to a CL/QL console, it allows the console to control the R series or make
Dante patching without needing a PC (Dante Controller software).
LINK LOCAL ADDRESS
169.254.xx.yy
169.254.230.181
169.254.212.197
169.254. 12.34
Keep the IP configuration of
your PC Auto or DHCP, and
a link-local address will be
automatically assigned.
Mounted
R
series units
Unmounted R series units
✔HA remote (HA Gain, +48V, HPF)
✔Dante patching and remote control
✔WITH RECALL option available
✔Settings of CONSOLE ID 1 reflected
✔Dante synchronization and audio only
Configurable from console (PC not required)
PC required (Dante Controller, R Remote)

Yamaha CL Series Specifications

General

Dante Network	Yes
Touch Screen	Yes
Type	Digital Mixing Console
Control Surface	Yes
Mixing Channels	CL5: 72, CL3: 64, CL1: 48
Local I/O	CL5: 8 in / 8 out, CL3: 8 in / 8 out, CL1: 8 in / 8 out
USB Recording	Yes
EQ	4-band parametric EQ per channel
Effects	Yes
DAW Control	Yes
Word Clock	Yes
Input Channels	CL5: 72, CL3: 64, CL1: 48
Output Channels	CL5: 34, CL3: 34, CL1: 34
Sampling Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Connectivity	Dante, USB
Recallable Scenes	Yes
Expandability	Yes
