Yamaha CL Series System Design Guide

6

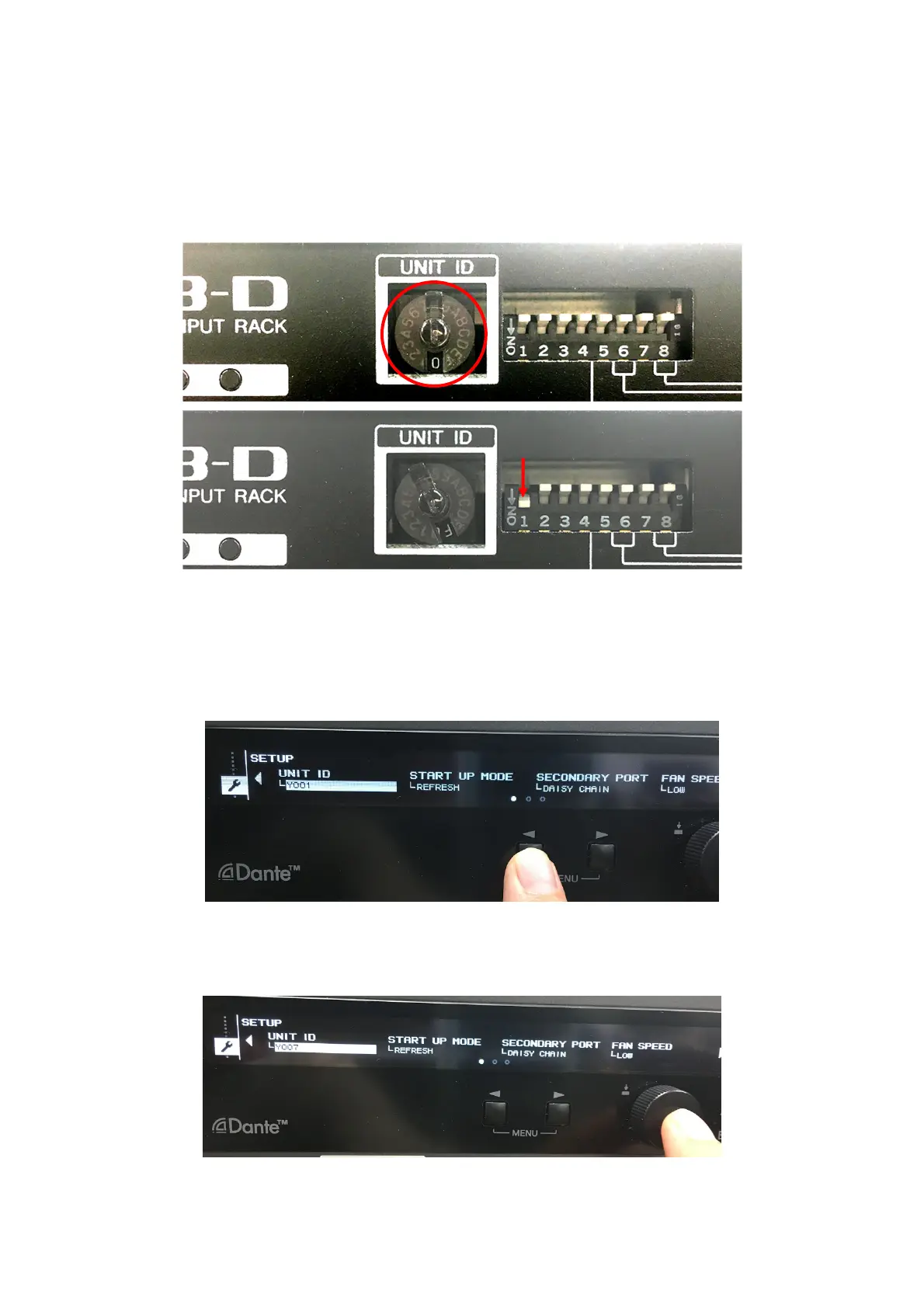

For the original R series units, set the Unit ID while the device is powered off (any change will not be
detected while the unit is on). Push dip switch 1 down to access additional ID numbers.
Rio-D2 Unit ID
For these devices, the Unit ID must be set while it is powered on, using the front panel display.
1. Enter the SETUP menu and press the left MENU button until the UNIT ID section is highlighted
2. Rotate the encoder until the desired ID number is shown. It can be in the range “Y000” to
“Y07F”.
3. Push the encoder to set the UNIT ID number.

Yamaha CL Series Specifications

General

Dante Network	Yes
Touch Screen	Yes
Type	Digital Mixing Console
Control Surface	Yes
Mixing Channels	CL5: 72, CL3: 64, CL1: 48
Local I/O	CL5: 8 in / 8 out, CL3: 8 in / 8 out, CL1: 8 in / 8 out
USB Recording	Yes
EQ	4-band parametric EQ per channel
Effects	Yes
DAW Control	Yes
Word Clock	Yes
Input Channels	CL5: 72, CL3: 64, CL1: 48
Output Channels	CL5: 34, CL3: 34, CL1: 34
Sampling Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Connectivity	Dante, USB
Recallable Scenes	Yes
Expandability	Yes
