EQ and Dynamics
V4.1 Supplementary Manual
15

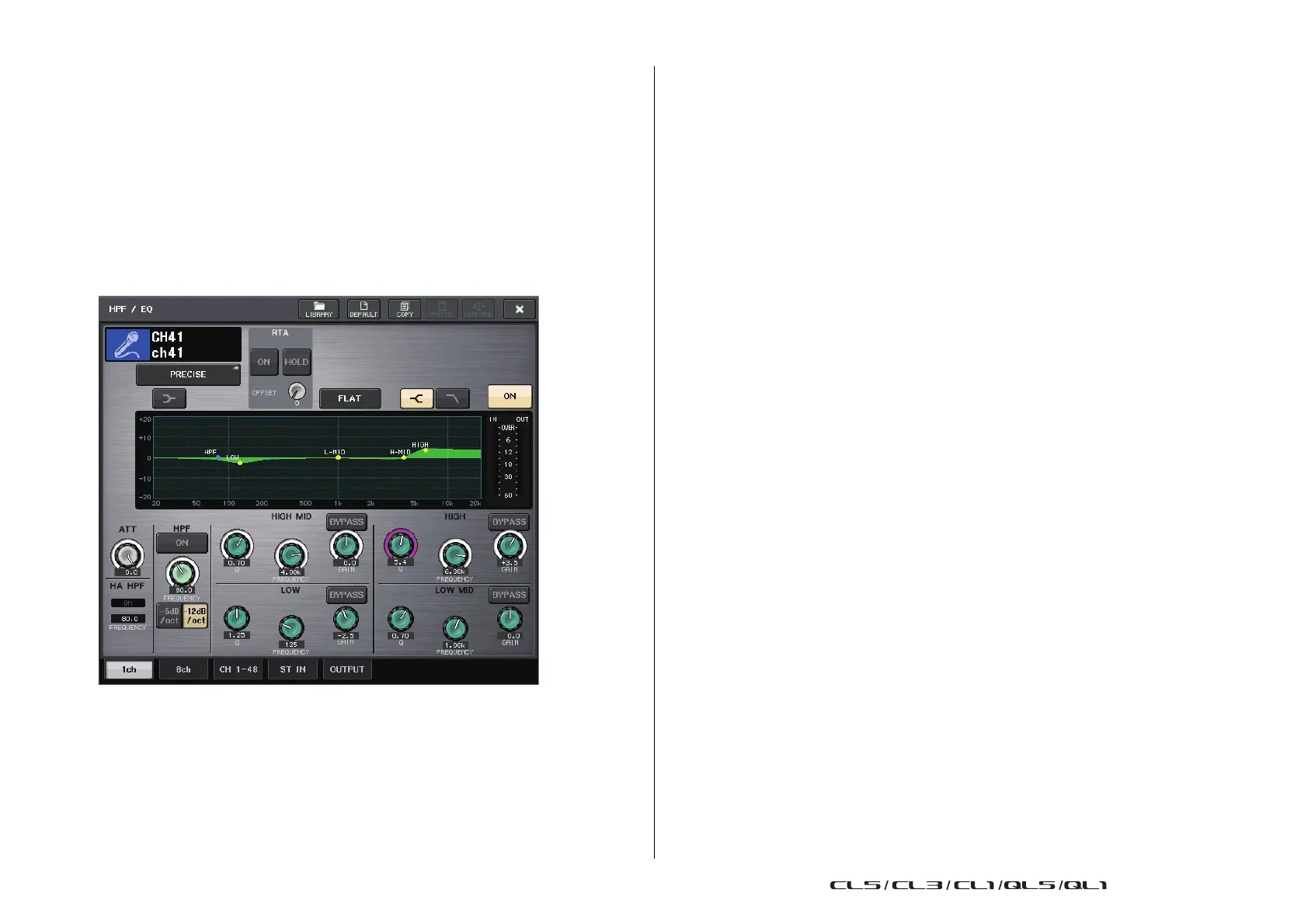

HPF/EQ window (1ch)
When the EQ type is set to PRECISE, you can press in and turn the Q knob for the HIGH
band to switch between PEQ, shelving type, and low-pass filter.
In addition, you can press in and turn the Q knob for the LOW band to switch between PEQ
and high-pass filter.
NOTE
• This operation is possible only with the EQ Q knobs in the SELECTED CHANNEL section on the
console
’s top panel.
• For CL series consoles, this operation is not possible with the multifunction knobs in the
Centralogic section. It is also not possible with USER DEFINED knobs that have been assigned
to the TOUCH AND TURN function.
• For QL series consoles, this operation is not possible with the TOUCH AND TURN knob in the
SELECTED CHANNEL section.
HIGH band
• When set to PEQ (Q=0.10), press in and turn the Q knob to the right to switch to shelving
type.
• When set to PEQ (Q=16.0), press in and turn the Q knob to the left to switch to low-pass
filter.
• When set to shelving type (Q=10.0), press in and turn the Q knob to the left to switch to
PEQ.
• When set to low-pass filter, press in and turn the Q knob to the right to switch to PEQ.
LOW band
• When set to PEQ (Q=0.10), press in and turn the Q knob to the right to switch to shelving
type.
• When set to shelving type (Q=10.0), press in and turn the Q knob to the left to switch to
PEQ.
