Yamaha CL Series User Manual

I/O devices and external head amps
V4.1 Supplementary Manual
17
I/O devices and external head amps
Support for the AES67 standard for audio
networking interoperability
The AES67 standard for interoperability through the use of audio-over-IP technology is now
supported. This allows the CL/QL console and R series to establish an audio connection with
audio networks that support AES67, such as “Ravenna.”
NOTE
• The Audinate “Dante Controller” software is required to use the CL/QL console and R series in
AES67 mode. Routing via AES67 is possible only by using Dante Controller.
• Channels with patches that use AES67 offline will synchronize with the patch settings that are
saved on the target device when connected with the device.

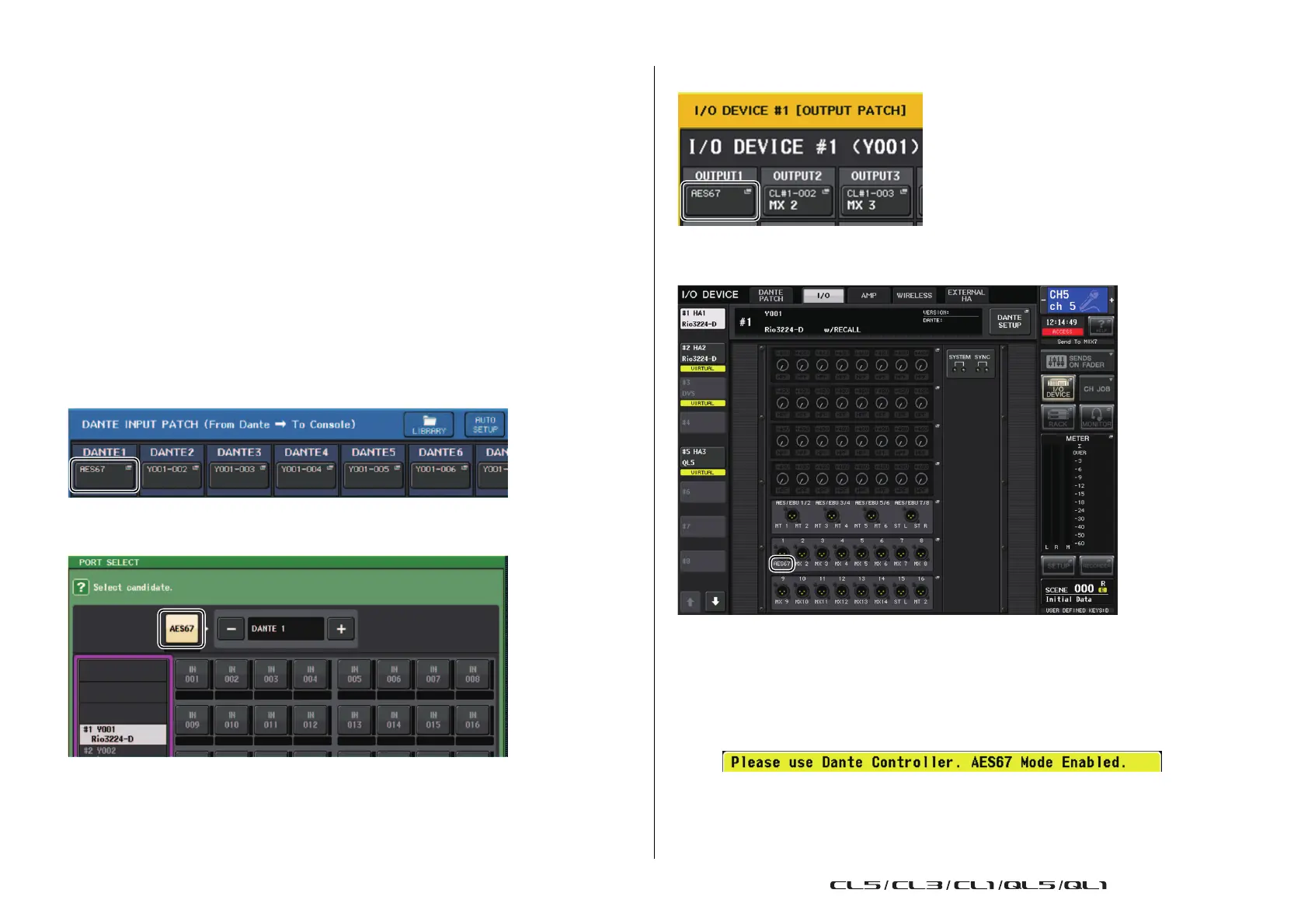

When a patch establishes an audio connection via AES67, “AES67” is displayed on the port
selection buttons, etc. as shown below.
DANTE INPUT PATCH window
PORT SELECT window
I/O DEVICE [OUTPUT PATCH] window
I/O DEVICE window (I/O page)
When the CL/QL console is in AES67 mode, the settings for the following parameters cannot
be changed on the console.
• Master clock select buttons in the MASTER CLOCK SELECT field of the WORD CLOCK/
SLOT window
NOTE
If you try to change any of the above settings, the following message will appear at the bottom of
the LCD screen.
