Support for Shure AXT400, QLXD4 and ULXD4
V4.1 Supplementary Manual
3
Support for Shure AXT400, QLXD4 and
ULXD4
In addition to support for the Shure ULXD4D and ULXD4Q digital wireless systems with CL/
QL V4.0 and later, the Shure AXT400, QLXD4, and ULXD4 wireless systems, which do not
feature Dante output, can now be controlled. These Shure devices can be connected to the
same physical network as Dante, mounted, and controlled.
However, the actual audio signals are physically connected to an R series I/O rack mounted
on the CL/QL console or to OMNI IN. By associating the port where audio is input with the
mounted Shure device, control and monitoring are possible from the input channel that is
patched to the input port. For details about the explanation of how to control the Shure
wireless systems, which do not feature Dante output, refer to
B “PORT ASSIGN tabs” on “I/
O DEVICE EDIT window”.
Settings before use
Update the firmware for Shure devices to a version that supports this function.
Please refer to the Yamaha Pro Audio website for details on supported versions.
http://www.yamahaproaudio.com/global/en/
Configure the network settings for each device.
Shure devices: Configure the network settings using the Shure “Wireless Workbench 6”
software or in the menu on each device. For details, refer to the manual of your Shure device.
CL/QL: In the SETUP window, press the NETWORK button to open a popup window, and
configure the settings on the FOR DEVICE CONTROL tab.
If you are not using a DHCP server, set both the Shure device and the CL/QL console to
“A U T O . ”
If you are using a DHCP server, set the Shure device to “AUTO” and the CL/QL console to
“DHCP.”
If you are using a fixed IP address, set the CL/QL console to STATIC IP. In this case, set the
IP address for the Shure device and the IP address in “FOR DEVICE CONTROL” for the CL/
QL console to the same subnet.

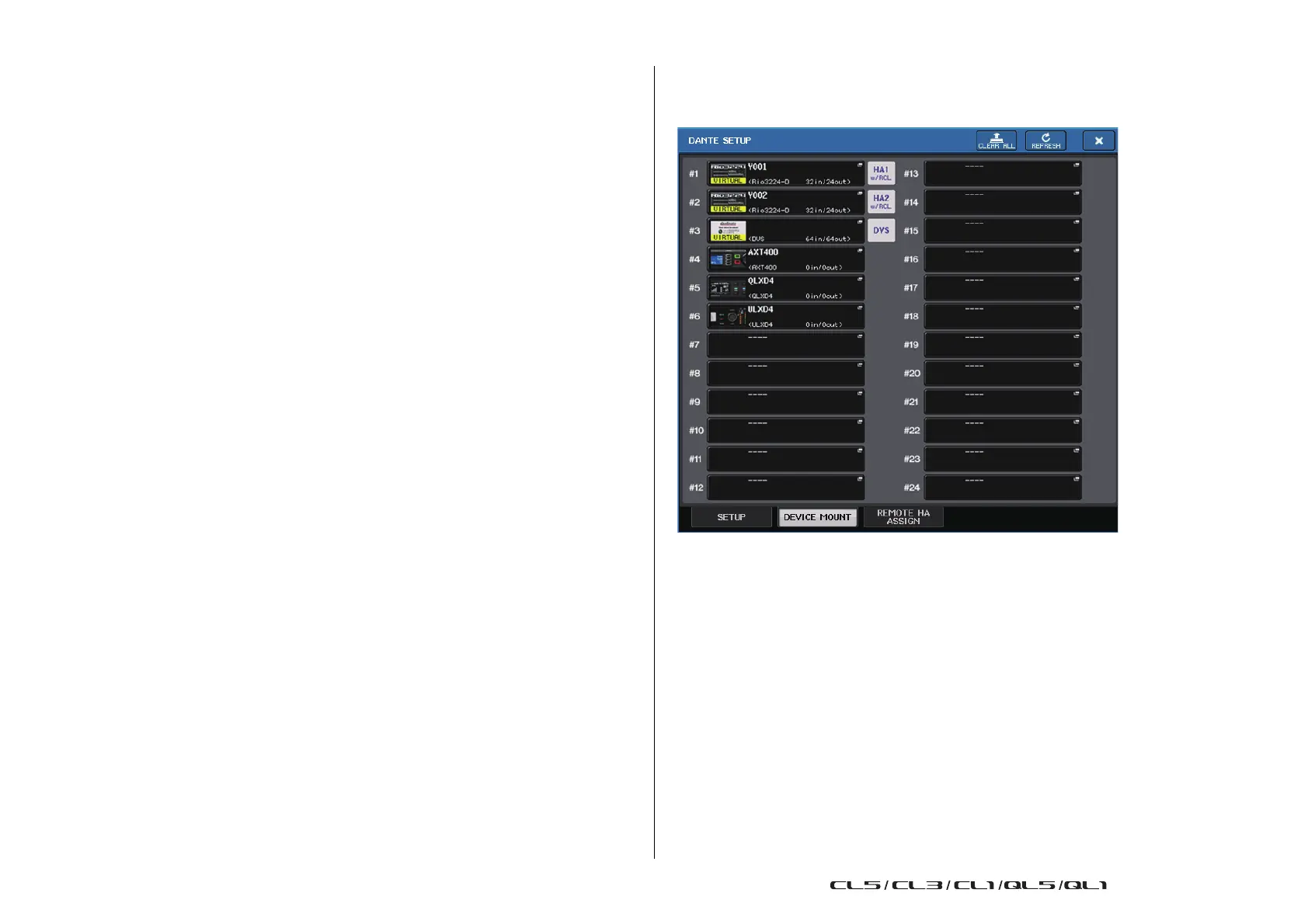

DANTE SETUP window (DEVICE MOUNT page)
Shure AXT400, QLXD4, and ULXD4 can be mounted in this window in the same way as
Dante devices.
NOTE
CL/QL consoles can recognize up to 24 Shure AXT400, QLXD4, and ULXD4 devices on the
same Dante audio network, including Shure ULXD4D and ULXD4Q Dante output devices that
are set to YAMAHA ID mode. Note that if a greater number of devices is connected, some of the
devices will not be recognized by the console based on the order in which their power is turned
on, etc, regardless of the mount setting.
