Support for Shure AXT400, QLXD4 and ULXD4
V4.1 Supplementary Manual
5

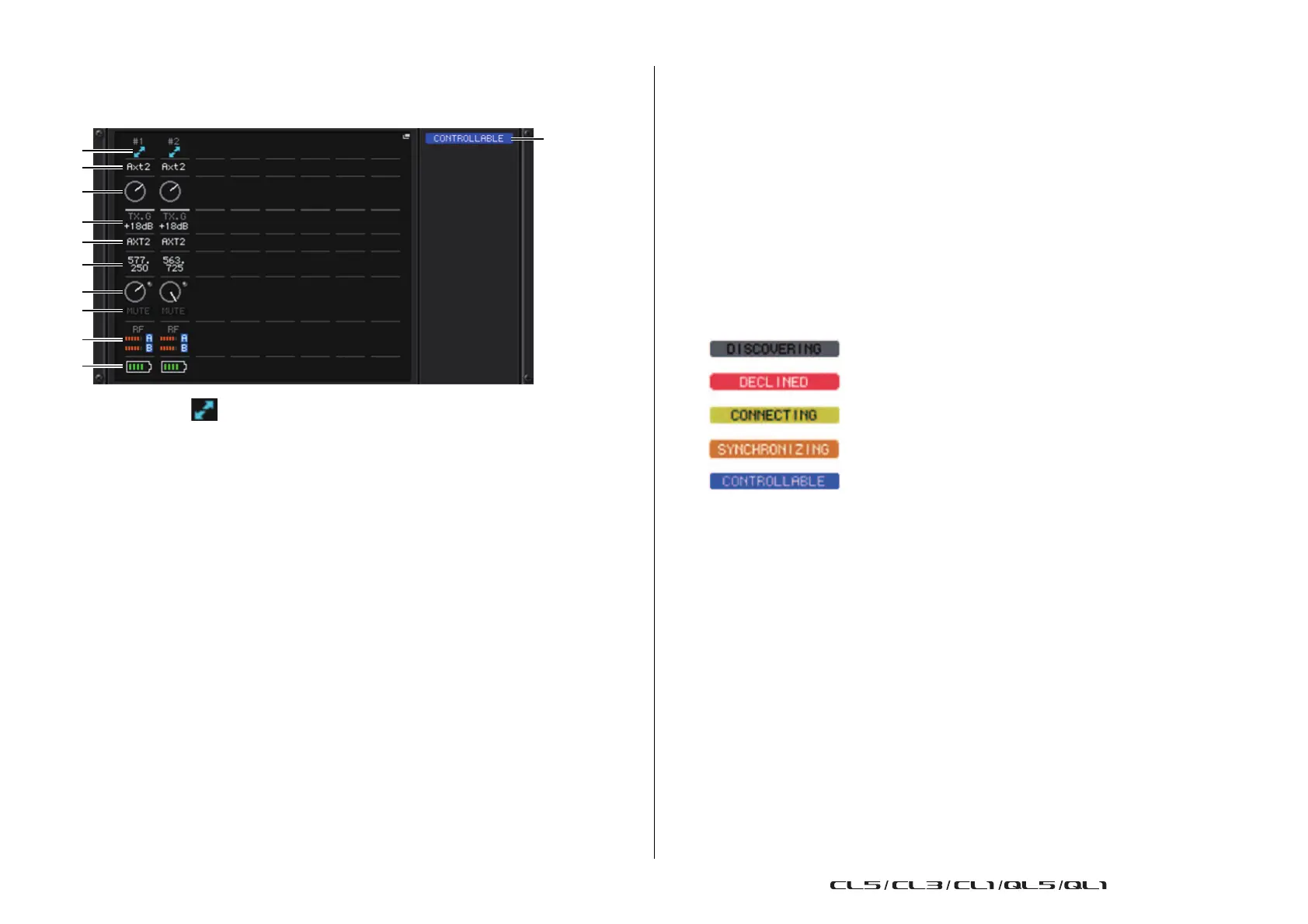

I/O DEVICE window (WIRELESS page)
For Shure AXT400
1
This indicator lights up when there is a connection with a Shure’s ShowLink®
remote control.
2 Device ID (transmitter)
Indicates the device ID that is set on the transmitter.
3 TX.GAIN knob
Indicates the gain for the transmitter. This window is only for display; the value cannot
be edited.
4 TX.GAIN
Indicates the gain value for the transmitter.
5 Channel name (receiver)
Indicates the channel name that is set on the receiver.
6 Frequency
Indicates the frequency that is currently set for the RF signal.
7 RX.LEVEL knob
Indicates the gain for the receiver. This window is only for display; the value cannot be
edited.
8 MUTE indicator
Indicates the mute status (on/off) of the audio signal for the receiver.
9 RF (Radio Frequency) signal meter
Shows bars to indicate the level of the RF signal.
An active antenna indicator is shown on the right side. It indicates which antenna is
enabled.
NOTE
For details about the relationship between the number of bars and the actual strength of the RF
signal, refer to the manual from Shure.
0 Battery indicator
Shows bars to indicate the remaining battery power.
NOTE
For details about the relationship between the number of bars and maximum operation time, refer
to the manual from Shure.
A Control status indicator
Indicates the control status of the device.
NOTE
When control on the receiver side is possible, the parameter values for the receiver are sent to
the console.
For Shure QLXD4/ULXD4
Refer to “Remotely controlling WIRELESS unit” in the CL series or QL series Reference
Manual.
NOTE
For QLXD4, the MUTE button is not displayed.
Searching for device to be controlled
Found device to be controlled, but connection refused
Connecting to device
Synchronizing with device
Device can be controlled
