CRX-E300
CRX-E300
STANDBY/ON Key is pressed while pressing DISPLAY Key and AUTO/MAN'L Key.
TEST MODE indication.
PRESET/TUNING Key
Test mode number
up.
PRESET/TUNING Key
Test mode number
down.
PRESET/BAND Key
Execute test mode.
STANDBY/ON Key
POWER OFF
The completion
of test mode.
POWER Off condition
TEST MODE UP
TEST MODE DOWN
When present mode is
carried out.
Test mode is
finished.
DISPLAY
FUNCTION
PRESET/BAND Key

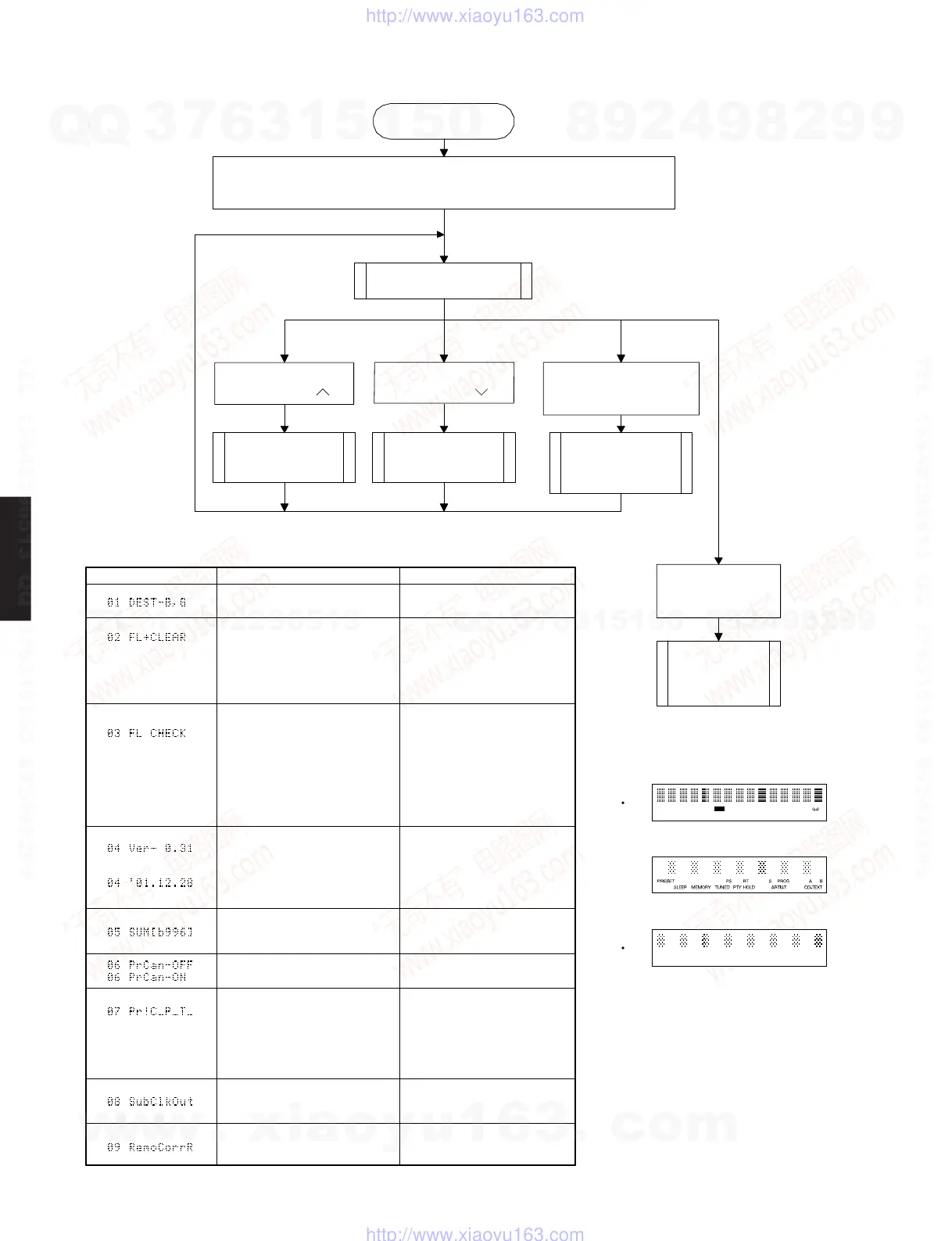

TEST PROGRAM MODE FUNCTION DESCRIPTION
Indication
The cancel of ALL protection.
for
ex.
ex.
ex.
❋1
destinaion. (*1)
All FL segments light and BACKUP
RAM CLEAR.
All FL segments and circuit board
short circuit inspection.
Version information of the
microcomputer software. (*2)
The date of the microcomputer
software. (*2)
The
The confirmation of protection.
_ (Mark): normal
x (Mark): History of protection.
[C: Amp. current
P: Power voltage
T: Thermo]
Clear protection history (x).
calculation of SUM is done and
indicated after that. (*2)
1st : all segments light
2nd : RAM CLEAR
1st : all segments light
2nd : Even-numbered segments and
even numbered digits are
turned on.
3rd : Odd -numbered segments and
odd-numbered digits are
turned on.
It is changed to the date indication.
It is changed to version indication.
Re-calculation
(Note that memories set by the user
will be erased.)
Also, the preset contents of the tuner
are restored to the factory preset
ones.
TIMER
FL CHECK
1st
2nd
3rd
ON/OFF
PRESET
STEREO AUTO PTYPS RT CT REP S F PROG A B
RANDOM
TIMER SLEEP MEMORY TUNED PTY HOLD
TITLE ARTIST TRACK CD-TEXT
RDS
TIMER
TIMER
Sub-clock output Selection of whether to have the sub-
clock signal output at pin No.1 or not
❋2
❋
1,
❋
2
: Not available
ROM collection data (remote
controller) reception/data writing.
