■ DISPLAYDATA

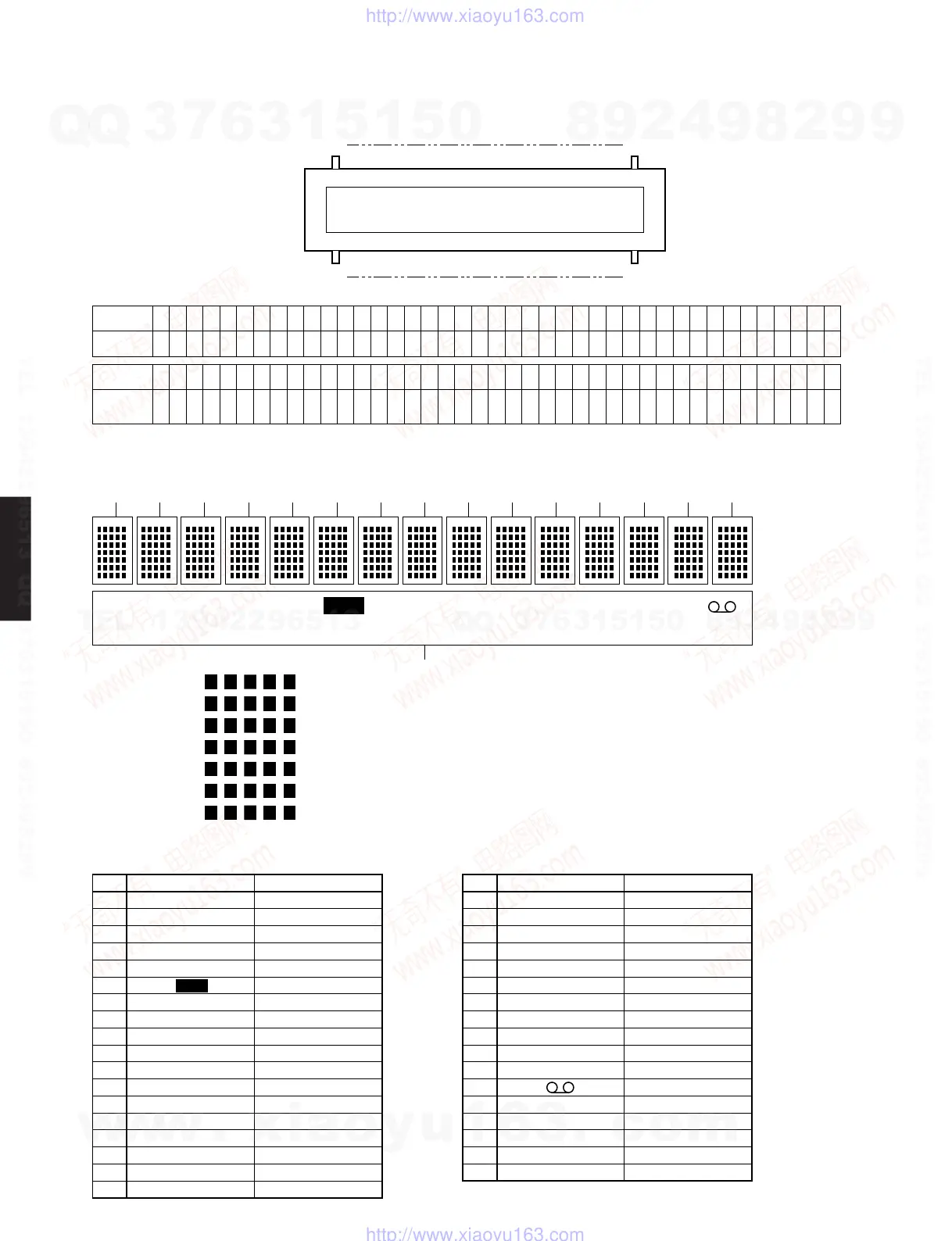

● V201 : 16-BT-84GN (V6253100)
● PIN CONNECTION
● GRID ASSIGNMENT
● ANODE CONNECTION
40
F2
41
F2
39
NP
38
NP
37
11G
36
10G
35
9G
34
8G
33
7G
32
6G
31
5G
30
4G
29
3G
28
2G
27
1G
26
P1
25
P2
24
P3
23
P4
22
P5
21
P6
20
P7
19
P8
18
P9
17
P10
16
P11
15
P12
14
P13
13
P14
12
P15
11
P16
10
P17
9
P18
8
P19
7
P20
6
P21
5
P22
4
NP
3
NP
2
F1
1
F1
Pin No.
Connection
42
F2
82
F1
43
F2
44
NP
45
NP
46
12G
47
13G
48
14G
49
15G
50
16G
51
IC
NX
52
NX
53
NX
54
NX
55
NX
56
NX
57
NX
58
NX
59
NX
60
NX
61
NX
62
NX
63
NX
64
NX
65
NX
66
P35
67
P34
68
P33
69
P32
70
P31
71
P30
72
P29
73
P28
74
P27
75
P26
76
P25
77
P24
78
P23
79
NP
80
NP
81
F1
Pin No.
Connection
Note : 1) F1, F2 ..... Filament 2) NP ..... No pin 3) IC ..... Internal connection (IC pin should be electrically open on the PC board)
4) Pin No. 37 and 51 are connected internally 5) NX ..... No extend pin 6) DL ..... Datum Line 7) 1G ~ 16G ..... Grid
(15G~1G)
1-1
1-2
1-3
1-4
1-5
1-6
1-7
2-1
2-2
2-3
2-4
2-5
2-6
2-7
3-1
3-2
3-3
3-4
3-5
3-6
3-7
4-1
4-2
4-3
4-4
4-5
4-6
4-7
5-1
5-2
5-3
5-4
5-5
5-6
5-7
16G 15G~1G
P1
PRESET 1-1
P2 STEREO 2-1
P3 TUNED 3-1
P4 AUTO 4-1
P5 MEMORY 5-1
P6 RDS 1-2
P7 PS 2-2
P8 PTY 3-2
P9 RT 4-2
P10 CT 5-2
P11 PTY HOLD 1-3
P12 TIMER 2-3
P13 SLEEP 3-3
P14 – 4-3
P15 – 5-3
P16 – 1-4
P17 – 2-4
P18 – 3-4
16G 15G~1G
P19 – 4-4
P20 – 5-4
P21 – 1-5
P22 – 2-5
P23 – 3-5
P24 REP 4-5
P25 S 5-5
P26 F 1-6
P27 PROG 2-6
P28
RANDOM 3-6
P29 A 4-6
P30 5-6
P31 B 1-7
P32 TITLE 2-7
P33 ARTIST 3-7
P34 TRACK 4-7
P35 CD-TEXT 5-7
1G2G3G4G5G6G7G8G
16G
9G10G11G12G13G14G15G
PRESET STEREO AUTO PTYPS RT CT REP S F PROG A B RANDOM
a1
b™
PATTERN AREA
TIMER SLEEP MEMORY TUNED PTY HOLD TITLE ARTIST TRACK CD-TEXT
RDS
