Yamaha CRX-E300 - Dimensions; Specifications; Internal View

7
CRX-E300
CRX-E300
217 (8-9/16")
160 (6-5/16")
8
(5/16")
168
(
6-5/8"
)
15
(9/16")
22
(7/8")
275 (10-13/16")
312
(
12-5/16"
)
Unit : mm (inch)
単位:mm（インチ）
12
3
45
67 8 9
■ SPEAKER Section / スピーカー部 (NX-E300)
Type / 型式
................................. 2 Way Bass-reflex Magnetic Shielding Type
Driver / スピーカーユニット
Woofer ................................................... 11cm (4-1/2") Cone Type
Tweeter ..................................................... 2.5cm (1") Dome Type
Frequency Response / 再生周波数帯域
.............................................................................. 60 Hz to 28 kHz
Impedance / インピーダンス
............................................................................................ 6 ohms
Nominal Input / 許容入力
............................................................................................... 40 W
Maximum Input / 最大入力
............................................................................................. 110 W
Sensitivity / 出力音圧レベル
................................................................................85 dB/2.83V/m
Crossover Frequency / クロスオーバー周波数
...............................................................................................3 kHz
Input Terminal / 入力端子
....................................................................... Screw/Banana Type
Dimensions / 外形寸法 (W x H x D)
................................ 165 x 255 x 183 mm (6-1/2" x 10" x 7-3/16")
Weight / 質量
........................................................................ 3.4 kg (7 lbs. 8 oz.)
Finish / 仕上げ
................................................................. High Gloss Piano Finish
Accessories / 付属品
................................................................. Speaker Cable (4m) x 2
* Specifications are subject to change without notice due to
product improvements.
U .......... U.S.A.model C ...... Canadianmodel
A .......... Australianmodel B ...... Britishmodel
G .......... Europeanmodel R ...... Generalmodel
K .......... Koreanmodel J ....... Japanesemodel

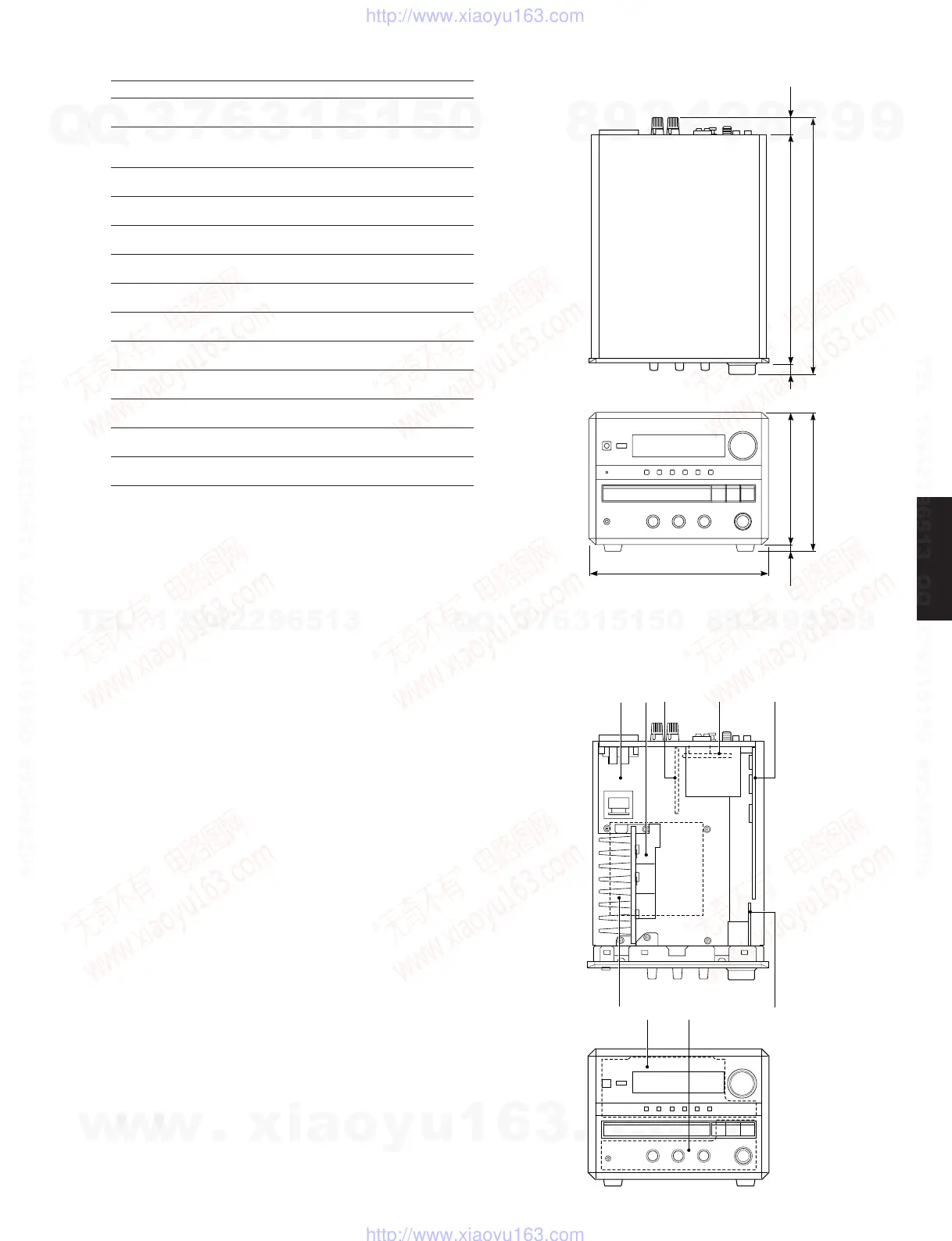

･DIMENSIONS
■ INTERNALVIEW
1 MAIN(1)P.C.B.
2 MAIN(2)〜(4)P.C.B.
3 MAIN(5)P.C.B.
4 MAIN(8)P.C.B.[R,Kmodelsonly]
5 INPUT(1)P.C.B.
6 CDP.C.B.
7 OPERATIONP.C.B.
8 INPUT(2)P.C.B.
9 INPUT(3)P.C.B.
