22
After completing all connections, plug the AC power cord
into a convenient AC outlet.
Unplug the AC power cord from the AC outlet if this unit is
not to be used for a long period of time.
AC OUTLETS
SWITCHED
I00W MAX. TOTAL
200W MAX.
UNSWITCHED
IMPEDANCE SELECTOR
: 4
MIN. /SPEAKER
A B : 4
MIN. /SPEAKER
A OR B : 4
MIN. /SPEAKER
: 4
MIN. /SPEAKER
EFFECT : 6
MIN. /SPEAKER
SET BEFORE POWER ON
MAIN
CENTER
REAR
FRONT
: 8
MIN. /SPEAKER
A B : 4
MIN. /SPEAKER
A OR B : 8
MIN. /SPEAKER
: 8
MIN. /SPEAKER
EFFECT : 8
MIN. /SPEAKER
MAIN
CENTER
REAR
FRONT
A B
A OR B
+
FRONT REAR
(SURROUND)
VOLTAGE SELECTOR
To AC outlet
(General model)

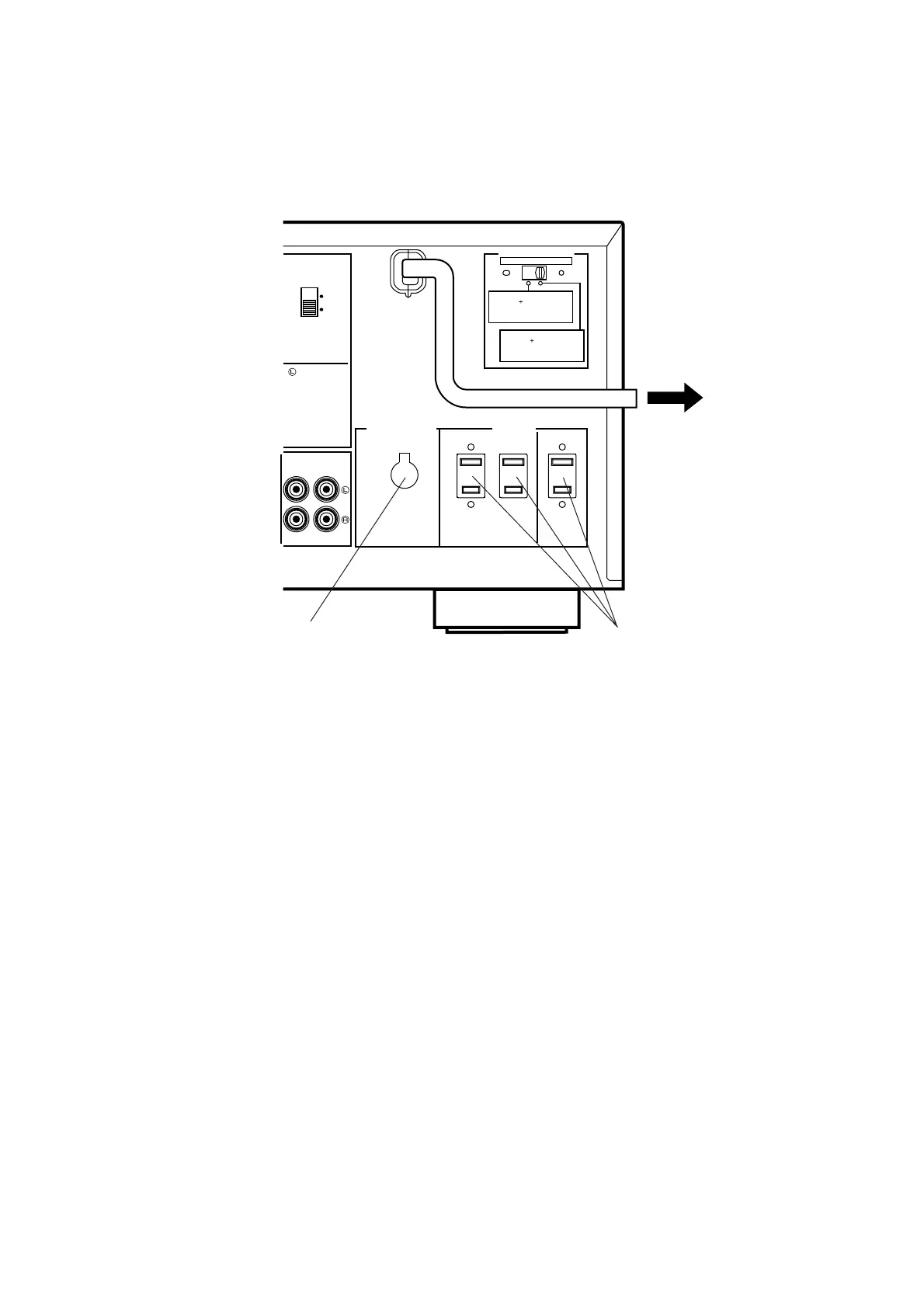

PLUGGING IN THIS UNIT
AC OUTLET(S)
(U.S.A., Canada, China and General models)
.......................................................... 2 SWITCHED OUTLETS
1 UNSWITCHED OUTLET
(Europe, U.K. and Australia models)
............................................................. 1 SWITCHED OUTLET
Use these to connect the power cords from your components
to this unit.
The power to the SWITCHED outlets is controlled by this unit’s
STANDBY/ON switch or the provided remote control
transmitter’s SYSTEM POWER ON and STANDBY keys.
These outlets will supply power to any connected unit
whenever this unit is turned on.
The maximum power (total power consumption of components)
that can be connected to the SWITCHED AC OUTLET(S) is as
follows.
U.S.A. model: 120W
Except U.S.A. model: 100W
The power to the UNSWITCHED outlet is not controlled by this
unit’s STANDBY/ON switch or the provided remote control
transmitter’s SYSTEM POWER ON and STANDBY keys. This
outlet will supply power to the connected unit even if this unit is
in the standby mode.
The maximum power (total power consumption of components)
that can be connected to the UNSWITCHED AC OUTLET is as
follows.
U.S.A. and Canada models: 180W
China and General models: 200W
Voltage Selector (China and General Models
only)
The voltage selector on the rear panel of this unit must be
set for your local main voltage BEFORE plugging into the
AC main supply.
Voltages are 110/120/220/240 V AC, 50/60 Hz.
*
1
*
2
*
1
*
2
