25
English

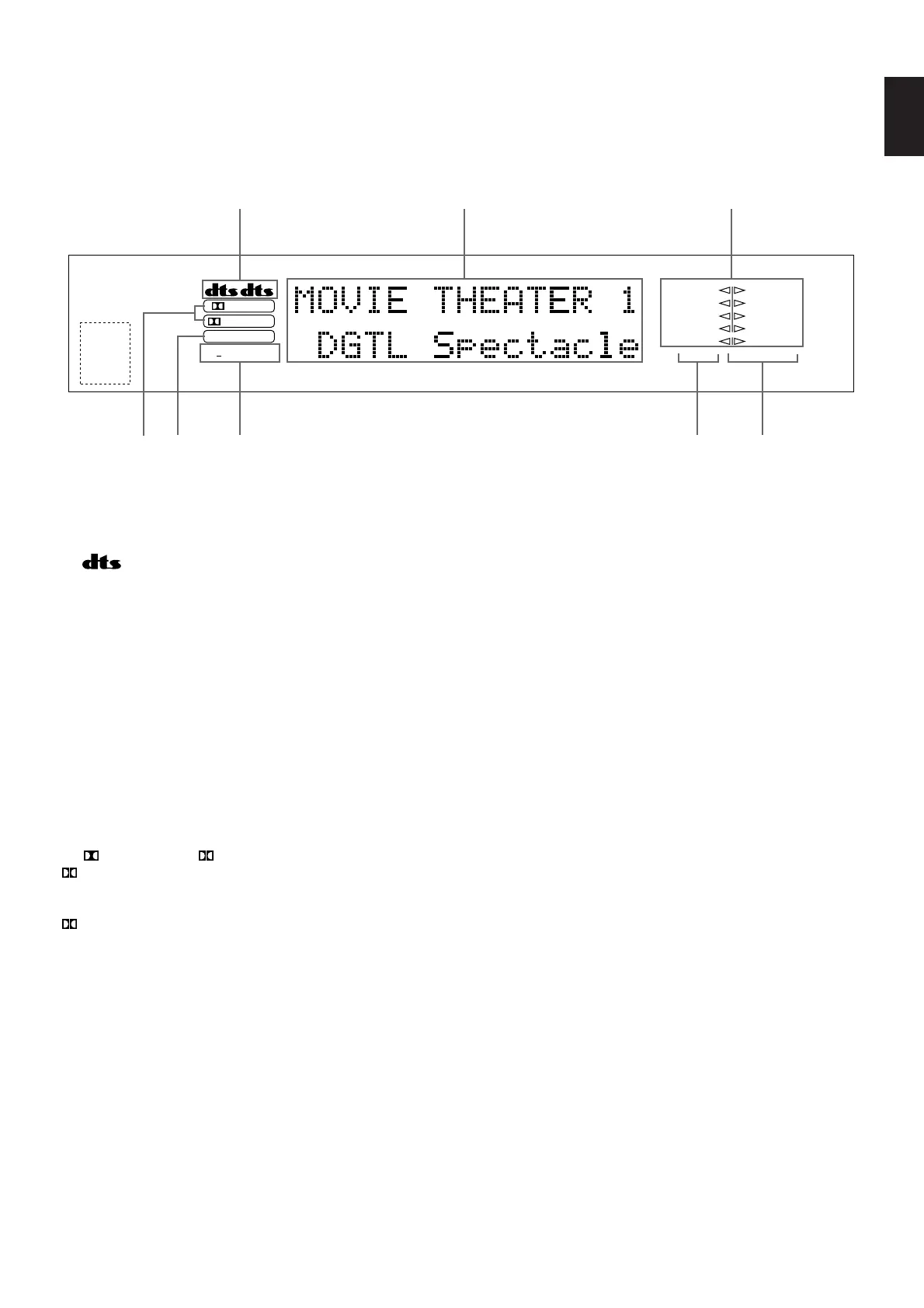

DISPLAY PANEL
DIGITAL
PRO LOGIC
DSP
DIGITAL SOURCE
AC 3 DTS PCM
TV/DBS
VCR 1
VCR 2
DVD/VCR 3
V
-
AUX
SLEEP
LD
MD/TAPE 1
TUNER
CD
PHONO
TAPE 2 MON
2 31
546 78
1 indicators
When the built-in DTS decoder is on, either dts indicator lights
up. Red “dts” indicator lights up when playing a compact disc
or laserdisc encoded with the DTS. Orange “dts” indicator
lights up when playing a DVD encoded with the DTS.
* On a DVD/LD combi-player, if you play a laserdisc encoded
with the DTS after playing a Video-CD, DVD, etc., the
orange “dts” indicator may light up.
2 Multi-information display
Shows the currently selected DSP program, or information for
several adjustments or setting changes made on this unit.
3 Input source indicators
Show the currently selected input source by the arrow-shaped
cursor.
4 DIGITAL and PRO LOGIC indicators
DIGITAL” lights up when the built-in Dolby Digital (AC-3)
Decoder is on and the signals of selected source encoded with
the Dolby Digital (AC-3) is not in 2-channels.
PRO LOGIC” lights up when the built-in Dolby Pro Logic
Surround Decoder is on.
5 DSP indicator
“DSP” lights up when the built-in digital sound field processor
is on.
6 Digital audio input signal indicators
These indicators show the type of digital signal currently input
to this unit.
When PCM digital audio signals are input to this unit, “PCM”
lights up.
When digital audio signals encoded with the Dolby Digital
(AC-3) are input to this unit, “AC-3” lights up.
When digital audio signals encoded with the DTS are input to
this unit, “DTS” lights up.
7 SLEEP indicator
Lights up while the built-in SLEEP timer is functioning.
8 TAPE 2 MON indicator
Lights up when the tape deck (or MD recorder etc.) connected
to the TAPE 2 PLAY/REC AUDIO SIGNAL terminals on the
rear of this unit is selected as the input source by pressing the
TAPE 2 MON/EXT. DECODER button.
