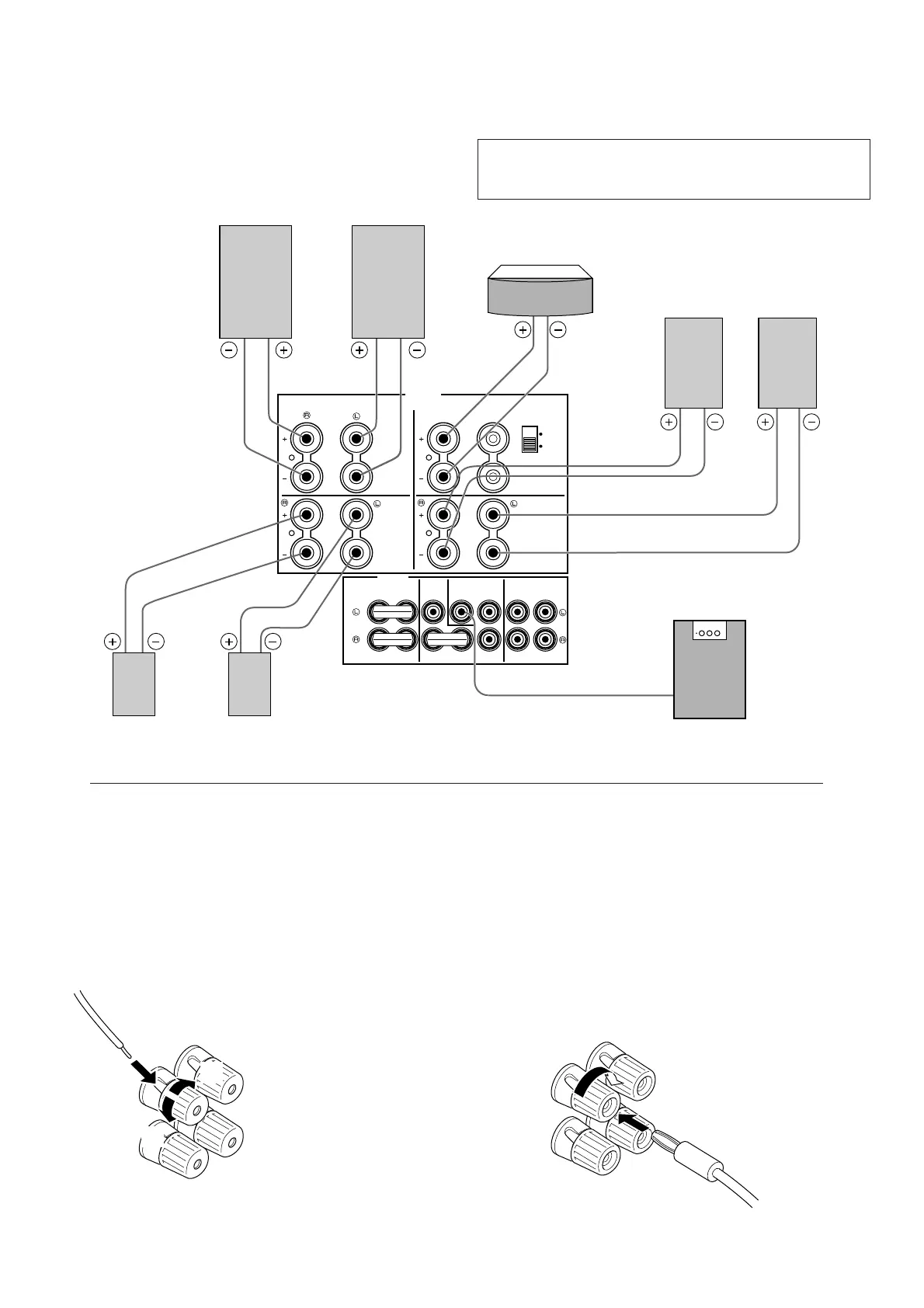

CONNECTING SPEAKERS
SPEAKERS
CAUTION SEE INSTRUCTION MANUAL FOR CORRECT SETTING.
MAIN
FRONT
CENTER
REAR
(SURROUND)
A B
AB
A OR B
+
PRE
OUT
MAIN
IN
MAIN CH CENTER SUBWOOFER
OUT MONO
OUT IN
FRONT REAR
(SURROUND)
SPLIT
COUPLER
Center speaker
Front effect speakers
Left
Right
Left
Right
Main speakers
Rear speakers
Subwoofer system
Left
Right
Use speakers with the specified impedance shown on the
rear of this unit.
Red: positive (+)
Black: negative (–)
➀
Unscrew the knob.
➁
Insert the bare wire.
[Remove approx. 5mm
(1/4”) insulation from
the speaker wires.]
➂
Tighten the knob and
secure the wire.
<U.S.A., Canada, China, Australia and General models
only
>
Banana Plug connections are also possible. Simply insert the
Banana Plug connector into the corresponding terminal.
1
2
3
How to Connect:
Connect the SPEAKERS terminals to your speakers with wire of the proper gauge, cut as short as possible. If the connections are
faulty, no sound will be heard from the speakers. Make sure that the polarity of the speaker wires is correct, that is the + and –
markings are observed. If these wires are reversed, the sound will be unnatural and lack bass.
Caution
Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or
speakers.

Yamaha DSP-A1 Specifications

General

Surround Sound	Dolby Digital, DTS, Dolby Pro Logic
Frequency Response	10 Hz-100 kHz +0, -3 dB
Total Harmonic Distortion	0.015%
Signal to Noise Ratio	96 dB
Output	Pre-out
Speaker Load Impedance	4-16 ohms
Digital Inputs	Coaxial, Optical
Video Inputs	Composite, S-Video
Dimensions	171 mm
Input Sensitivity	200mV (line)
