Yamaha DSP-A1 User Manual

36
m Preset value of the CINEMA Equalizer
L, C, R EQ
HIGH: FRQ ..................... 12.7 kHz
GAIN .................................... –3 dB
PEQ: FRQ ....................... 12.7 kHz
GAIN .................................... –4 dB
FRONT, REAR EFCT EQ
HIGH: FRQ ..................... 12.7 kHz
GAIN ...................................... 0 dB
PEQ: FRQ ......................... 8.0 kHz
GAIN .................................... –3 dB

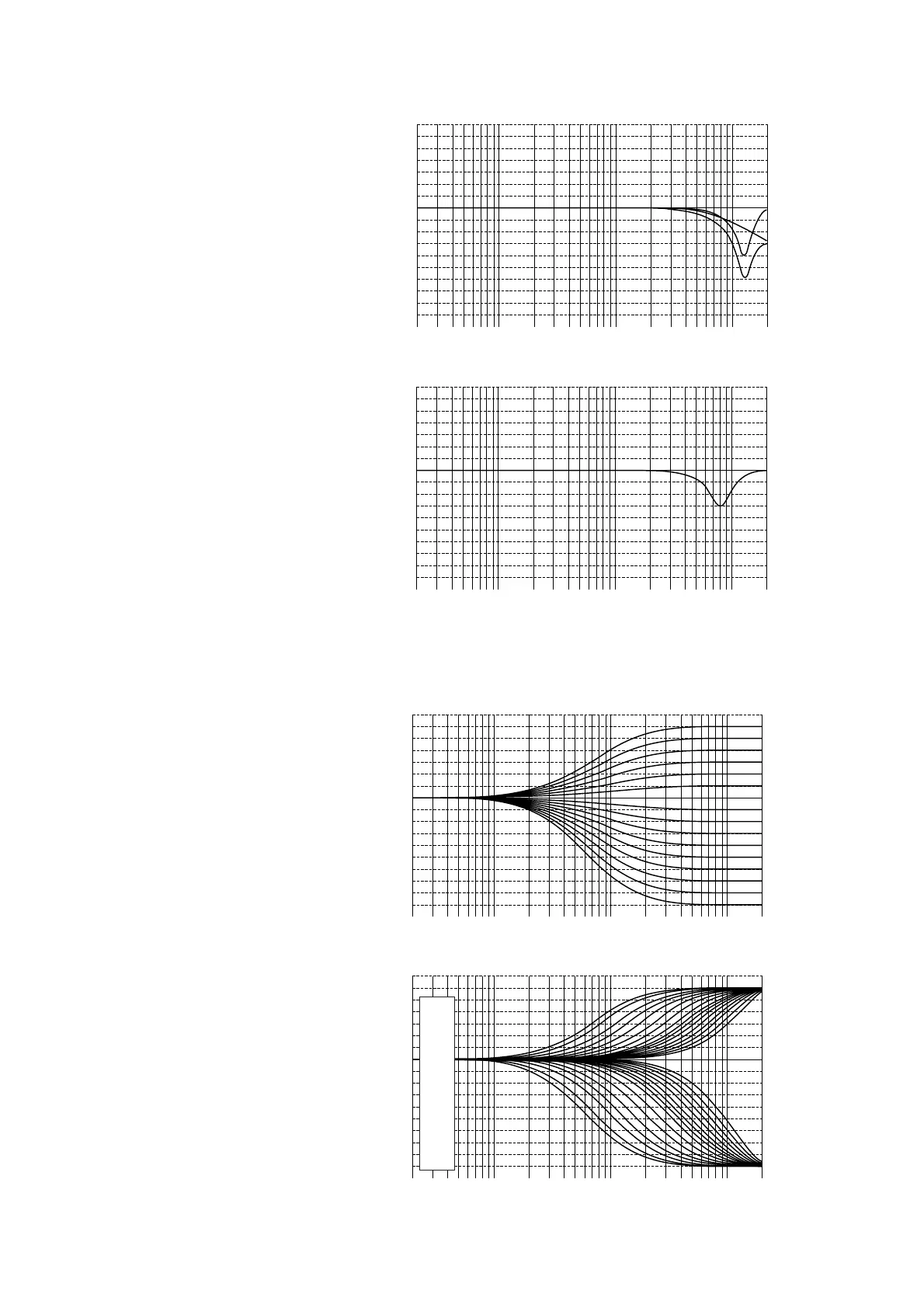

m Frequency characteristics
The following curves show frequency characteristics when the High-shelving equalizer (HIGH) is adjusted at the indicated values.
HIGH: FRQ ....................... 1.0 kHz
GAIN ..................... +6 dB to –9 dB
HIGH: FRQ .... 1.0 kHz to 12.7 kHz
GAIN ......................... +6 dB/–9 dB
GAIN (dB)
+
6
+
3
0
–
3
–
6
–
9
20 50 100 200 500 1k 2k 5k 10k 20k
HIGH
PEQ
+
6
+
3
0
–
3
–
6
–
9
20 50 100 200 500 1k 2k 5k 10k 20k
PEQ
HIGH
HIGH
+
PEQ
(OVERALL)
Frequency (Hz)
GAIN (dB)
Frequency (Hz)
GAIN (dB)
+
6
+
3
0
–
3
–
6
–
9
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
GAIN (dB)
+
6
+
3
0
–
3
–
6
–
9
20 50 100 200 500 1k 2k 5k 10k 20k
FREQ.
POINTS
1.0k
1.2k
1.6k
2.0k
2.5k
3.2k
4.0k
5.0k
5.7k
6.3k
7.1k
8.0k
9.0k
10.1k
11.3k
12.7kH
Frequency (Hz)

Yamaha DSP-A1 Specifications

General

Surround Sound	Dolby Digital, DTS, Dolby Pro Logic
Frequency Response	10 Hz-100 kHz +0, -3 dB
Total Harmonic Distortion	0.015%
Signal to Noise Ratio	96 dB
Output	Pre-out
Speaker Load Impedance	4-16 ohms
Digital Inputs	Coaxial, Optical
Video Inputs	Composite, S-Video
Dimensions	171 mm
Input Sensitivity	200mV (line)
