If your LD player has an AC-3 RF signal output jack, connect it
to this unit’s AC-3 RF SIGNAL input jack. Audio signals encoded
with the Dolby Surround AC-3 are input to this unit by this
connection.
*
To play back an LD source decoding its AC-3 RF signal, set the
input mode of LD player to “AUTO” or “AC-3 RF”. (See page 46
for details.)
It is also necessary to connect the LD player to this unit’s
OPTICAL digital audio signal input jack and/or analog audio signal
input jacks regardless of the AC-3 RF signal connection, for playing
back an LD source with the Dolby Pro Logic Surround decoded or in
normal stereo (or monaural).
NOTE: AC-3 RF audio input signal cannot be recorded by a tape
deck or VCR. To record an LD source, the LD player must be
connected to the OPTICAL digital audio signal input jack and/or
analog audio signal input jacks of this unit.
AC–3 RF
SIGNAL
AUDIO SIGNAL AUDIO SIGNAL VIDEO SIGNAL
GND
PHONO
LD
CD
1
CD
2
TUNER
3
TAPE
PB
4
REC
OUT
TAPE 1
3
TAPE
PB
4
REC
OUT
TAPE 2
COAXIAL
OPTICAL
CD
TAPE
PB
TAPE 1
REC
OUT
LD
LD
VIDEO S VIDEO
TV/DBS
IN
VCR 1
OUT
IN
VCR 2
OUT
IN
S-VIDEO OUT
VIDEO OUT
AUDIO OUT
AC-3 RF
OUTPUT
DIGITAL
OUT
LD player

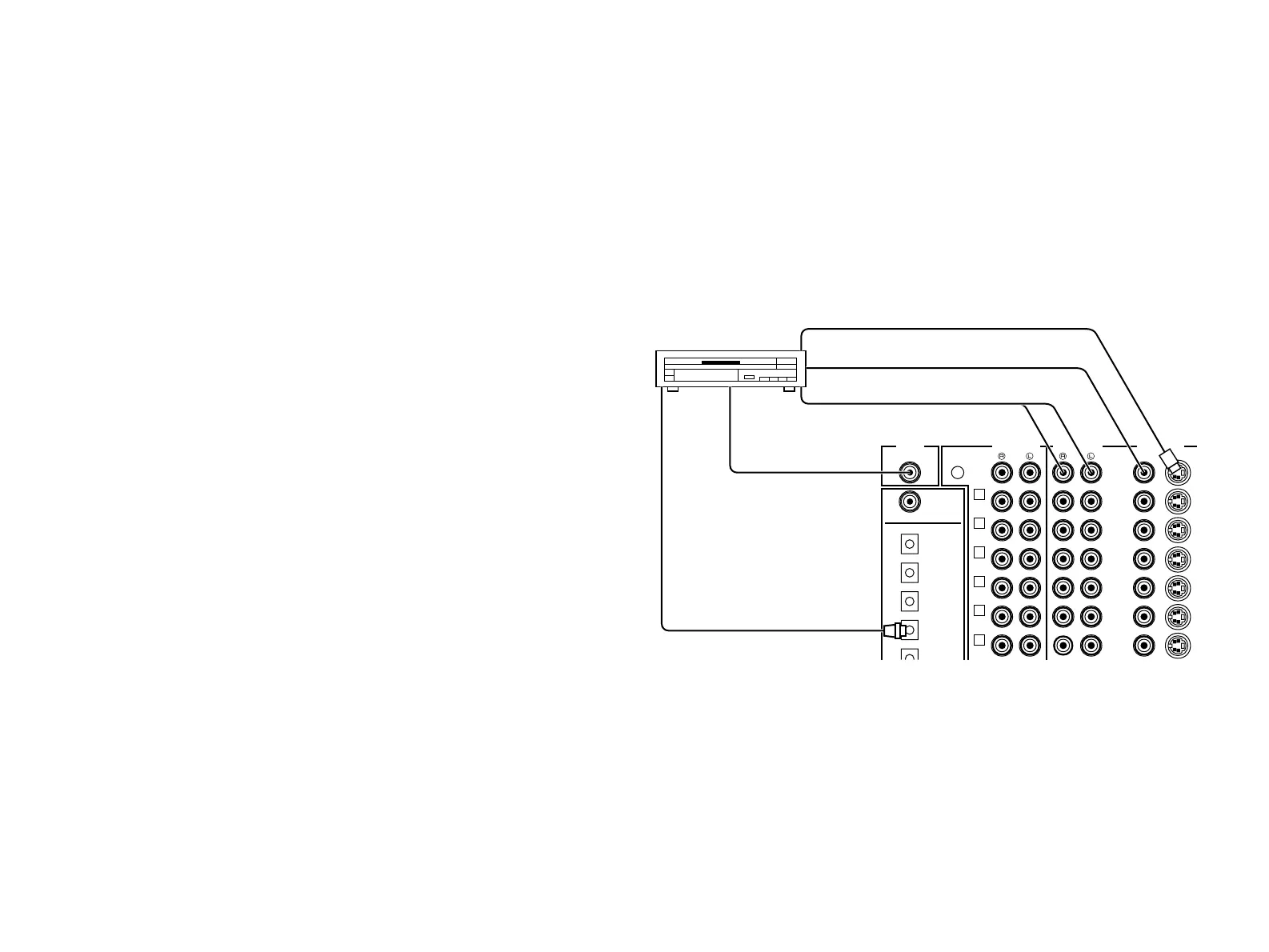

CONNECTING TO AC-3 RF OUTPUT OF THE LD PLAYER
