For connecting with a monitor TV that uses a 21 pin
connector for input (for Europe and U.K. models)

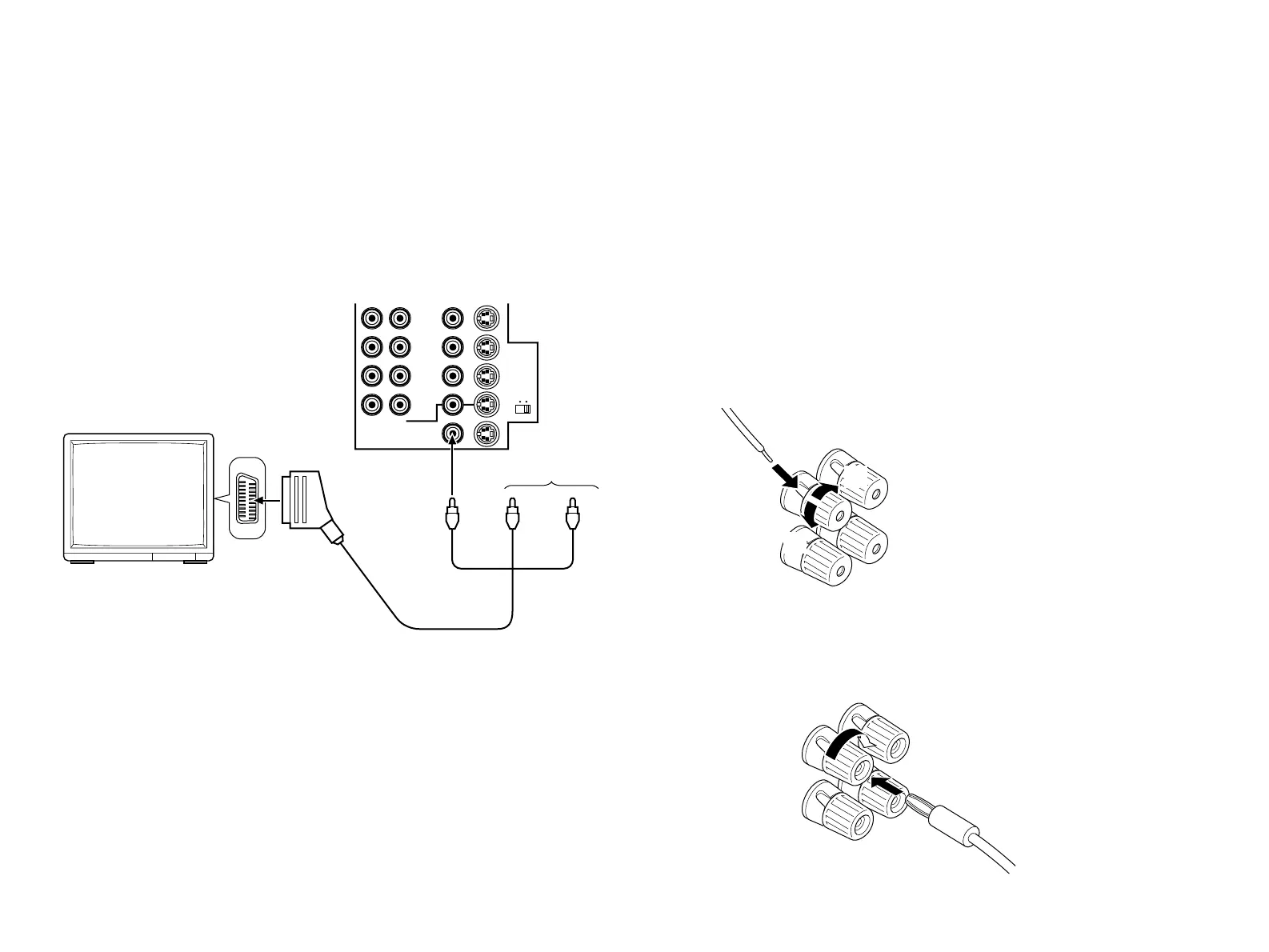

Make a connection as figured below with a commercially
available scart-plug connector cable.
CONNECTING SPEAKER SYSTEMS
Connect the SPEAKERS terminals to your speakers with wire of
the proper gauge, cut as short as possible. If the connections are
faulty, no sound will be heard from the speakers. Make sure that the
polarity of the speaker wires is correct, that is, + and – markings are
observed. If these wires are reversed, the sound will be unnatural
and will lack bass. Do not let the bare speaker wires touch each
other or any other metal part as this could damage this unit and/or
speakers.
NOTE: Use speakers with the specified impedance shown on the
rear of this unit.
Red: positive (+)
Black: negative (–)
➀
Unscrew the knob.
➁
Insert the bare wire.
[Remove approx. 5mm (1/4”)
insulation from the speaker
wires.]
➂
Tighten the knob and
secure the wire.
NOTE: Banana Plug connections are also possible (U.S.A., Canada,
Australia and General models only). Simply insert the Banana Plug
connector into the corresponding terminal.
