CONNECTING THE MAIN SPEAKERS TO THIS UNIT

Connect the MAIN speakers to the MAIN SPEAKERS terminals

of this unit. Make sure that the jumper bars between the PRE OUT

and MAIN IN jacks on the rear panel are in place. It is also possible

to use an external power amplifier if more power is desired. In this

case, remove the jumper bars and connect the PRE OUT jacks to

the INPUT jacks of a stereo power amplifier with a stereo pin cable—

making sure to connect the left and right channels correctly. Connect

the MAIN speakers to the speaker output terminals of the power

amplifier.

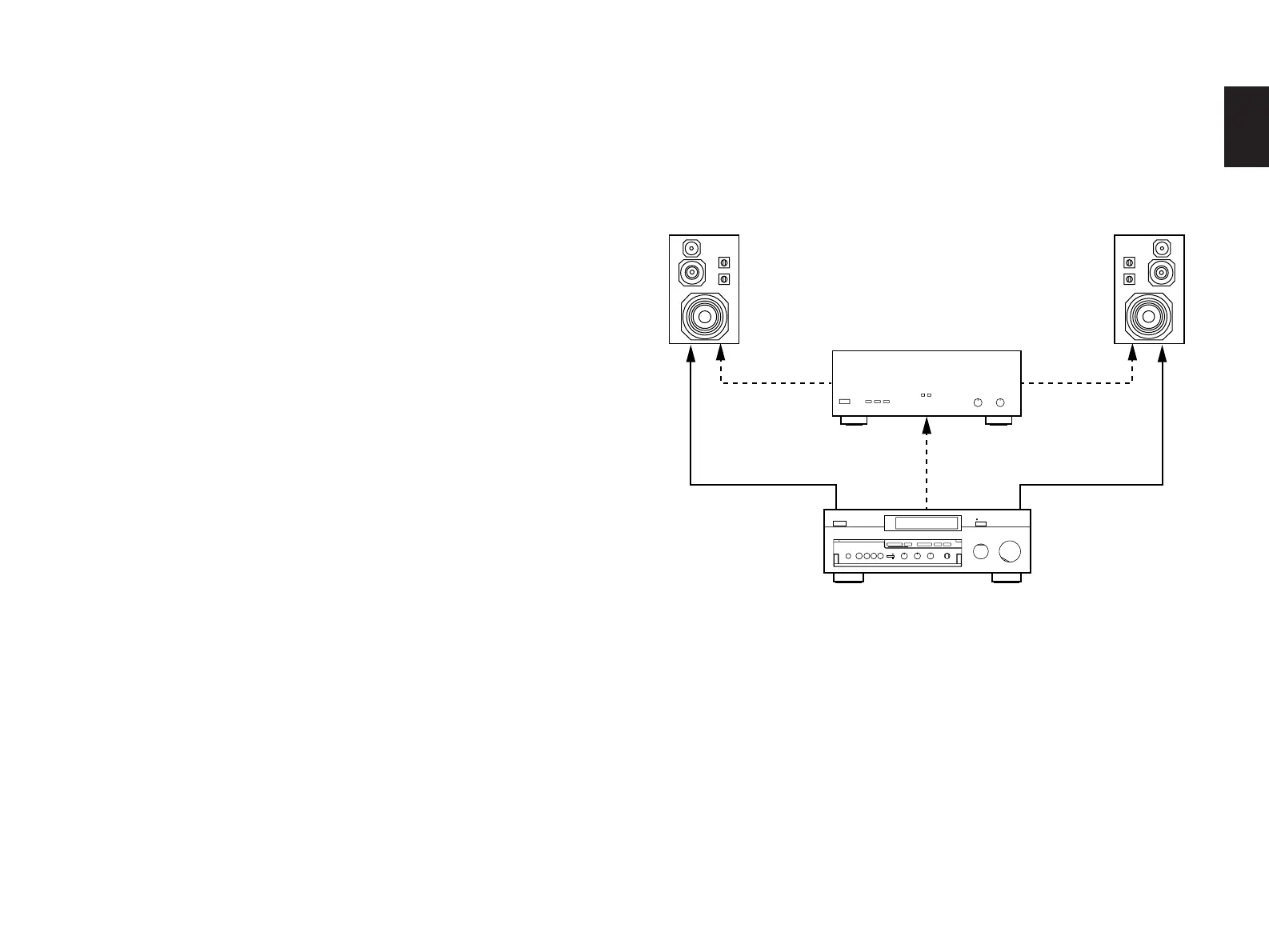

PRE OUT

INPUT

Main speaker

This unit

Main speaker

Power amplifier
