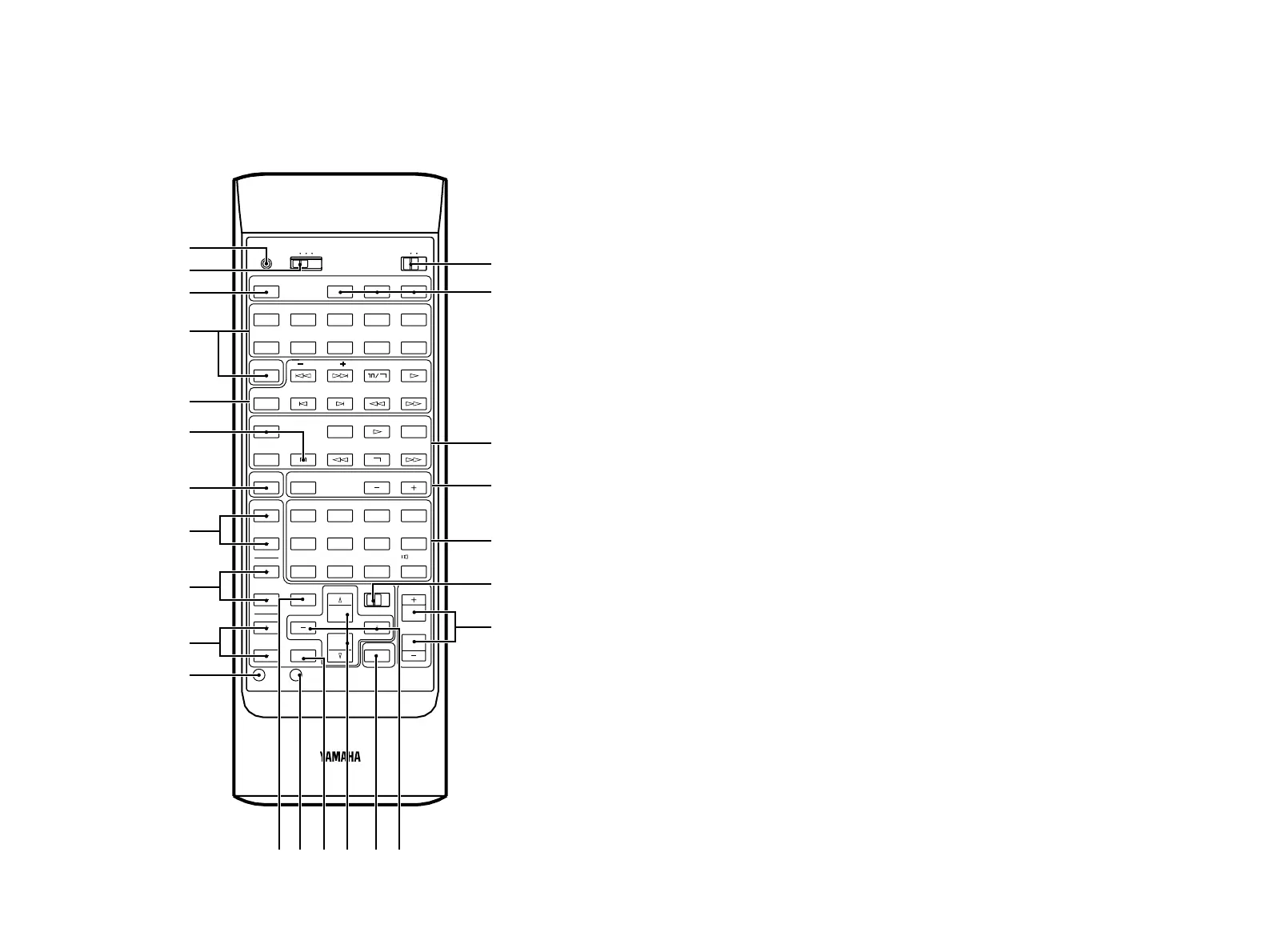

REMOTE CONTROL UNIT
1 TRANSMIT/LEARN Indicator
In “LEARN” mode, lights to indicate that the key just pressed is
ready for learning input. In “USER” mode, blinks when a learned
key is pressed to show that a control signal has been sent to your
equipment.
2 YPC/USER/LEARN Switch
Set to YPC for operating this unit and Yamaha Audio/Video units.
Set to USER for using learned key functions. Set to LEARN for
learning new control functions. (See page 64.)
(“YPC” is the abbreviation of YAMAHA Preset Code.)
3 POWER Key
Turns this unit on and off.
* (Europe, U.K. and Australia models only)
Turns the power on mode to the standby mode and vice versa.
4 Input Selector Keys
Select the input source. Pressing the key for the currently
selected source will change its input mode. (See page 45 for
details.)
5 CD/LD Function Keys
Operate functions on your Yamaha CD player and LD player.
When the 1/2 Switch is set to 1, they operate the CD player, and
when set to 2, they operate the LD player.
6 Blank Keys
Have no preset functions, so are used for learning other remote
controller’s functions only.
7 TEST Switch
When pressed, sends a signal to the main left, center, main
right, rear right effect and rear left effect speaker in turn, and
when pressed once again, sends a signal to the main and front
effect speakers in turn for easy comparison of level settings.
