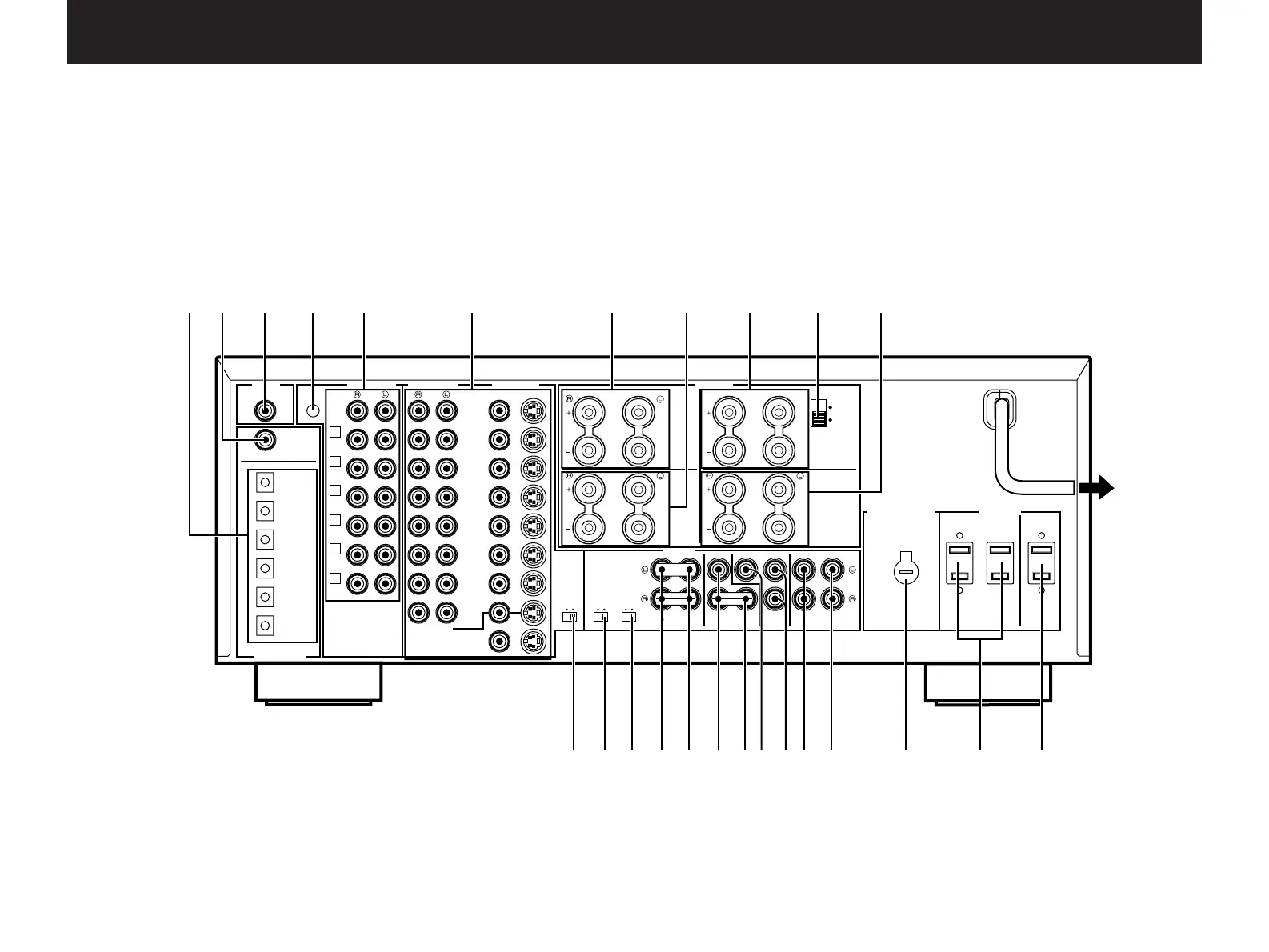

REAR PANEL PARTS AND THEIR FUNCTIONS
Before you start making connections make sure all related electronic components are turned OFF.
AC–3 RF
SIGNAL
AUDIO SIGNAL AUDIO SIGNAL VIDEO SIGNAL SPEAKERS
GND
PHONO
LD
CD
1
CD
2
TUNER
3
TAPE
PB
4
REC
OUT
TAPE 1
3
TAPE
PB
4
REC
OUT
TAPE 2
COAXIAL
OPTICAL
CD
TAPE
PB
TAPE 1
REC
OUT
LD
TV/DBS
VCR 3
/DVD
DIGITAL SIGNAL
LD
VIDEO S VIDEO
TV/DBS
IN
VCR 1
OUT
IN
VCR 2
OUT
IN
VCR 3/DVD
VCR 3/DVD OUT
CAN BE USED AS A 2ND
MONITOR OUT, IF SELECTED
BY SET MENU.
OUT
MONITOR
OUT
FRONT
MAIN
8 ΩMIN./ SPEAKER
8
ΩMIN./ SPEAKER
8
ΩMIN./ SPEAKER
REAR
CENTER
A B: 4 ΩMIN./ SPEAKER
A OR B: 8
ΩMIN./ SPEAKER
AB
+
A B
A OR B
+
5ch 7ch
ON OFF
FRONT
MIX
—I0dB 0dB
MAIN
LEVEL
PRE
OUT
MAIN
IN
MAIN CH
OUT IN FRONT
CENTER
MONO SPLIT
EFFECT
SUB
WOOFER
REAR
COUPLER
AC OUTLETS
SWITCHED
I00W MAX. TOTAL 200W MAX.
UNSWITCHED
VOLTAGE SELECTOR
PAL NTSC
To
AC outlet
B C D E F GHI K L M N OJ
12 3 4 5 6 7 8 9 0 A
(General Model)
CONNECTIONS
