AC OUTLET(S) (SWITCHED)
Europe model......................................................... 2 OUTLETS
U.K. model ................................................................ 1 OUTLET
Use these to connect the power cords from your components to
this unit.
The power to the AC OUTLET(S) is controlled by this unit’s
STANDBY/ON or the provided remote control’s POWER and
STANDBY. These outlets will supply power to any connected
component whenever this unit is turned on.
The maximum power (total power consumption of components)
that can be connected to the AC OUTLET(S) is 100 watts.
CONNECTIONS
Never plug in this unit and other components until all connections have been completed.
CONNECTIONS WITH OTHER COMPONENTS
Use RCA-type pin plug cables for connecting audio/video components with the exception described later.
When making connections between this unit and other components, be sure all connections are made correctly, that is to say L
(left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual for each component to be connected to this unit.

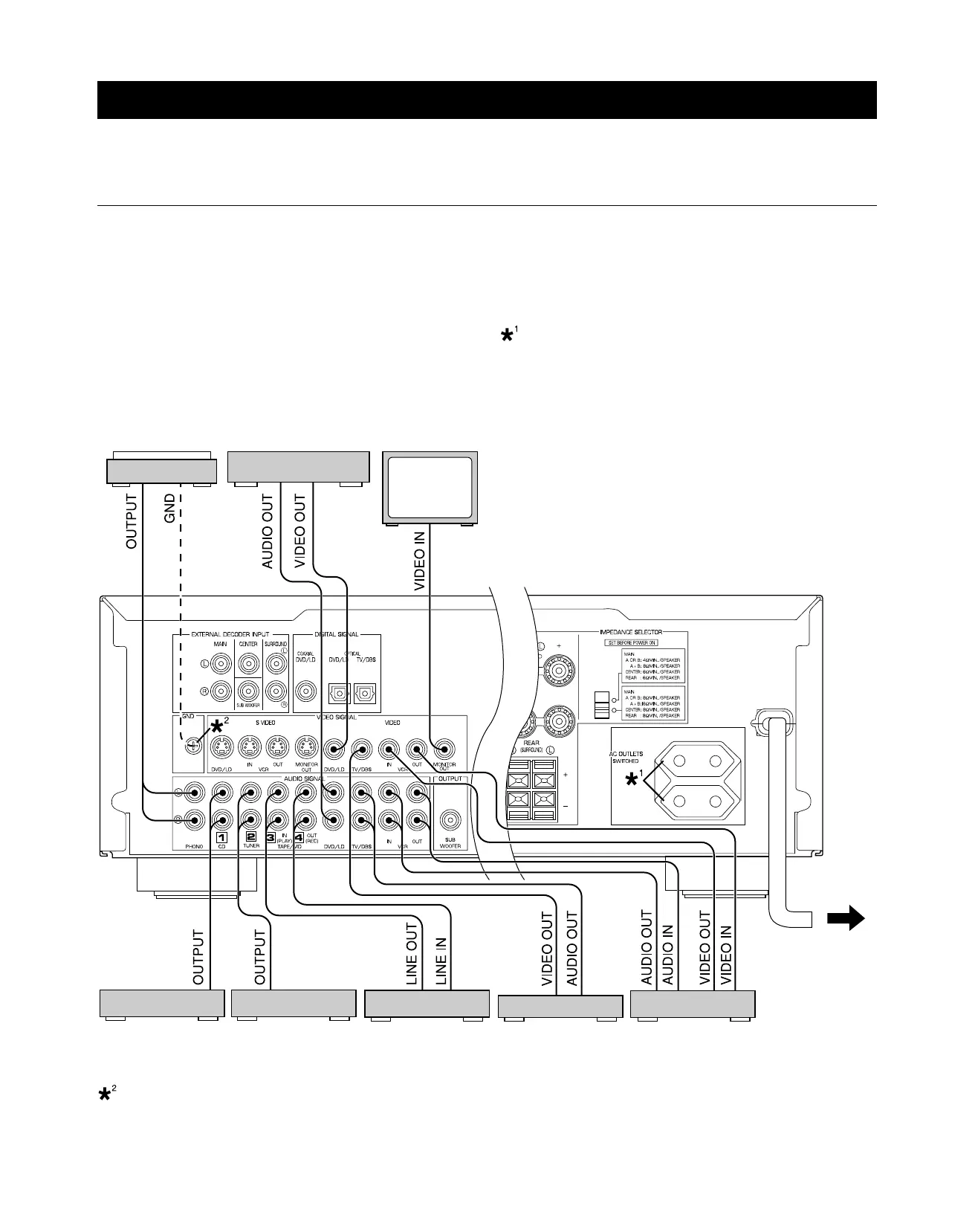

* If you have YAMAHA components numbered as !, @, #, $, etc. on the rear panel, connections can be made easily by making
sure to connect the output (or input) terminals of each component to the same-numbered terminals of this unit.
.
Turntable Monitor TV
DVD player,
LD player, etc.
CD player Tape deck,
MD recorder, etc.
TV/DBS tuner VCR
(Video cassette recorder)
To AC outlet
(Europe model)
GND terminal (for turntable use)
Connecting the ground (earth) wire of the turntable to the GND terminal will normally minimize hum, but in some cases, better
results may be obtained with the ground wire disconnected.
