15
English

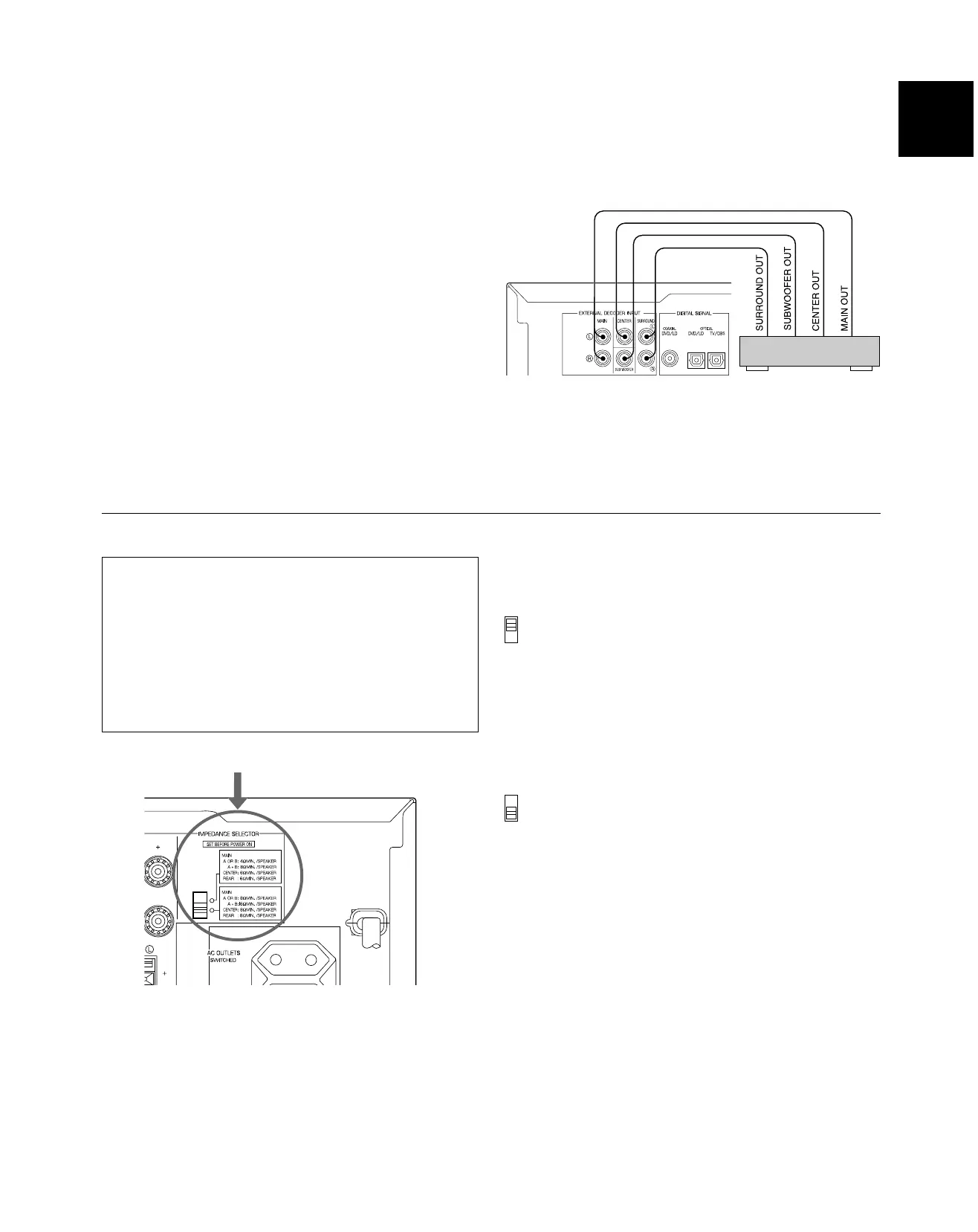

CONNECTING TO AN EXTERNAL DECODER
This unit is equipped with additional 6-channel audio signal
input terminals for inputting signals from an external decoder to
this unit.
Connect the 6-channel audio signal output terminals of the
decoder to the EXTERNAL DECODER INPUT terminals of this
unit.
Notes
• When signals input to these terminals are selected, the digital
sound field processor cannot be used.
• The settings of “CNTR”, “REAR”, “MAIN” and “BASS” in the
SET MENU mode have no effect on the signals input to these
terminals. The setting of “M.LVL” is effective. (Refer to
page 18 for details.)
• Adjustment of the output level of the center speakers, rear
speakers and subwoofer is effective when the signals input to
these terminals are selected as the input source. (Refer to
page 31 for details.)
External decoder with
6-channel discrete
outputs
(Europe model)
WARNING
Do not change the IMPEDANCE SELECTOR switch setting
while the power to this unit is on, otherwise this unit may be
damaged.
If this unit fails to turn on when the STANDBY/ON switch is
pressed, the IMPEDANCE SELECTOR switch may not be
fully set to either end. If so, set the switch to either end fully
when this unit is in the standby mode.
Select the position whose requirements your speaker system
meets.
(Upper position)
Main: If you use one pair of main speakers, the impedance of
each speaker must be 4 Ω or higher.
If you use two pairs of main speakers, the impedance
of each speaker must be 8 Ω or higher.
Center: The impedance of the speaker must be 6 Ω or higher.
Rear: The impedance of each speaker must be 6 Ω or
higher.
(Lower position)
Main: If you use one pair of main speakers, the impedance of
each speaker must be 8 Ω or higher.
If you use two pairs of main speakers, the impedance
of each speaker must be 16 Ω or higher.
Center: The impedance of the speaker must be 8 Ω or higher.
Rear: The impedance of each speaker must be 8 Ω or
higher.
IMPEDANCE SELECTOR SWITCH
IMPEDANCE SELECTOR
(Europe model)
01DSP-A595a-2 6/24/99, 12:15 PM15
