14
S
S

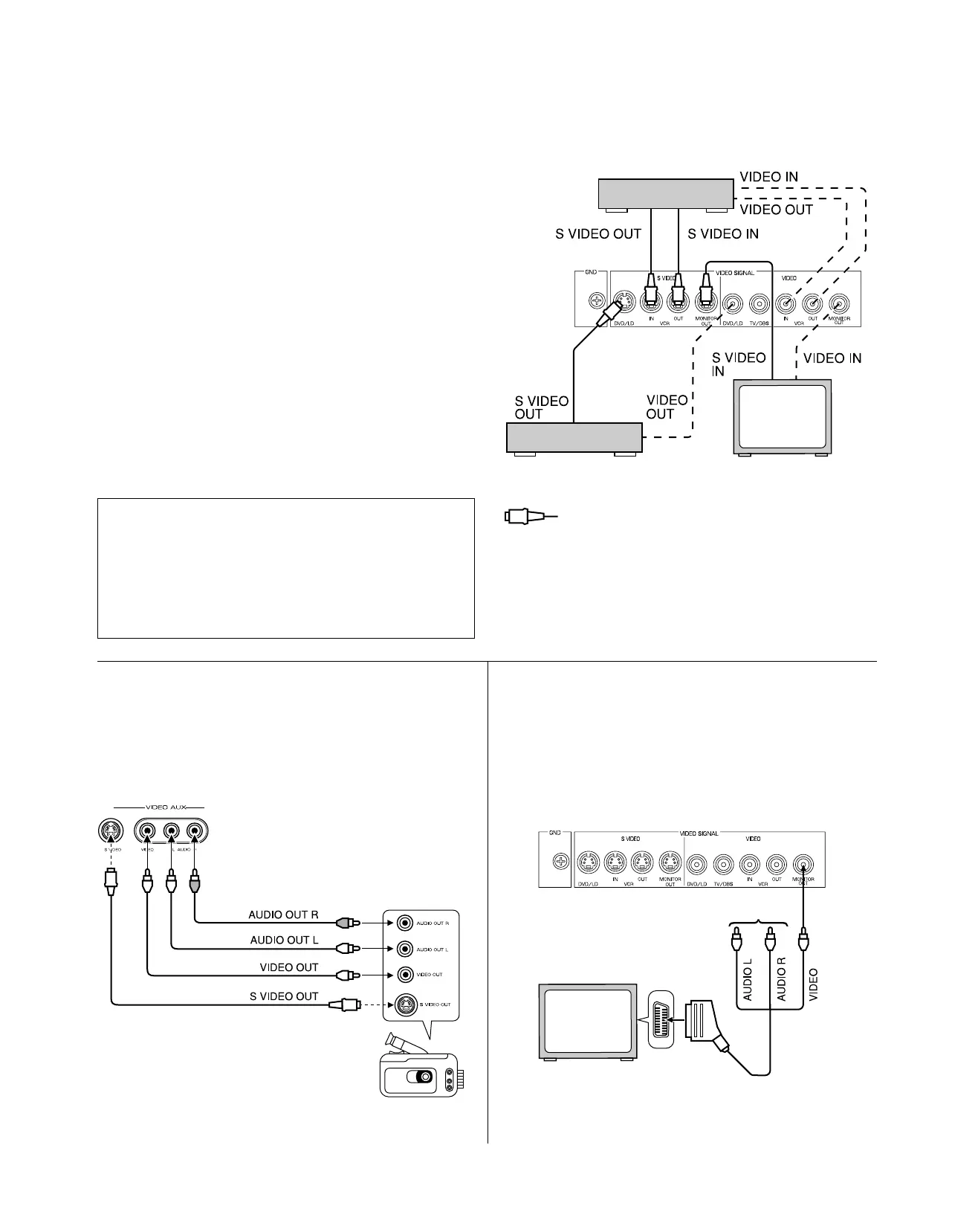

CONNECTING TO S VIDEO TERMINALS
If you have a VCR and a monitor equipped with “S” (high-
resolution) video terminals, those terminals can be connected
to this unit’s S VIDEO terminals. Connect the VCR’s “S” video
input and output terminals to this unit’s S VIDEO VCR OUT and
IN terminals, respectively, and connect the monitor’s “S” video
input terminal to this unit’s S VIDEO MONITOR OUT terminal.
Otherwise, connect the VCR’s composite video terminals to this
unit’s composite video terminals, and connect the monitor’s
composite video input terminal to this unit’s composite
MONITOR OUT terminal.
In addition, if you have a DVD or LD player equipped with an
“S” video terminal, connect the DVD/LD player’s “S” video
output terminal to this unit’s S VIDEO DVD/LD terminal.
Note
If video signals are sent to both S VIDEO input and com-
posite input terminals, the signals will be sent to their
respective output terminals.
S VIDEO terminals
This unit provides you with S VIDEO terminals in addition
to standard VIDEO terminals.
S VIDEO terminals transmit video signals separated into
luminance (Y) signals and color (C) signals. In comparison
with S VIDEO terminals, standard VIDEO terminals transmit
“composite” video signals.
Monitor TV
S
S S S
S
Camcorder
CONNECTING TO VIDEO AUX TERMINALS
(ON THE FRONT PANEL)
These terminals are used to connect any video input source
such as a camcorder to this unit.
CONNECTING WITH A MONITOR TV THAT
USES A 21-PIN CONNECTOR FOR INPUT
Make a connection as shown below with a commercially
available SCART-plug connector cable.
Monitor TV
No connection
SCART-plug connector cable
DVD/LD player
S VIDEO cable
VCR
01DSP-A595a-2 6/24/99, 12:15 PM14
To Next Page
