Yamaha DSP-AX430 - Page 19

RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
19
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
9
0 DE
9 D0 E
RX-V430RDS/HTR-5540RDS

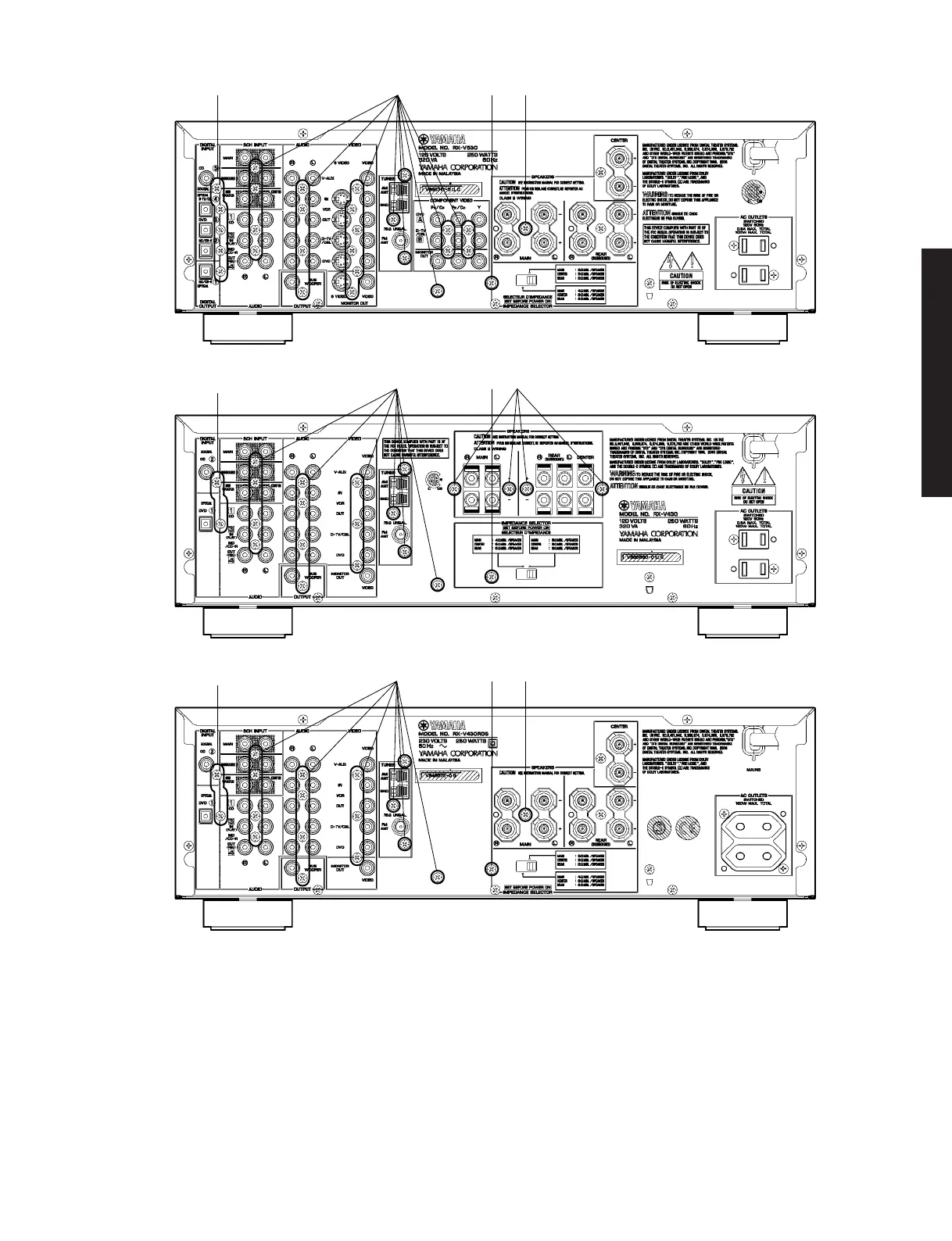

Fig. 3
5. RX-V530/RX-V530RDS/HTR-5550/HTR-
5550RDS/DSP-AX530:FUNCTION（1）〜（4）、
FUNCTION（10）、VIDEO（1）、VIDEO（2）
P.C.B.、TUNERの外し方
 
 0
 A
 


5. RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/
DSP-AX530: Removal of FUNCTION (1) ~ (4),
FUNCTION (10), VIDEO (1) and VIDEO (2) P.C.B.s
and Tuner
a. Remove CB312. (Fig. 4)
b. Remove 22 screws (0). (Fig. 3)
c. Remove 1 screw (A). (Fig. 4)
d. Remove FUNCTION (1) ~ (4), FUNCTION (10), VIDEO
(1) and VIDEO (2) P.C.B.s. and the Tuner. (Fig. 4)
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
9
D0 E
RX-V430/HTR-5540/DSP-AX430
