Yamaha DSP-AX430 User Manual

RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
31
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430

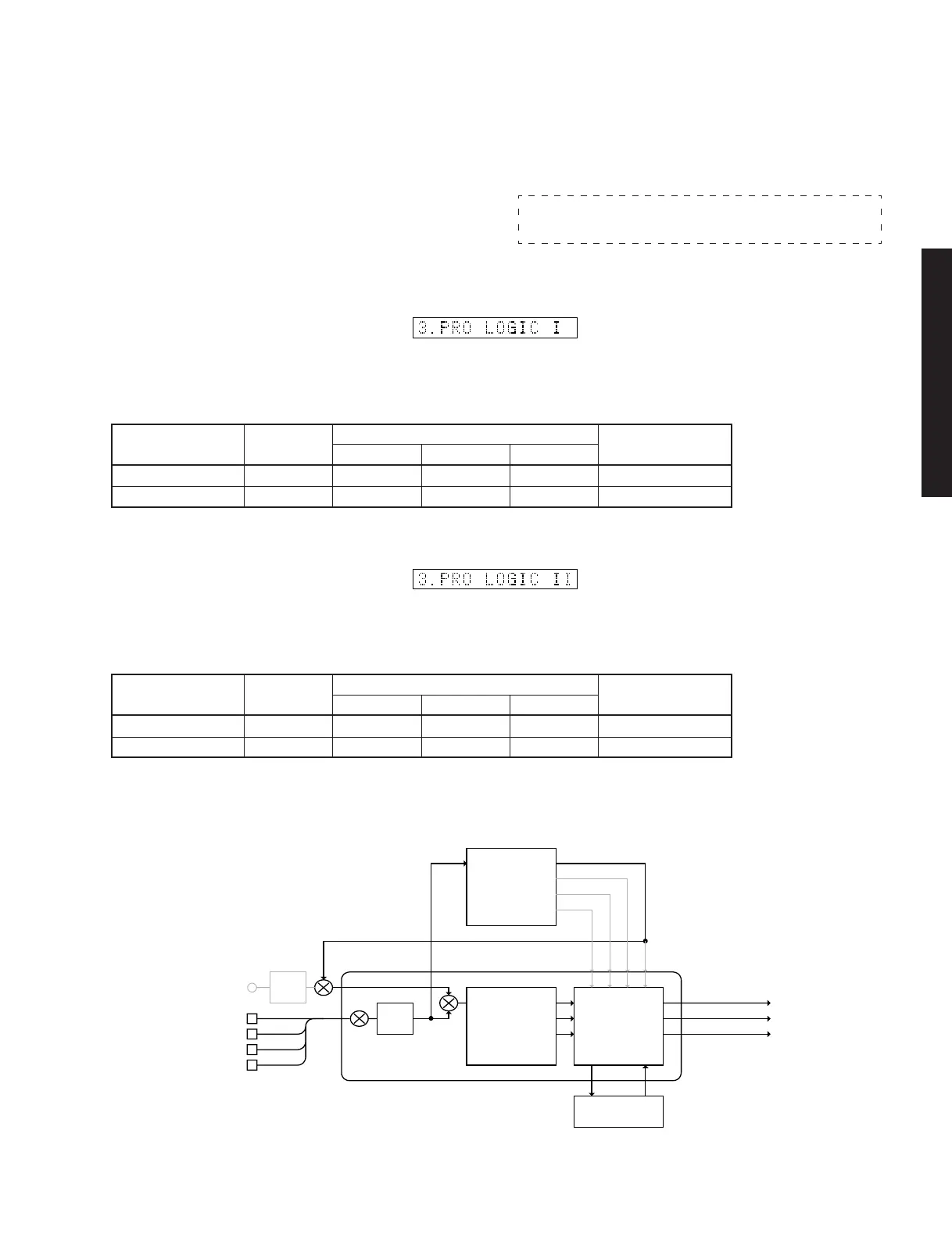

3. PRO LOGIC
The L/C/R/RL/RR signals undergo the Pro-Logic
processing and C/RL/RR signals are output through Sub
DSP-DRAM. Main DSP is selected for MAIN L/R output.
Using the sub-menu, it is possible to select PRO LOGIC I,
II (Movie). The Auto Input Balance function is always off.
The LFE signal is not output when decoding in the PRO
LOGIC I, II mode.
PRO LOGIC II
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
3. PROLOGIC



III



III
PROLOGICII
PRO LOGIC I PROLOGICI
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Each ch, -20 dBV -10 dB +14.2 dBV - ∞ - ∞ - ∞
Both ch, -20 dBV -10 dB - ∞ +17.0 dBV - ∞ - ∞
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Each ch, -20 dBV -10 dB +14.2 dBV - ∞ - ∞ - ∞
Both ch, -20 dBV -10 dB - ∞ +17.0 dBV - ∞ - ∞
A/D
DIR
YSS938
Main DSP
Pro Logic I/II
or DD
Sub DSP
Through
CS49329
AAC
4Mbit DRAM
L/R
C/SW
RL/RR
Analog
Digital
Dolby Pro Logic (Auto)
