RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
32
Reference data
INPUT: DVD ANALOG (Both ch)

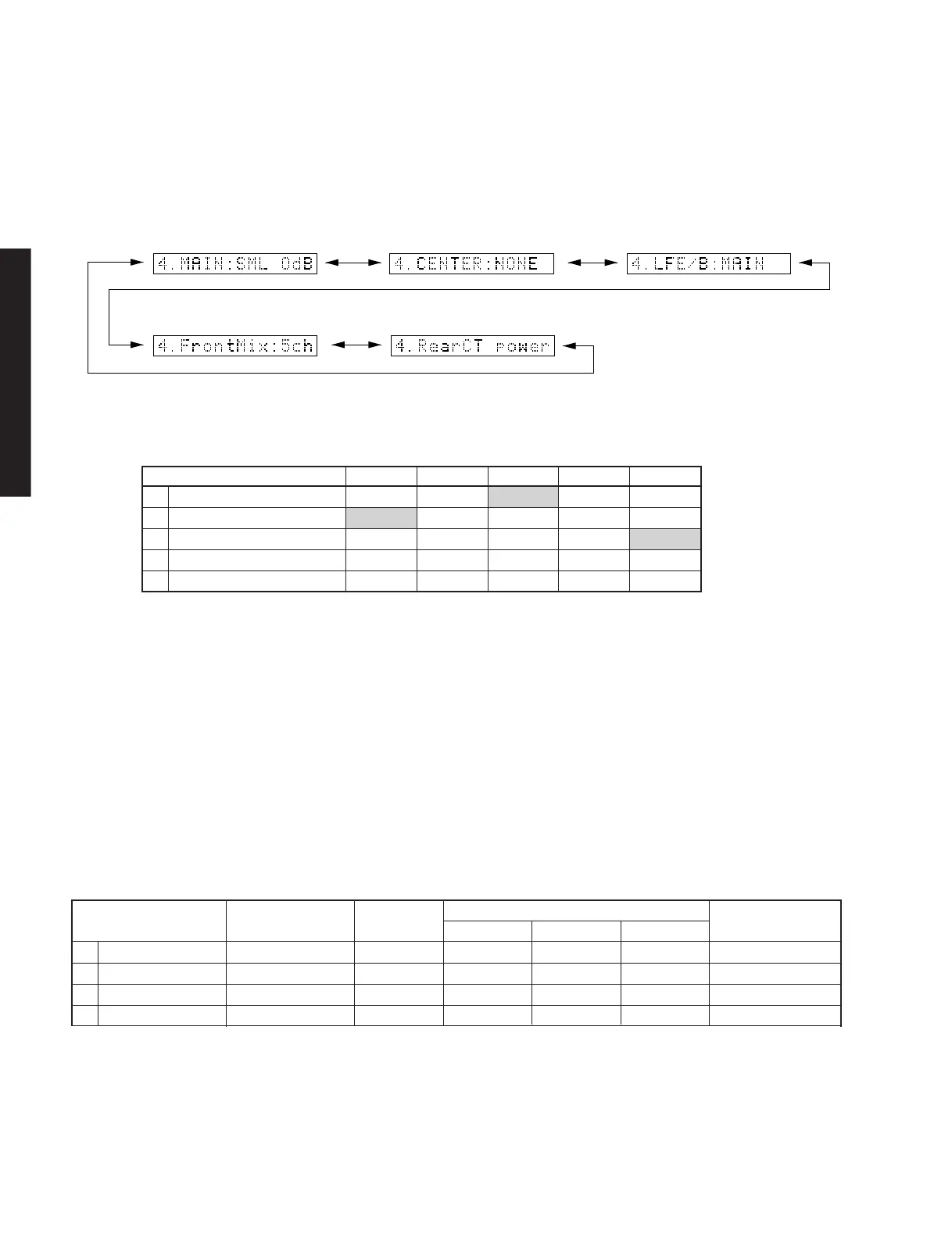

Sub-menu
CENTER SP REAR SP MAIN SP
MAIN LEVEL
LFE/BASS
1 MAIN: SMALL 0dB LARGE LARGE SMALL 0dB SWFR
2 CENTER: NONE NONE LARGE LARGE 0dB BOTH
3 LFE/BASS: MAIN SMALL SMALL LARGE 0dB MAIN
4 FRONT MIX: 5CH LARGE LARGE LARGE 0dB BOTH
5 REAR CENTER: POWER LARGE LARGE LARGE 0dB BOTH
4. SPEAKERS SET
The input signal is automatically identified and switched in
the priority order of dts → DOLBY DIGITAL → AAC →
PCM AUDIO → Analog (A/D) according to the signal
detection.
The signals output from the DSP block are the same as 1.
DSP THROUGH: YSS 0dB.
LARGE: This mode is used with a speaker with high
bass reproduction performance (a large
unit). Full bandwidth signals are output.
SMALL: This mode is used with a speaker with low
bass reproduction performance (a small
unit). The signals of 90Hz or less are mixed
into the channel specified by LFE/BASS.
NONE: This mode is used with no center speaker.
The center content is reduced by 3dB and
distributed to MAIN L/R.
The analog switch settings for each sub-menu are as
shown in the table below.
MAIN: SMALL 0dB
Front Mix: 5ch
REAR CENTER (Not used in this model)
LFE/BASS:MAIN
4. SPEAKERSSET
Sub-menu Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
1 MAIN: SMALL 0dB
1kHz/90Hz Both ch, -20 dBV
-10 dB
+14.8/+11.5 dBV
- ∞ - ∞ - ∞
2 CENTER: NONE
1kHz Both ch, -20 dBV
-10 dB +11.9 dBV +14.1 dBV - ∞ - ∞
3 LFE/BASS: MAIN
50Hz Both ch, -20 dBV
-10 dB +13.0 dBV - ∞ - ∞ - ∞
4 FRONT MIX: 5CH
1kHz Both ch, -20 dBV
-10 dB +24.0 dBV - ∞ - ∞ - ∞
To Next Page
