Yamaha DSP-AX430 - Page 33

RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
33
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430

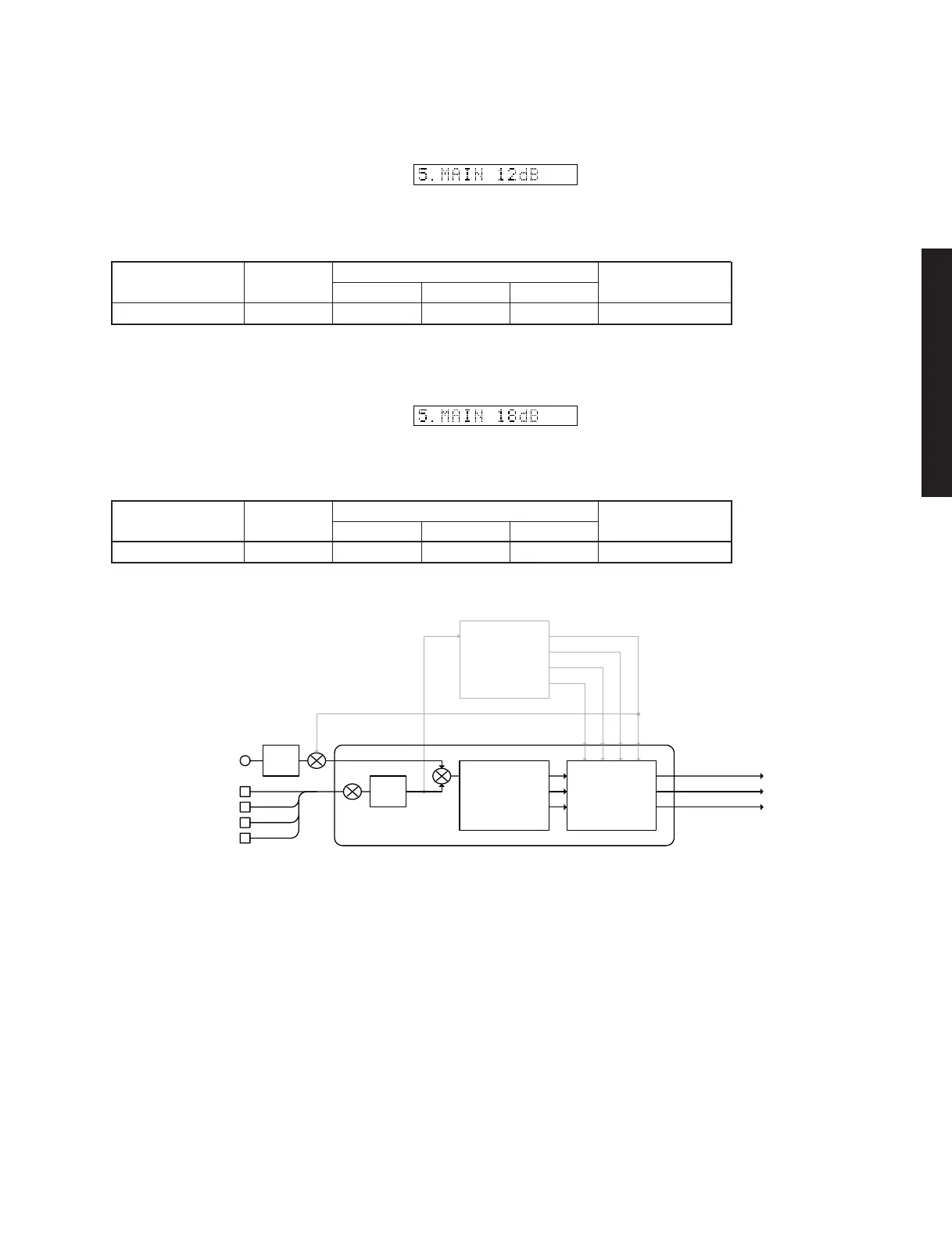

5. MARGIN CHECK
The signal is output including the head margin.
MAIN 12dB MARGIN
5. MARGINCHECK

MAIN12dBMARGIN
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
MAIN 18dB MARGIN MAIN18dBMARGIN
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
A/D
DIR
YSS938
Main DSP
Thr/DD/dts
Sub DSP
Through
CS49329
L/R
C/SW
RL/RR
Analog
Digital
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBV -10 dB +14.0 dBV - ∞ - ∞ - ∞
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBV -10 dB +14.0 dBV - ∞ - ∞ - ∞
