RX-V559/HTR-5950/DSP-AX559
22
RX-V559/HTR-5950/
DSP-AX559
DIAG menu selection
ダイアグメニューの選択
RX-V559/DSP-AX559 models
U, C models R, T, K, A, G, E, L, J models
HTR-5950 model
SUB-MENU selection
サブメニューの選択
Reverse
逆送り
Forward
順送り
Reverse
逆送り
Forward
順送り
Reverse
逆送り
Forward
順送り
U, C models T, A models
Reverse
逆送り
Forward
順送り
Reverse
逆送り
Forward
順送り
Reverse
逆送り
Forward
順送り
• Functions in DIAG mode
In addition to the DIAG menu items, functions as listed
below are available.
Input selection
Center/Rear/Rear Center/Sub-woofer level adjustment
Speaker relay control of A and B
Muting
Power on/off
Master volume
* Functions related to the tuner and the set menu are not
available.
* It is possible to confirm Menu No.16 IF STATUS while
keeping the signal process (operation status) of each
DIAG menu by using the INPUT MODE key of the main
unit.
●ダイアグ中の機能
ダイアグメニューの他に、以下の機能が動作します。
インプット切り換え
センター、リア、リアセンター、サブウーファーレベル調整
スピーカーリレーA/B
ミューティング
パワーオン/オフ
マスターボリューム
チューナー関連、セットメニュー関連は機能しません。
本体のINPUTMODEキーにより、各ダイアグメニューの信
号処理(動作状態)を維持したままメニューN o .16IF
STATUSの確認ができます。
• Initial settings used to start DIAG
The following settings are used when starting DIAG.
When DIAG is canceled, these settings are restored to
those before starting DIAG.
Master volume: -20 dB
Input: DVD (MULTI CH INPUT OFF)
Effect level: 0 dB
Audio mute: OFF
Speaker relay of A and B: ON
Speaker setting: LARGE / BASS OUT = SWFR
DIAG menu: BYPASS (1. ANALOG BYPASS)
●ダイアグ開始時の初期設定
ダイアグ開始時に以下のような設定になります。ダイアグ解除時
にはダイアグ開始前の状態に戻ります。
マスターボリューム:-20dB
インプット:DVD(MULTICHINPUTオフ)
エフェクトレベル:0dB
オーディオミュート:オフ
スピーカーリレーA/B:ON
スピーカー設定:LARGE/BASSOUT=SWFR
ダイアグメニュー:BYPASS(1.ANALOGBYPASS)

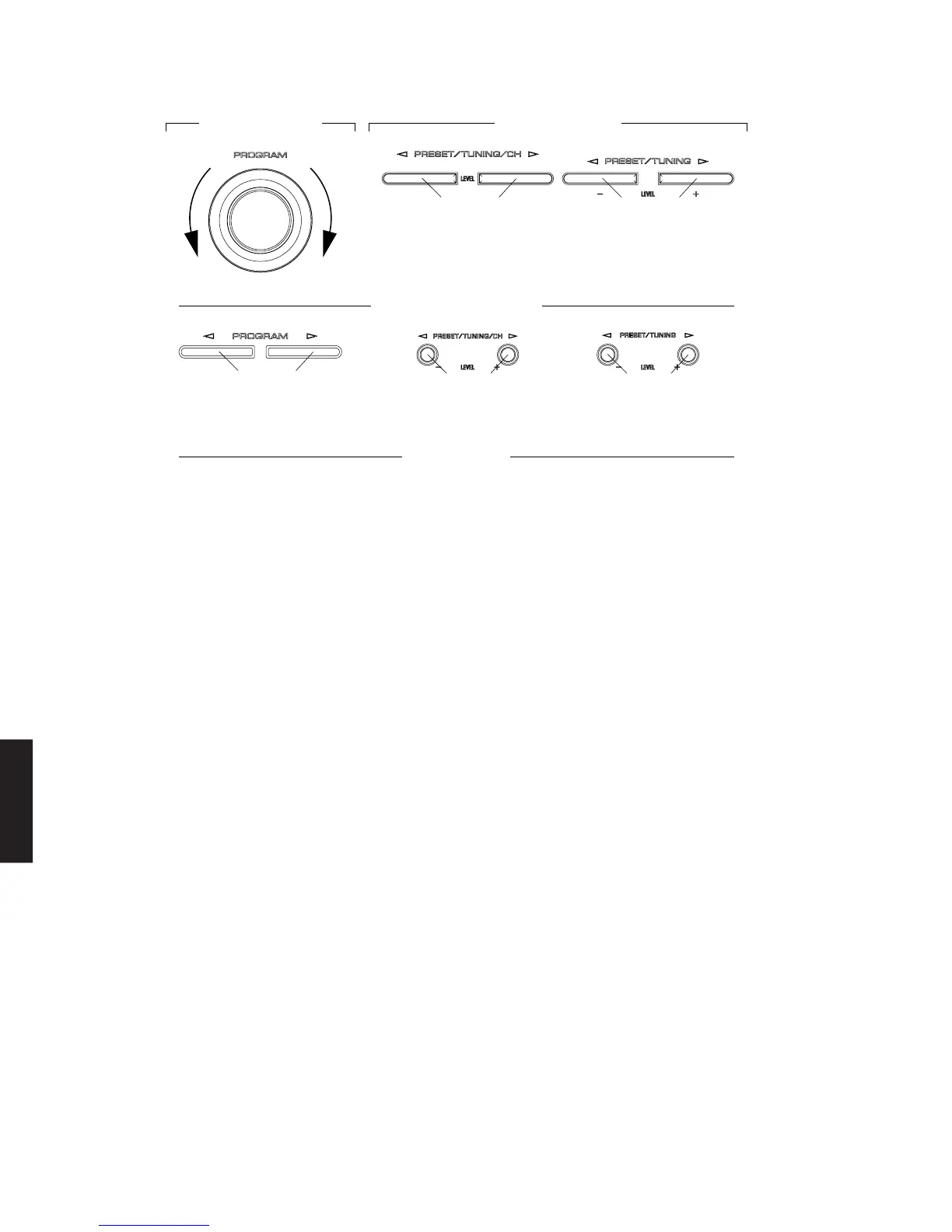

Keys of main unit / 本体キー
