E
2-2
EMU01206

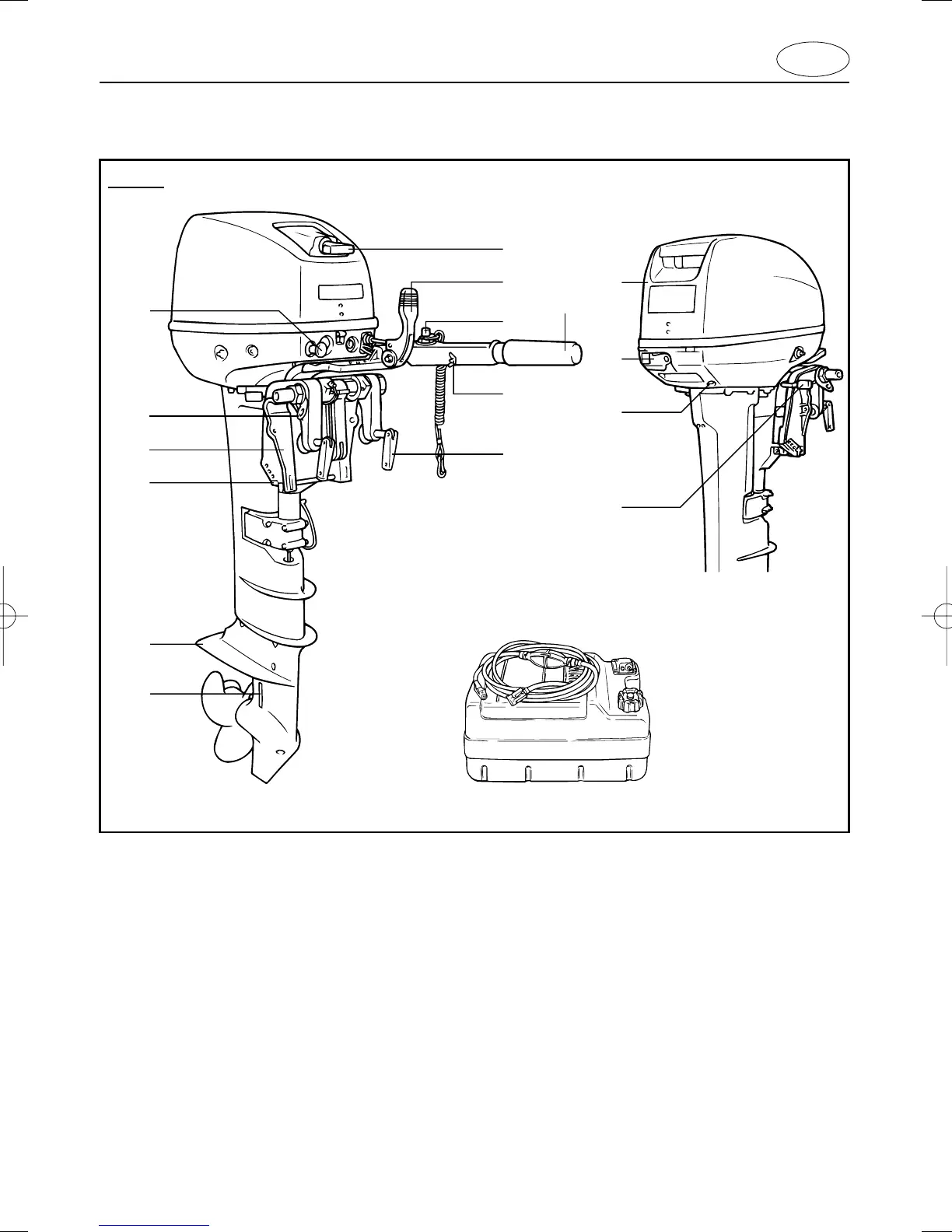

MAIN COMPONENTS
!1
!3
!2
!4
u
o
y
i
!0
t
!5
!6
q
w
e
r
!7
1 Top cowling
2 Cowling lock lever
3 Cooling water pilot hole
4 Tilt lock lever
5 Recoil starter handle
6 Gear shift lever
7 Engine stop button/
Engine stop lanyard switch
8 Throttle control grip
9 Throttle friction knob
0 Clamp screw
q Choke knob
w Rope attachment
e Clamp bracket
r Trim angle adjusting rod
t Anti-cavitation plate
y Cooling water inlet
u Fuel tank
* May not be exactly as shown; also may not be
included as standard equipment on all
models.
9.9, 15
