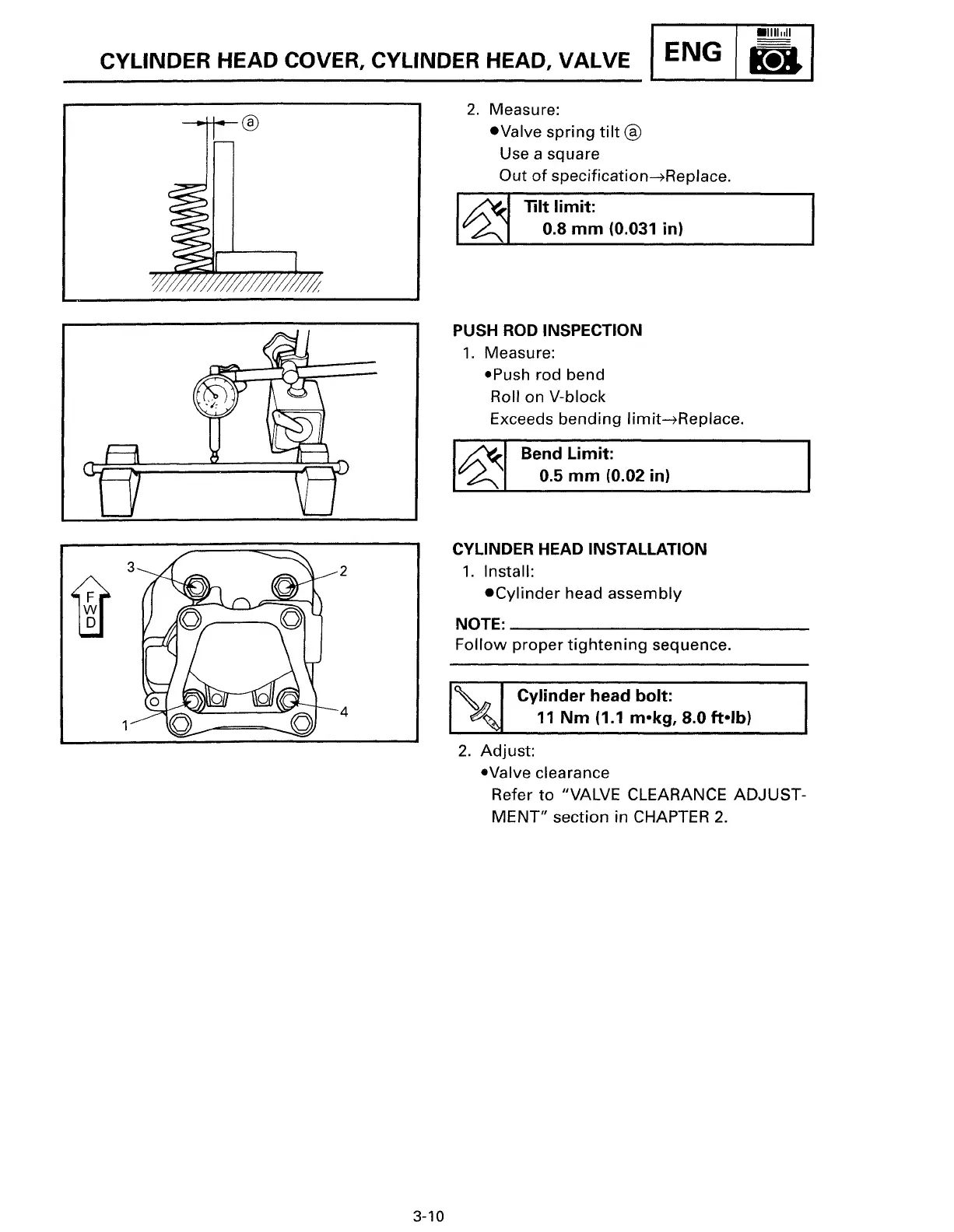

CYLINDER HEAD COVER, CYLINDER HEAD, VALVE
ENG 8
-~-®
2
4
3-10
2. Measure:
•Valve spring tilt@
Use a square
Out of specification~Replace.
I~
lilt limit:
0.8
mm (0.031 in)
PUSH ROD INSPECTION
1. Measure:
•Push rod bend
Roll on V-block
Exceeds
bending limit~Replace.
I~
Bend Limit:
0.5
mm (0.02 in)
CYLINDER HEAD INSTALLATION
1. Install:
•Cylinder head assembly
NOTE: ________________________ ___
Follow proper tightening sequence.
' Cylinder head bolt:
~~ 11 Nm (1.1 m•kg, 8.0 ft•lb)
2. Adjust:
•Valve clearance
Refer
to "VALVE CLEARANCE ADJUST-
MENT" section in CHAPTER 2.
