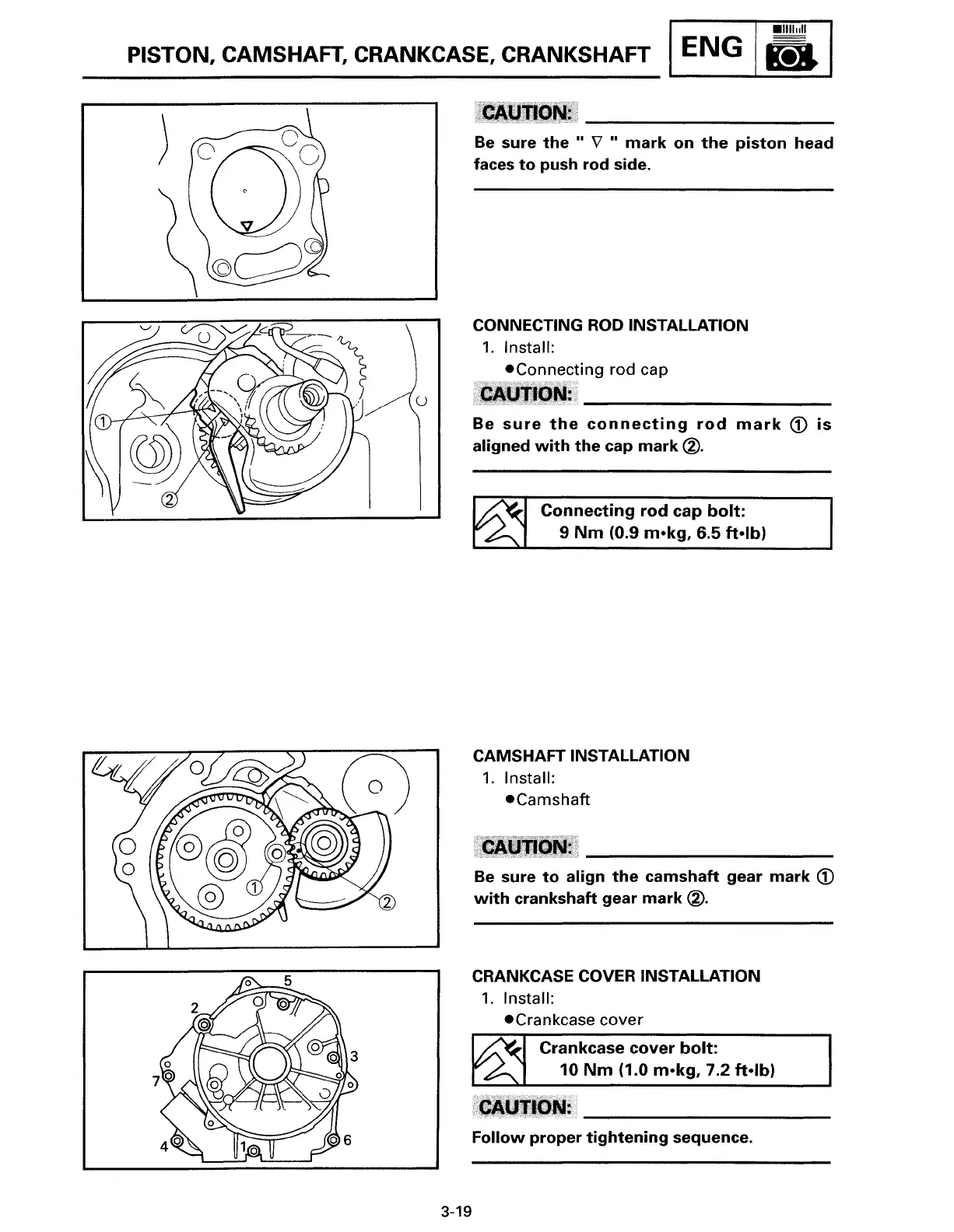

PISTON, CAMSHAFT, CRANKCASE, CRANKSHAFT ENG B
3-19
Be sure the II V II mark on the piston head
faces to push rod side.
CONNECTING ROD INSTALLATION
1. Install:
•Connecting rod cap
CAVrtoN:
--------------------
Be sure the connecting rod mark <D is
aligned with the cap mark ®.
Connecting rod cap bolt:
9 Nm (0.9 m•kg, 6.5 ft•lb)
CAMSHAFT INSTALLATION
1. Install:
•Camshaft
eiv'Jit~.,i· ________ _
Be sure to align the camshaft gear mark <D
with crankshaft gear mark ®.
CRANKCASE COVER INSTALLATION
1. Install:
•Crankcase cover
Crankcase cover bolt:
10 Nm (1.0 m•kg, 7.2 ft•lb)
Follow proper tightening sequence.
