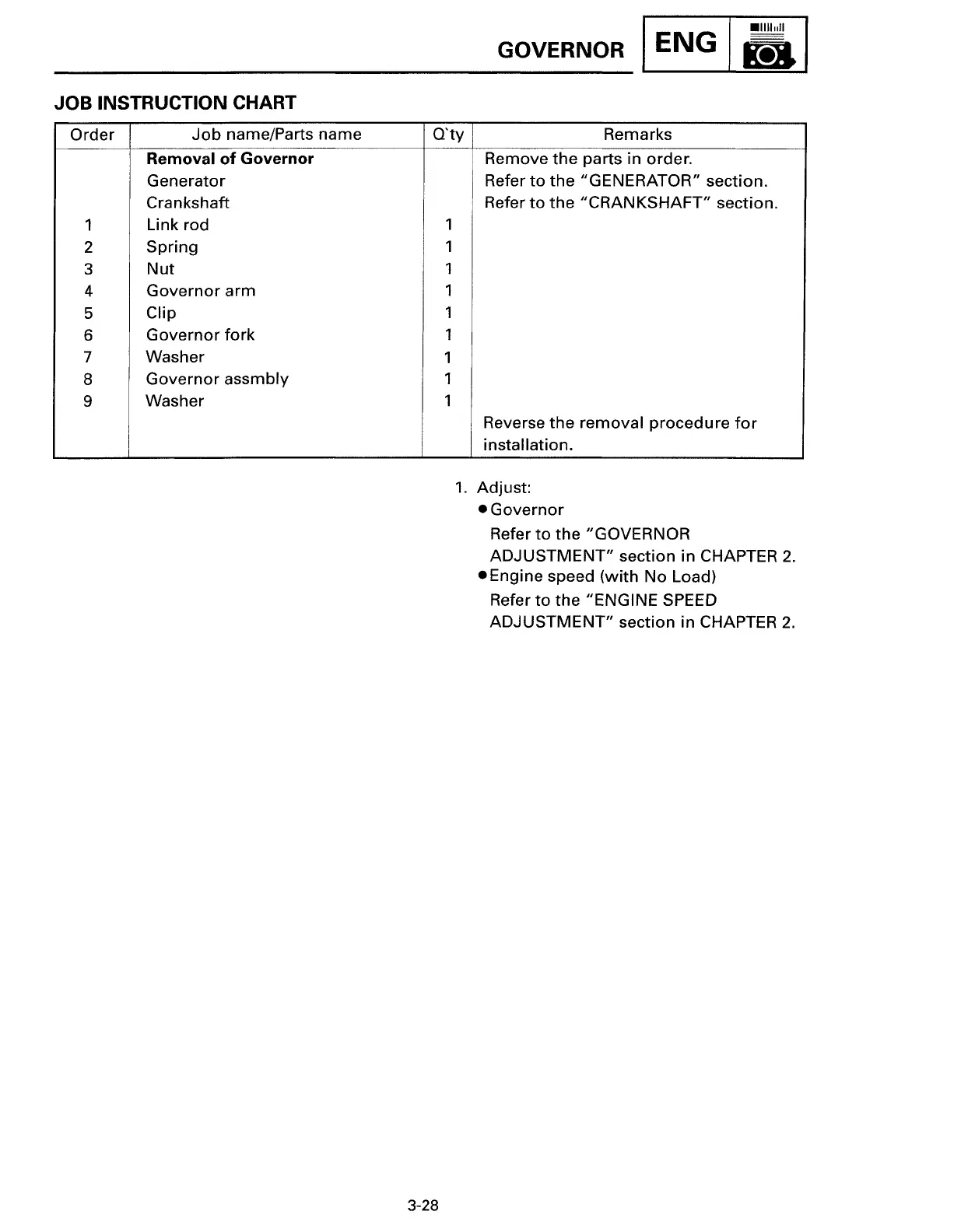

JOB INSTRUCTION CHART
Order
Job
name/Parts name
Removal
of
Governor
Generator
Crankshaft
1
Link rod
2
Spring
3
Nut
4
Governor
arm
5
Clip
6
Governor
fork
7 Washer
8
Governor
assmbly
9
Washer
GOVERNOR
ENG
O'ty
Remarks
1
1
1
1
1
1
1
1
1
3-28
Remove
the
parts in order.
Refer
to
the
"GENERATOR" section.
Refer
to
the
"CRANKSHAFT"
section.
Reverse
the
removal
procedure
for
installation.
1.
Adjust:
•Governor
Refer
to
the
"GOVERNOR
ADJUSTMENT"
section
in
CHAPTER
2.
• Engine speed
(with
No
Load)
Refer
to
the
"ENGINE SPEED
ADJUSTMENT"
section in CHAPTER
2.
